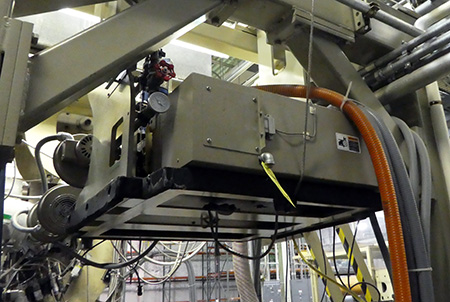

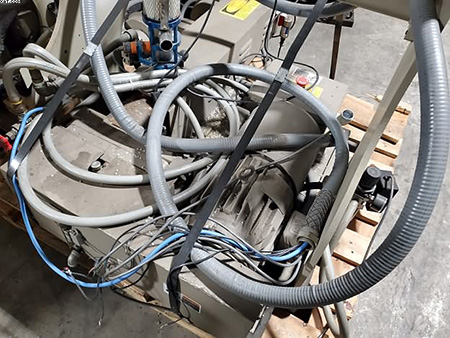

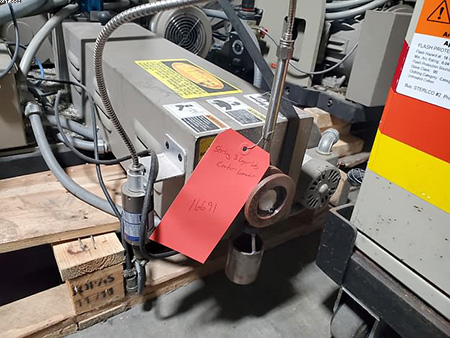

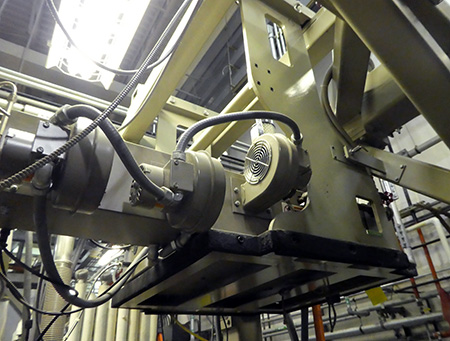

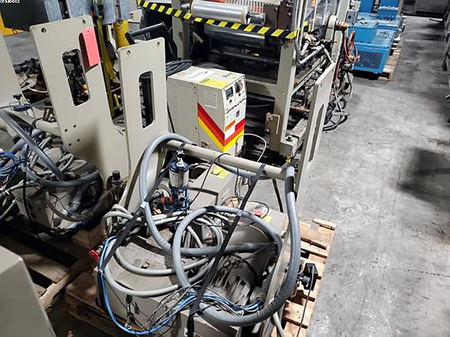

Used 1.25" Wayne Extruder

Wayne 1.25" Extruder

• — Model / type: Used Wayne extruder, 1.25" screw diameter, 24:1 L/D
• — Output capacity: Up to 25 lbs per hour at 125 rpm (typical 5 — 10 lbs per hour)
• — Motor / drive: 5 HP motor with drives mounted in portable cabinet
• — Temperature / pressure ratings:
  • — Maximum barrel temperature: 575°F
  • — Maximum pressure: 6500 psi at 750°F
• — Melt pipe: 0.075" inside diameter
• — Barrel heating: 3 heat zones, air-cooled
• — Mounting / construction: Mounted on steel plate

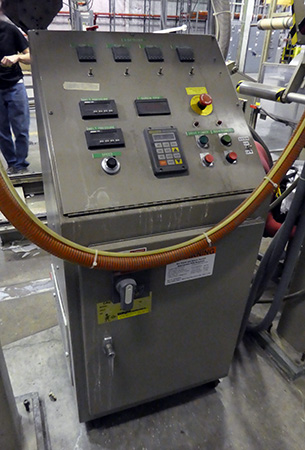

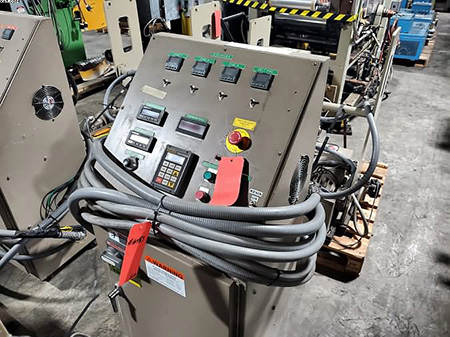

• — Controls: Drives and temperature controls in portable cabinet
• — Condition: Used
