Used 2400mm Nordson BC 62 Porous Coat System

Nordson BC 62 Porous Coat System Coating Head

• — Product type: Used porous coat system coating head for hot melt adhesive application on breathable woven and non-woven goods and other porous substrates
• — Coat weight range: 0.85 - 60 gsm
• — Coating width range: 1400 - 2400 mm (65 mm increments), with potential reduction down to 500 mm
• — Electrical: 400 V, 50/60 Hz
• — Coating head and stand:
  • — Nordson BC 62 porous coat system coating head
  • — Model FC 1260 coating stand
• — Rolls:

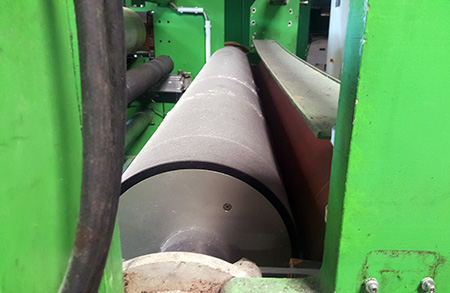

  • — 340 mm diameter silicone-covered coating roll (driven)
  • — 340 mm backing roll
  • — Spreader roll
  • — Spare silicone-covered roll
• — Coating applicator and pumps:

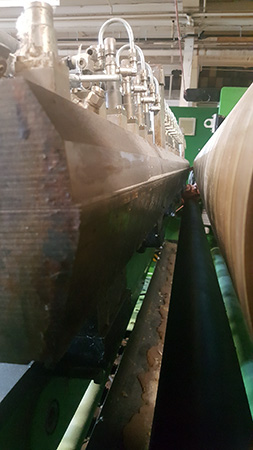

  • — PC BC62-12/2490 12-zone coating applicator with 24 heads
  • — GP 200-12/4 metering pump station with 12 pumps and hoses to the die
• — Melters and tanks:

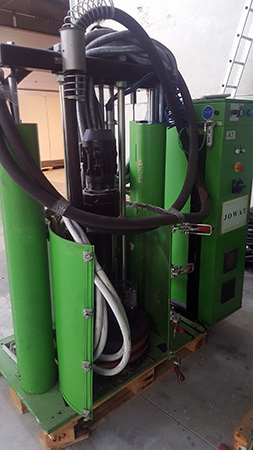

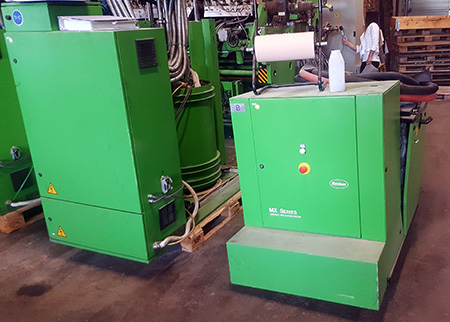

  • — BM 200 bulk melter
  • — MX 44110 melt tank
• — Heated hoses:
  • — Model TC80-20K heated hose
  • — Model TC60-20K heated hose
  • — Model TC12-8K heated hose
• — Controls and drives:

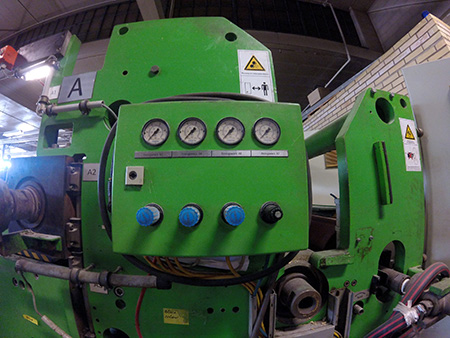

  • — Operator control panel
  • — Siemens PLC
  • — Lenze motors and drives
• — Condition: Used
