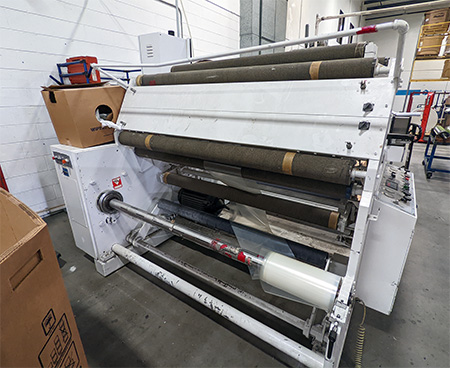

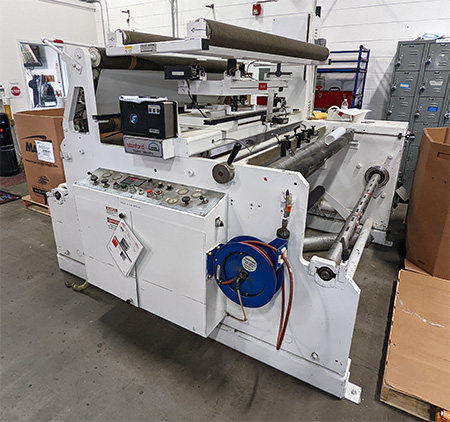

Used 60" Stanford 252 FW Reversible Doctor Machine

Used Stanford 252 FW 60" Reversible Salvage Rewinder

• — Manufacturer / model: Stanford 252 FW reversible salvage rewinder
• — Web width: 60 inches
• — Unwind:
  • — Single-position doctor/salvage unwind
  • — Maximum roll diameter: 30 inches
  • — 3-inch lug type air shaft
  • — Air-operated rider roll
• — Rewind:
  • — Simplex center wind rewind
  • — Maximum roll diameter: 30 inches
  • — 3-inch lug type air shaft
  • — Air-operated rider roll
• — Speed / capacity: Up to 2000 feet per minute
• — Slitting / trimming:

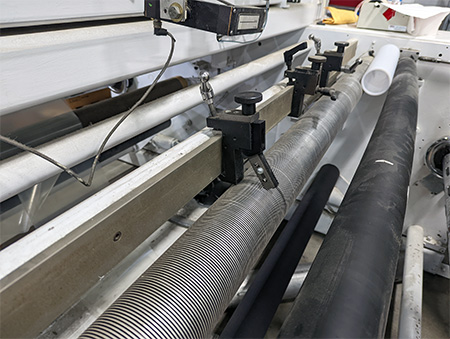

  • — Razor in grooved roll edge trimming / slitting
  • — Three razor holders
  • — Bowed roll
• — Web guiding:

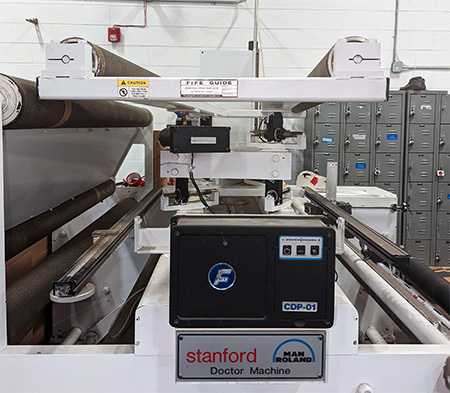

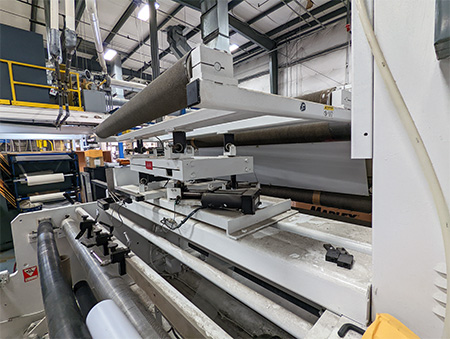

  • — Fife CDP-01 offset pivot edge guide
  • — Protrac 100-2 sensor
• — Tension control:
  • — Dynaweb automatic dancer tension control with taper tension
• — Electrical / drive:
  • — CMC drive system

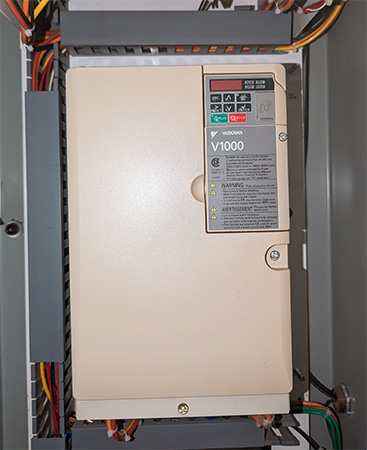

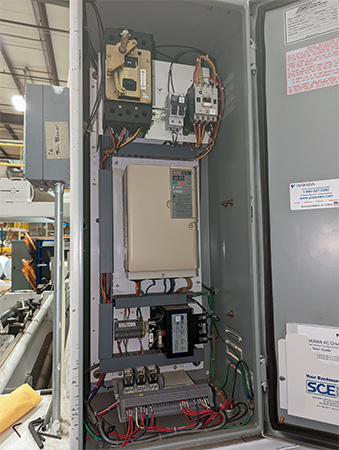

  • — 20 HP Yaskawa V1000 AC drive
  • — Electrical: 460 V, 3 phase, 60 Hz
  • — Full load current: 34 amps with 50 amp disconnect

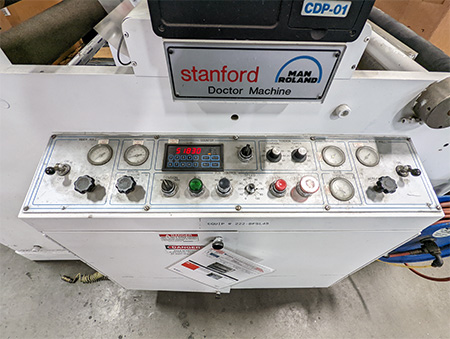

• — Controls / instrumentation:

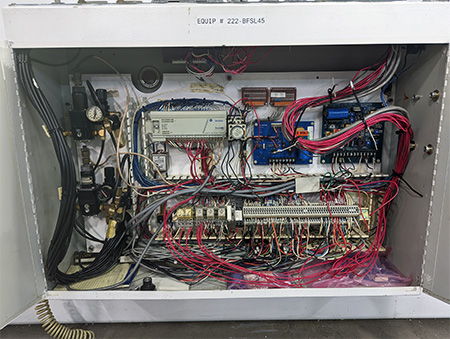

  • — Allen-Bradley MicroLogix PLC
  • — Durant counter
  • — Splice board area
• — Included shafts:
  • — Spare 3-inch lug type air shaft
  • — Two 6-inch lug type air shafts
• — Condition: Used
