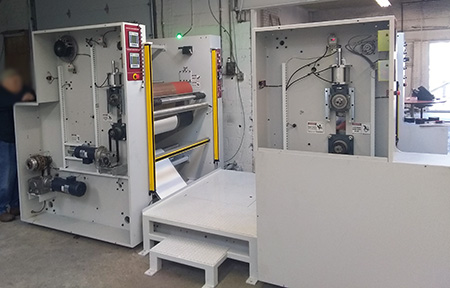

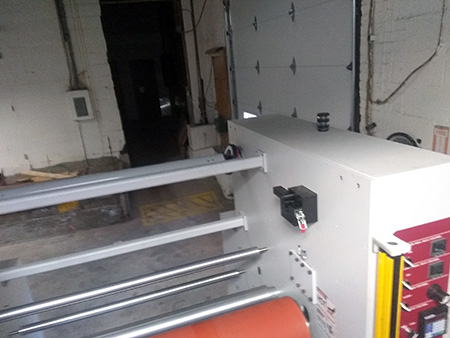

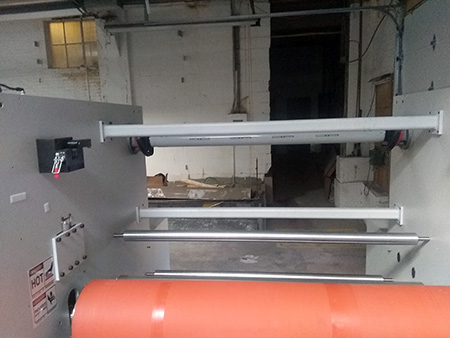

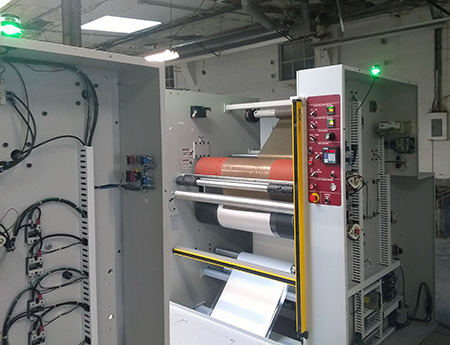

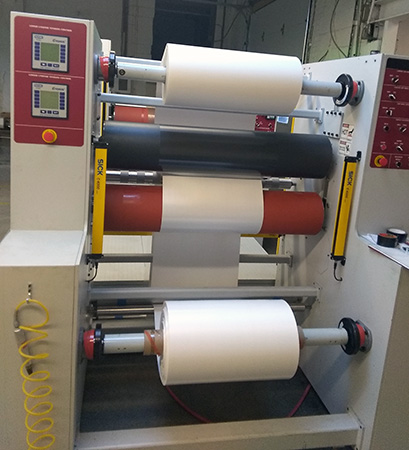

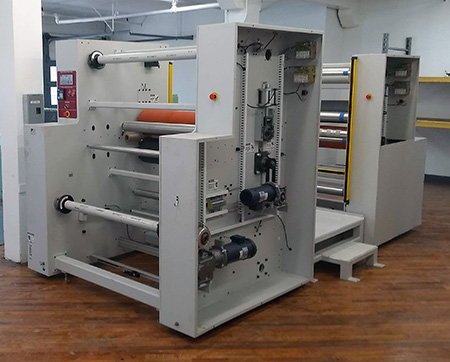

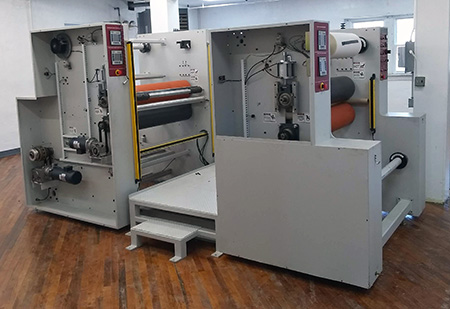

Used 62" AGL 64 Industrial Laminator

Used 62" AGL 64 Industrial Laminator

• — Condition: Used industrial laminator equipped with multiple unwinds and shafted rewind for high-capacity laminating
• — Maximum mechanical speed: 80 feet per minute
• — Laminating tension range: 0.25 - 1.0 PLI
• — Electrical: 220 volts, single phase, 50/60 Hz
• — Unwinds:
  • — Three integral shafted unwinds
  • — 30" maximum roll diameter unwind with 3" air shaft, safety chucks, pneumatic brakes
  • — 24" maximum roll diameter unwind with 3" air shaft, safety chucks, pneumatic brakes
  • — 18" maximum roll diameter unwind with 3" air shaft, safety chucks, pneumatic brakes
  • — Transducer-based tension control on unwinds
• — Laminating nip and rolls:
  • — Pneumatically loaded nip assembly
  • — Top and bottom laminating rolls: 64" face width x 10" diameter
  • — Silicone-covered rolls with 50 Shore "A" durometer silicone covering
  • — Internally heated laminating rolls with 10,000 Watt internal heater per roll
  • — Master/slave drive assembly for nip roll nip control
• — Rewind:
  • — 36" maximum roll diameter shafted rewind
  • — 3" cores with safety chucks
  • — Roll diameter sensor on rewind
  • — Taper tension control at rewind with follower drive
• — Guiding and controls:
  • — Magpowr Cygnus edge guide system
  • — Edge guide controls integrated with laminator
• — Construction and safety features:
  • — Catwalk platform for operator access
  • — Safety light curtain system
