Used Sung An Machinery Coater Laminator

Sung An Machinery (SAM) Coater Laminator

• — All software for the line has been backed up and saved along with all passwords.
• — Manufacturer: Sung An Machinery (SAM)
• — Year: 2010
• — Environment: Previously located in clean room
• — Web width: 6 - 30 inches
• — Line speed: 3 - 110 FPM
• — Thread speed: 15 FPM
• — Tension range: 5 - 80 lbs (primary); 5 - 150 lbs (secondary unwind)
• — Electrical: 415V / 3 phase / 50 Hz

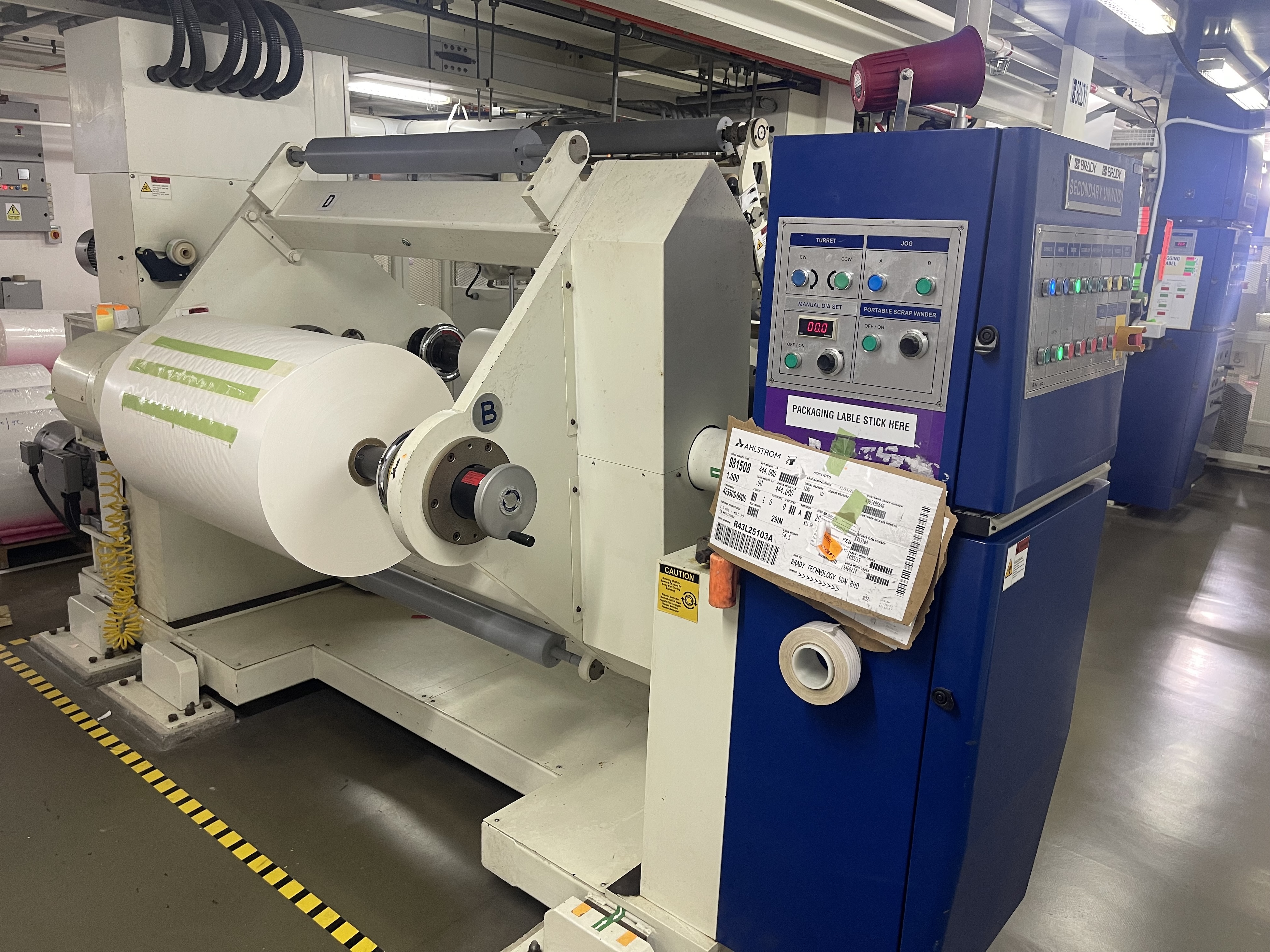

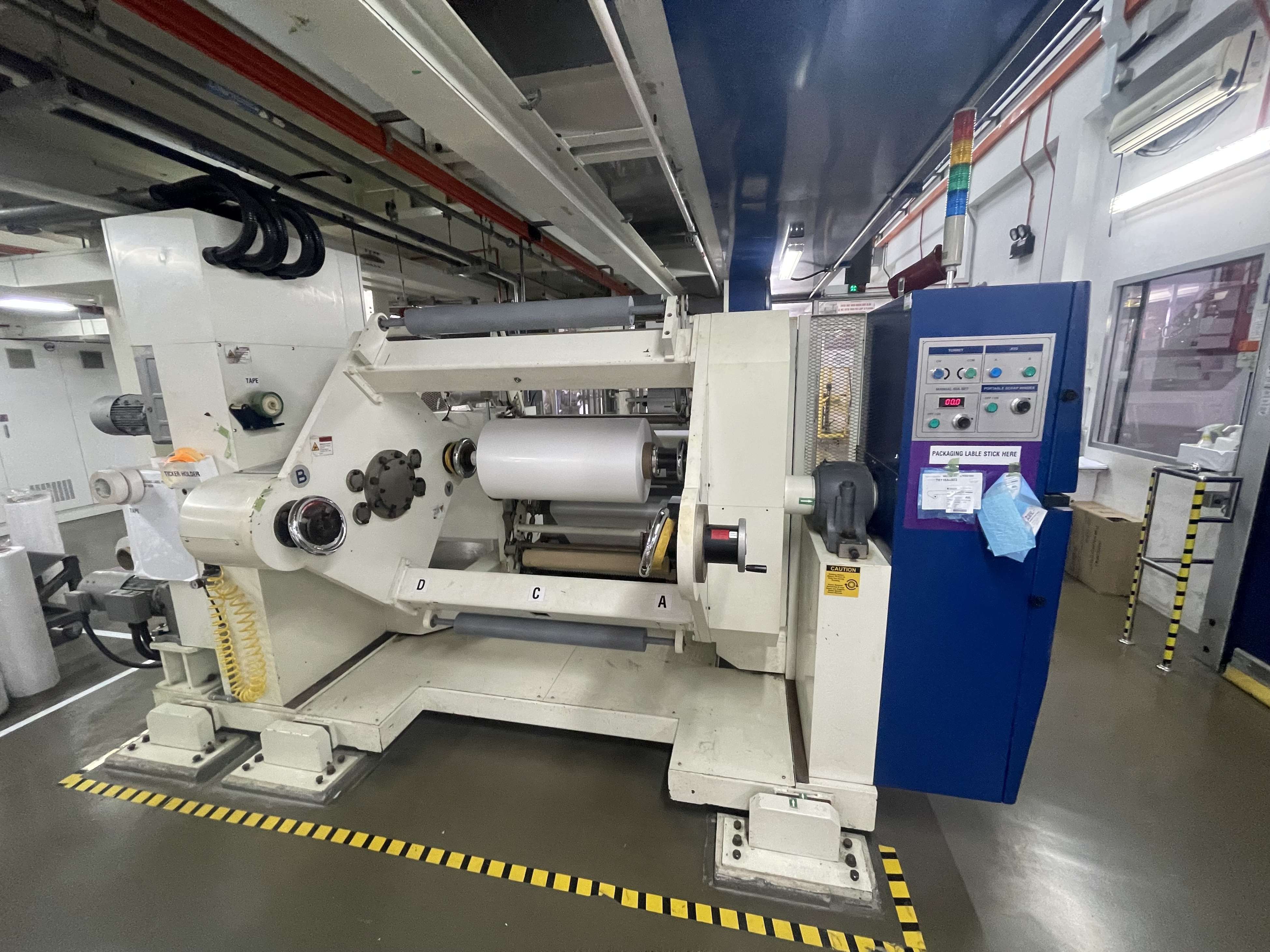

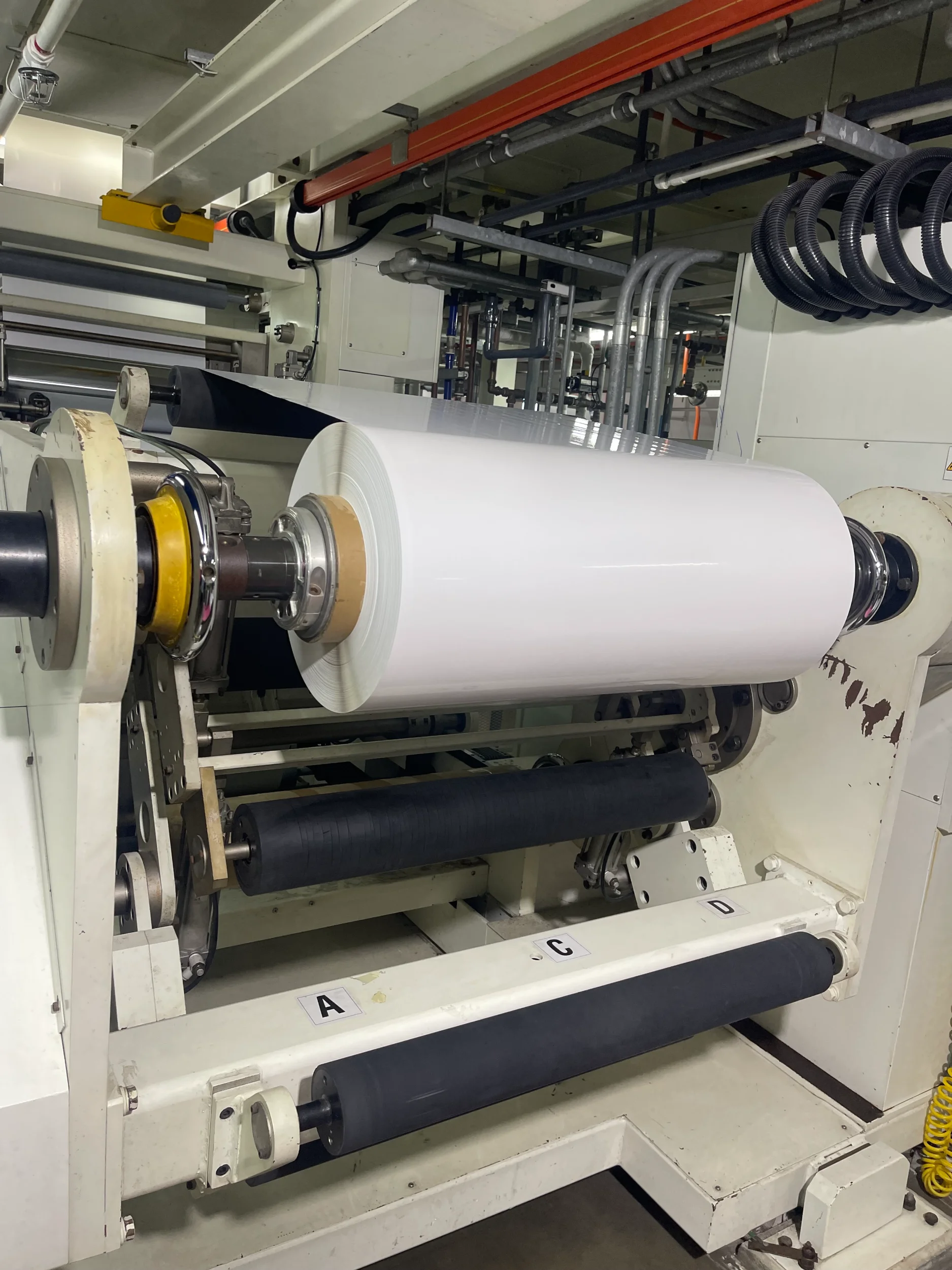

• — Primary unwind:
  • — Phantom axis turret, 30 inch maximum diameter
  • — 3 inch and 6 inch air shafts
  • — Regenerative drives
  • — Dual direction manual splice

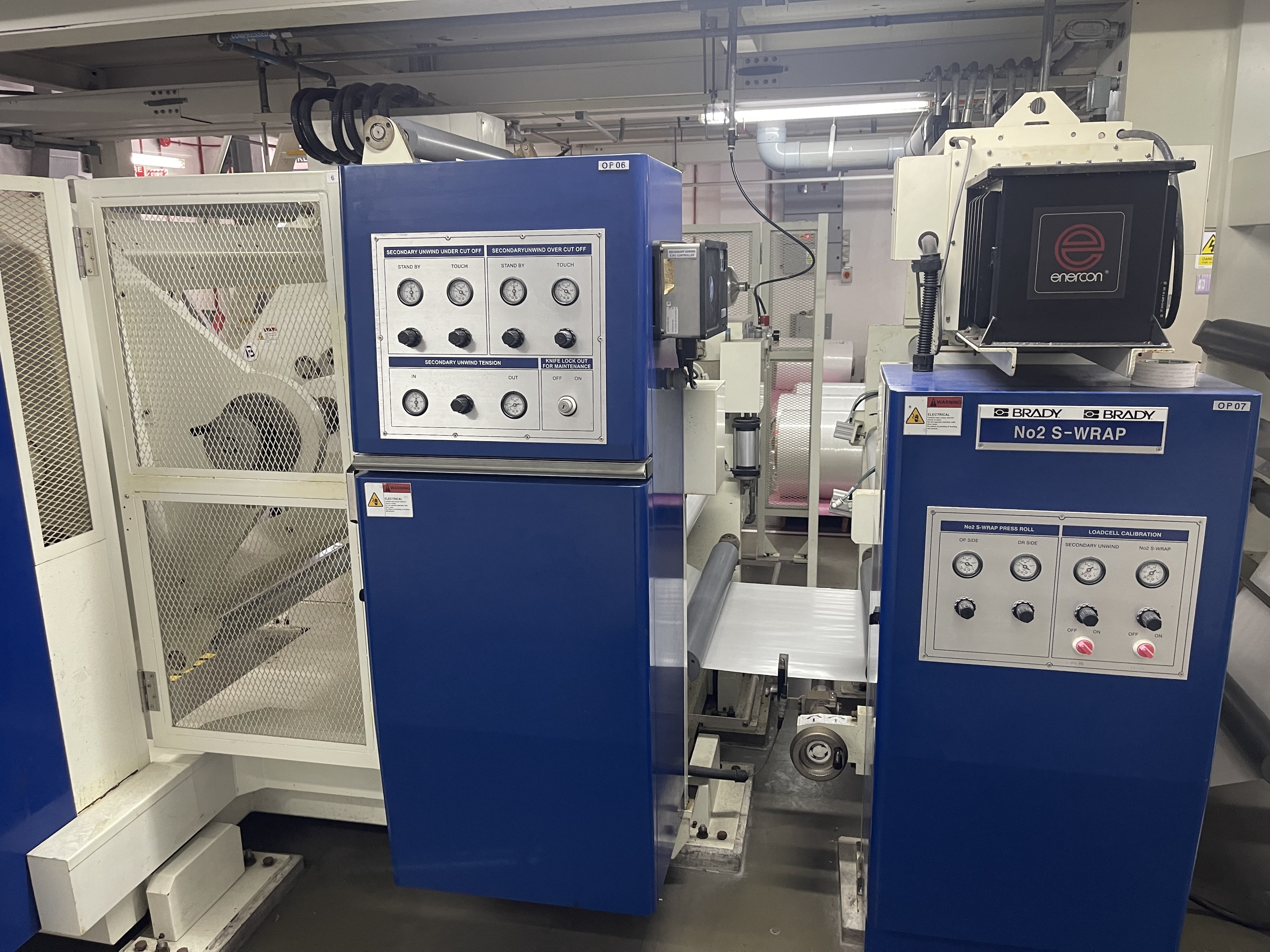

• — Corona treater: 1.5 kW Enercon

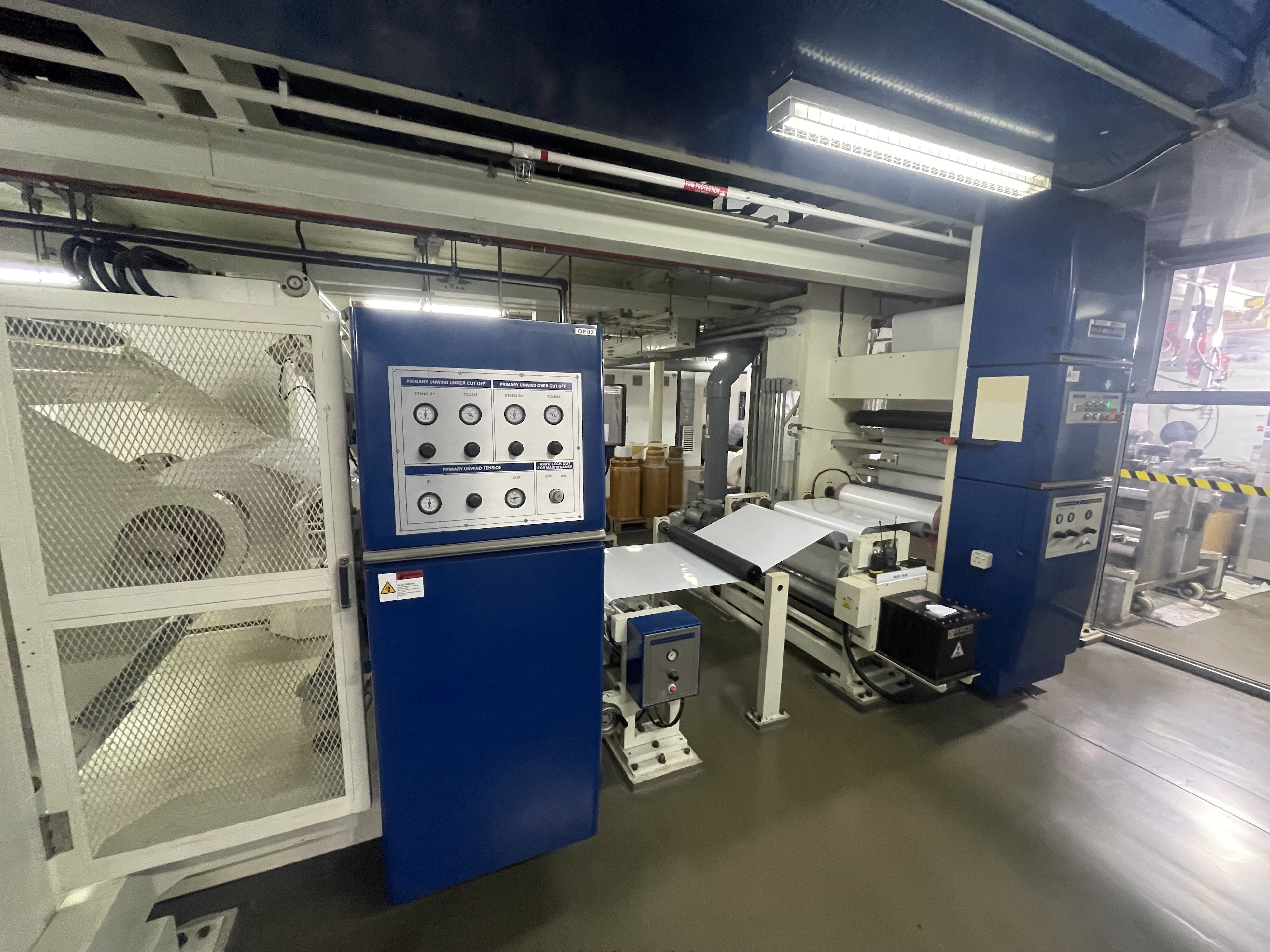

• — Web handling:

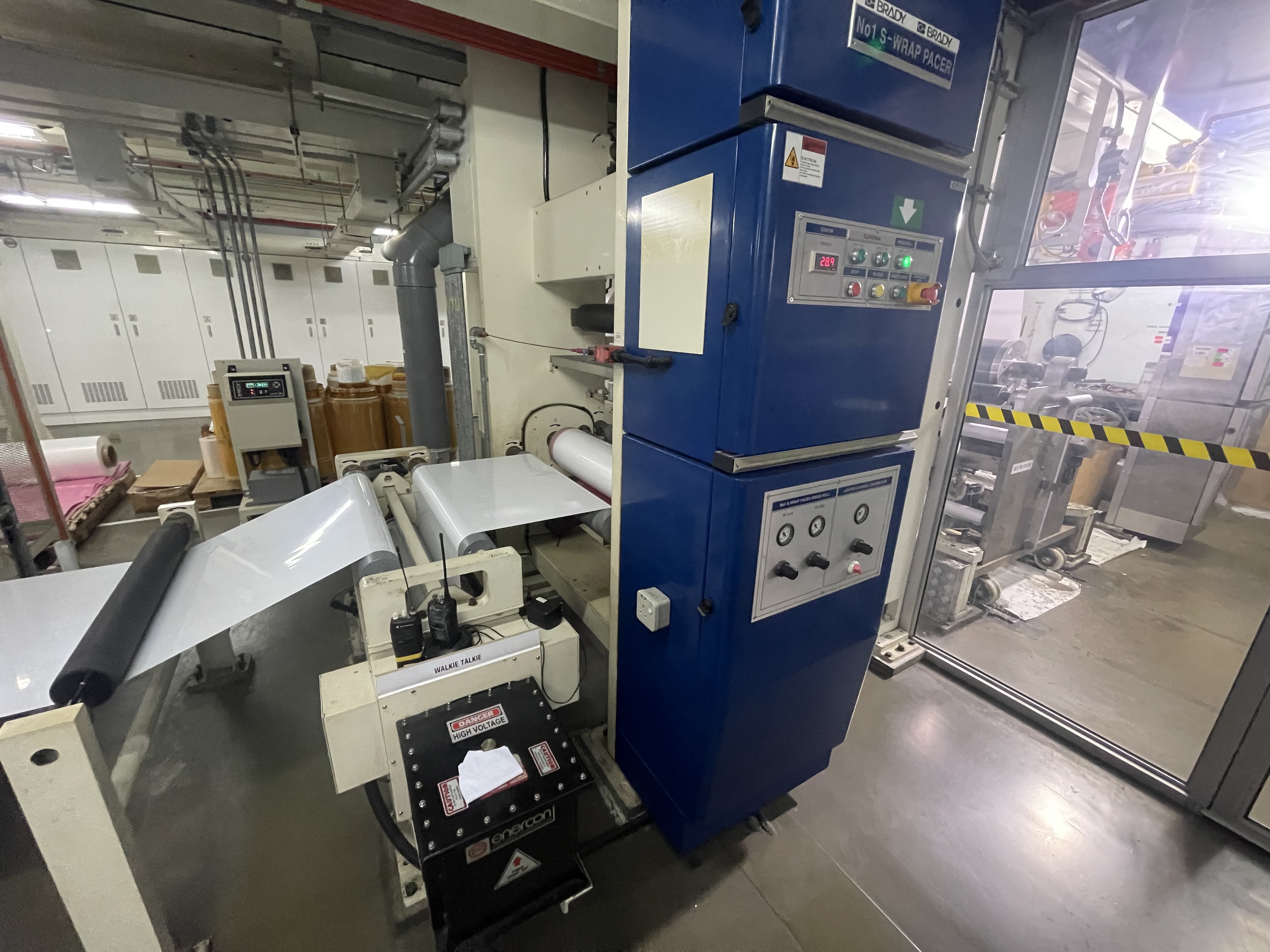

  • — S-wrap pull roll
  • — Two web cleaners

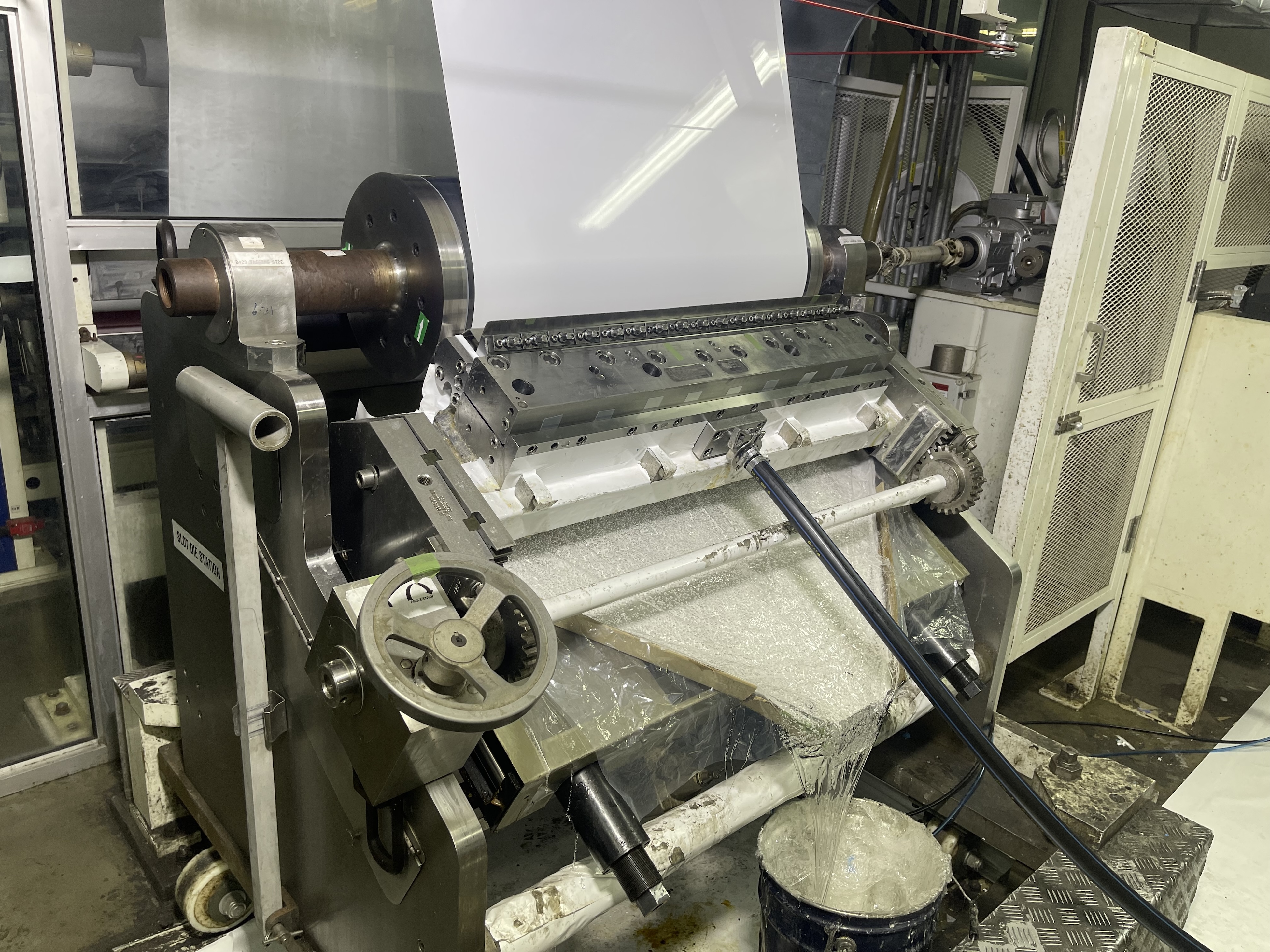

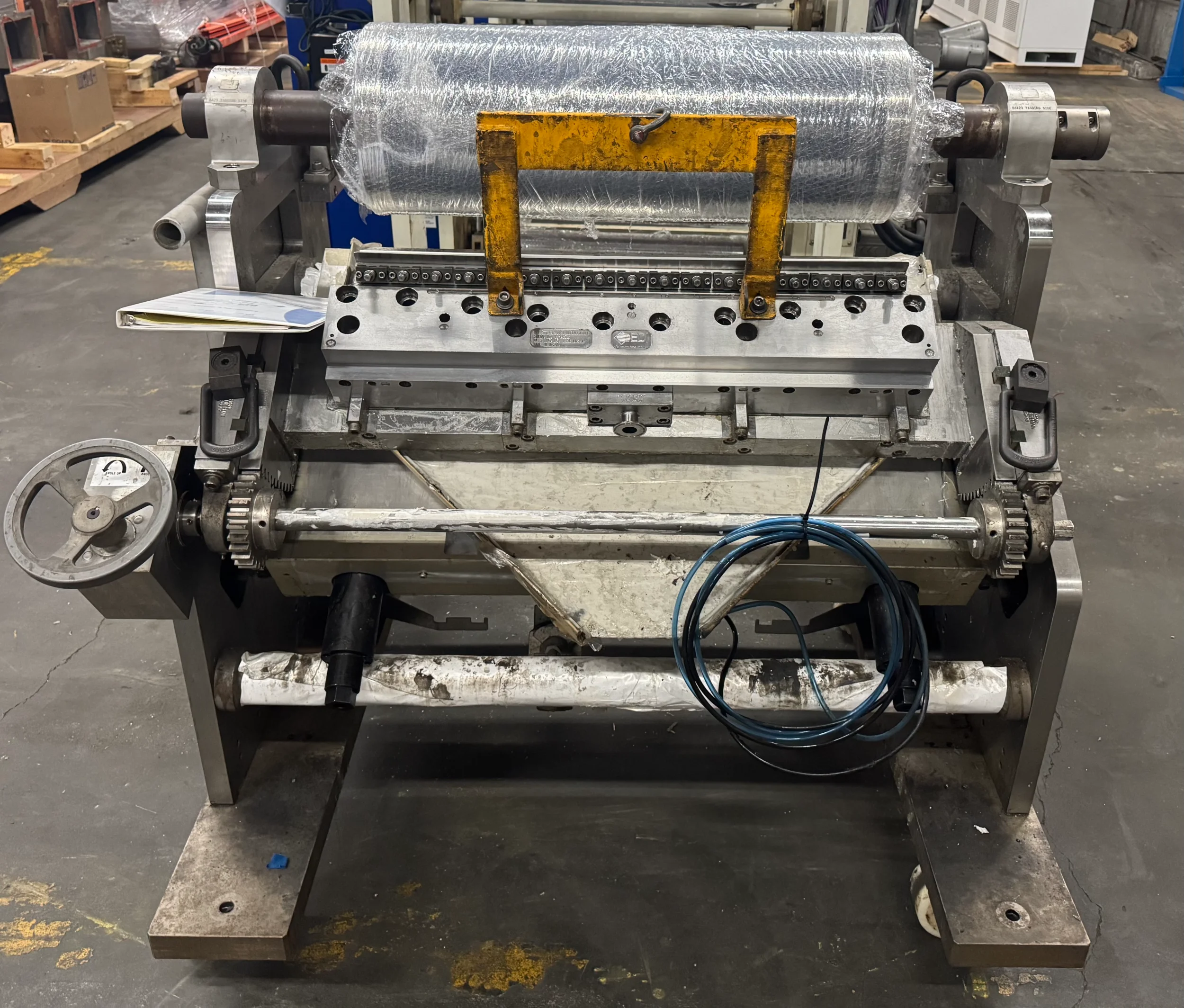

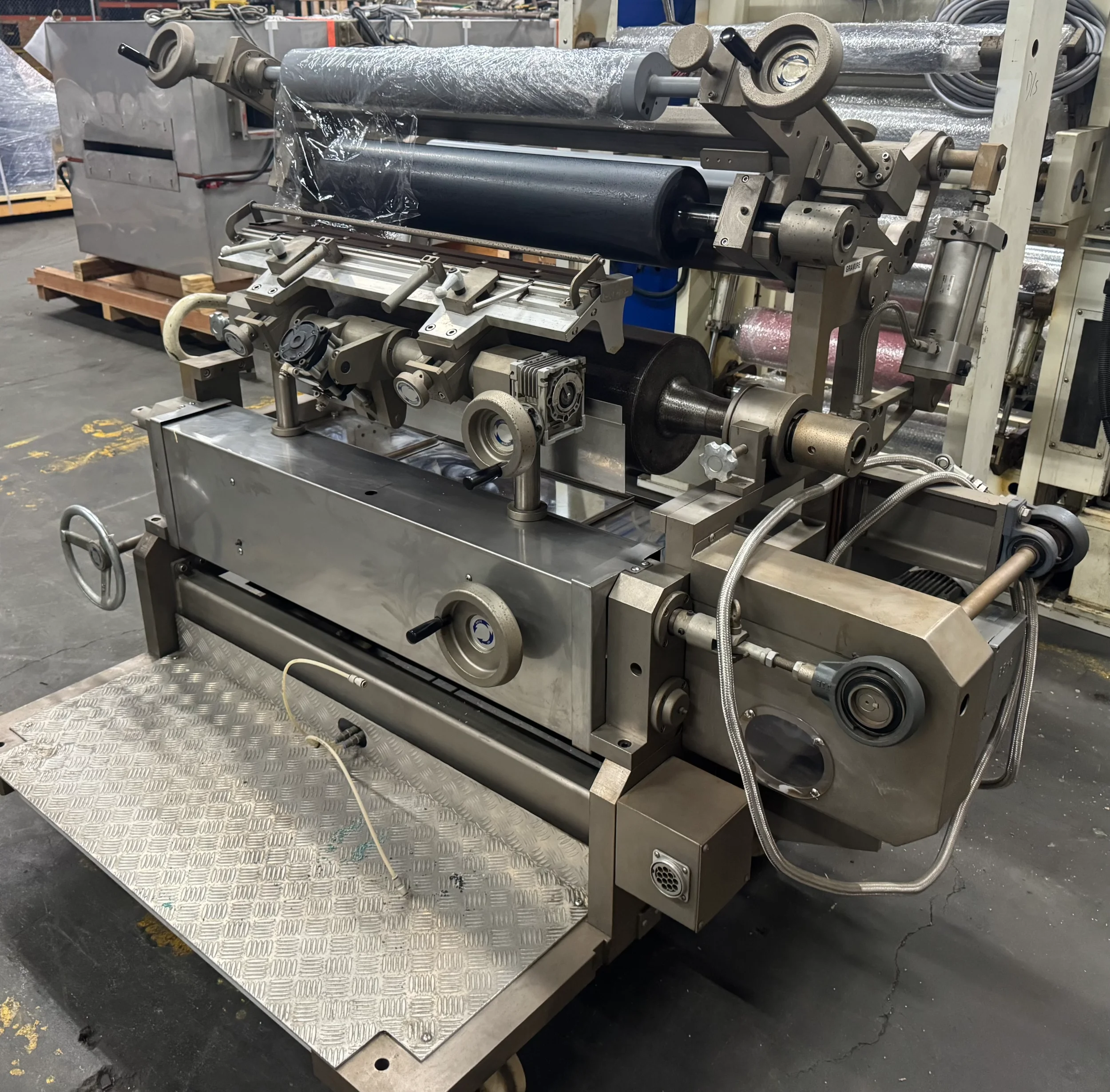

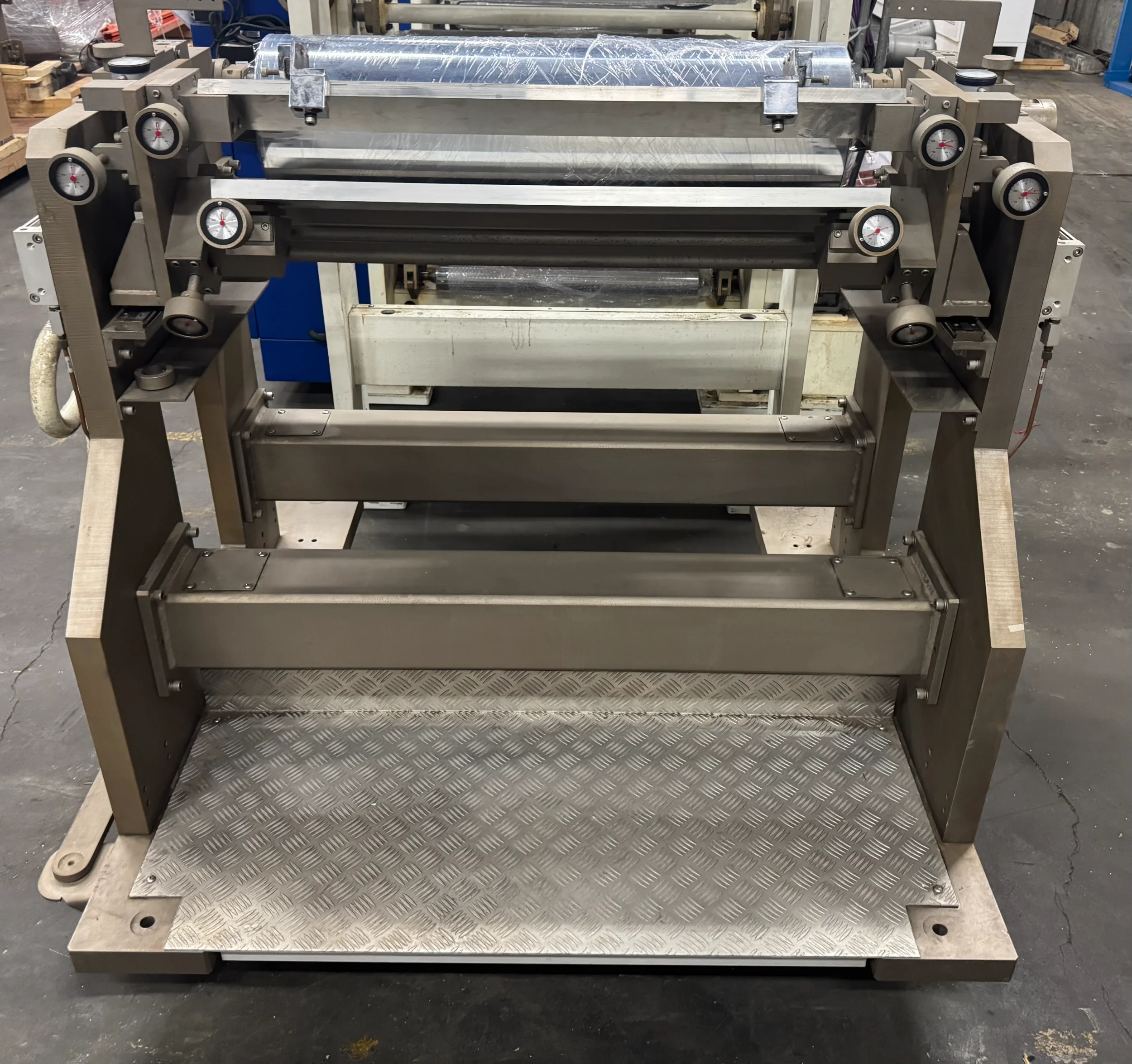

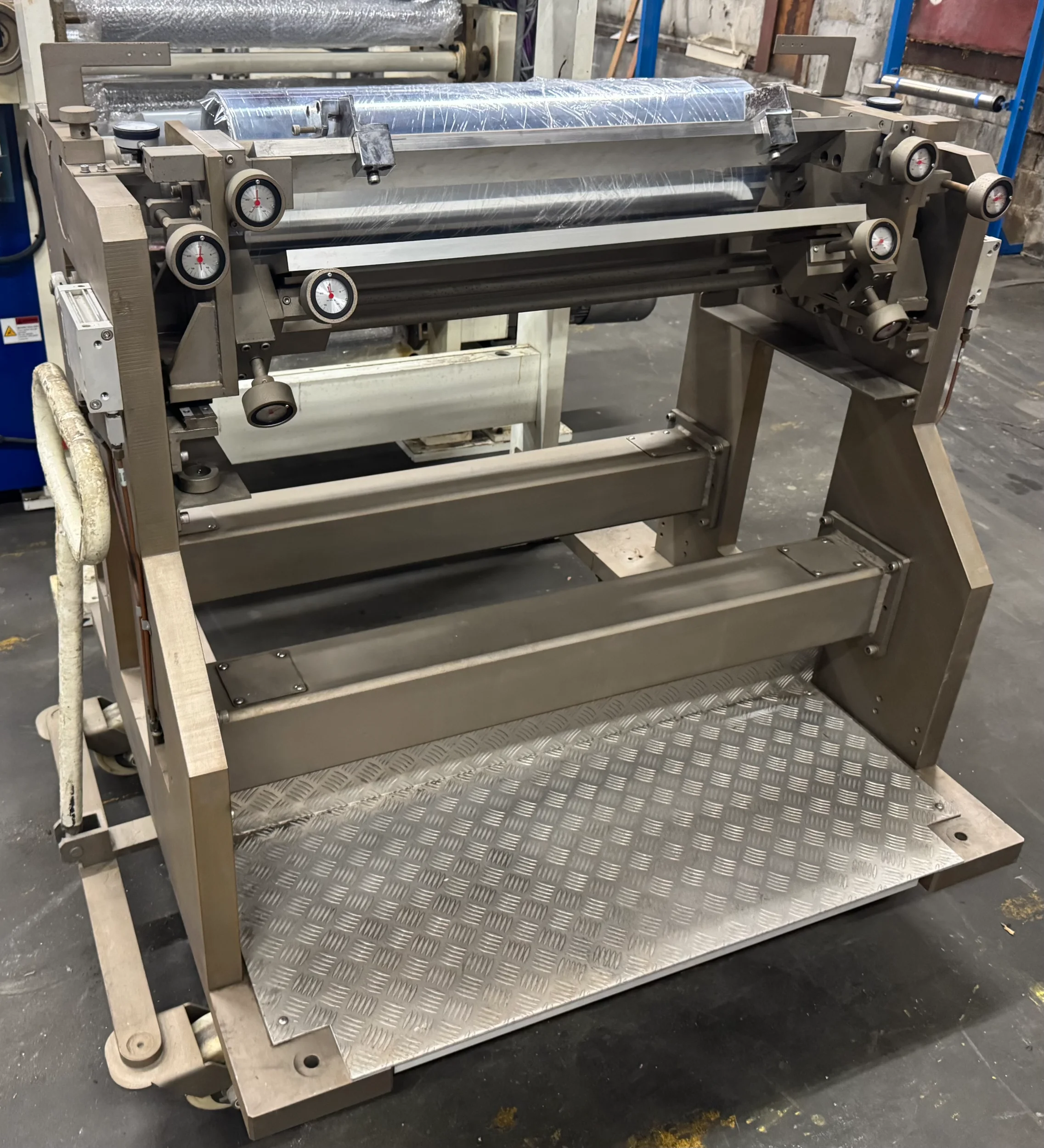

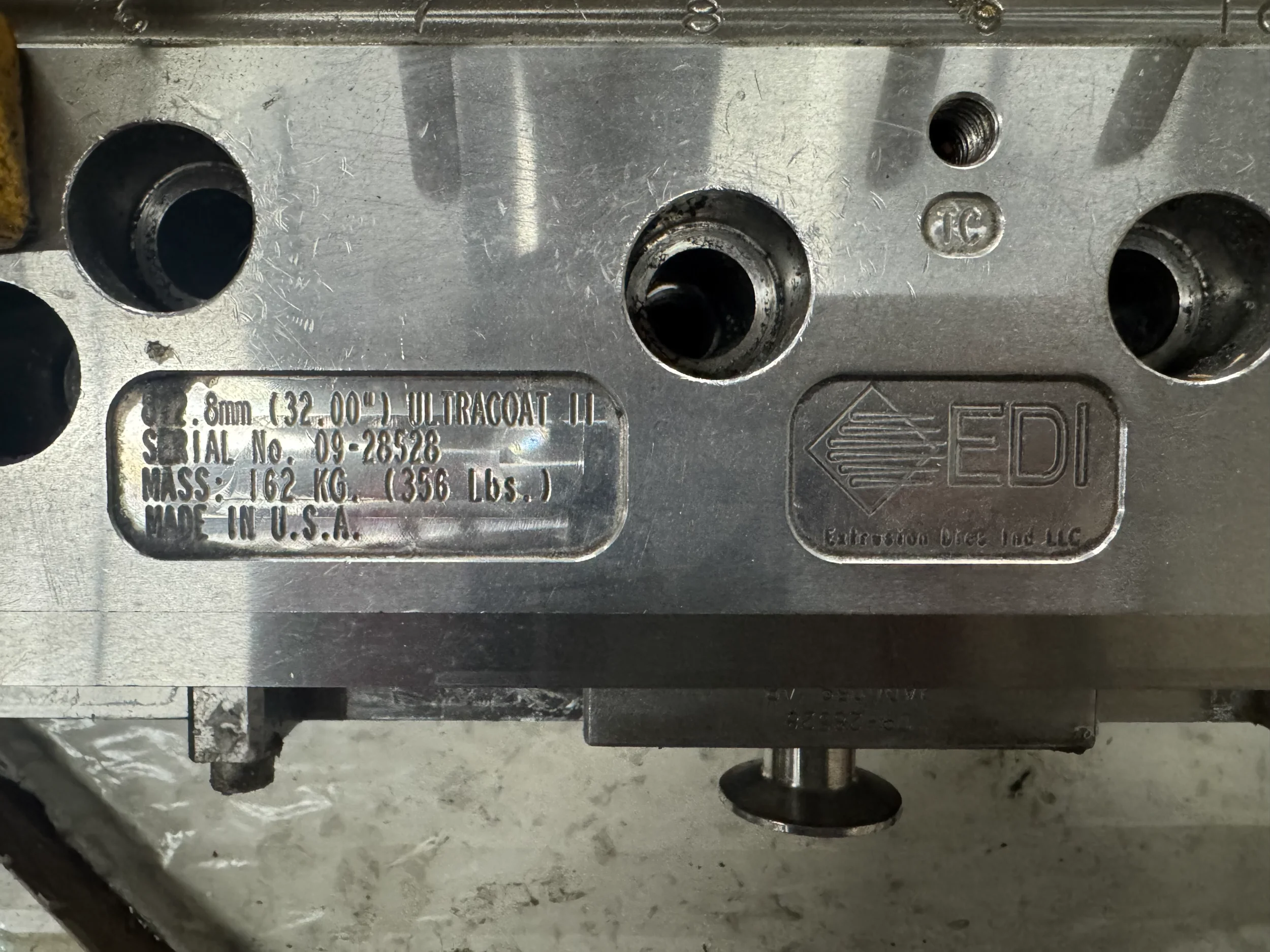

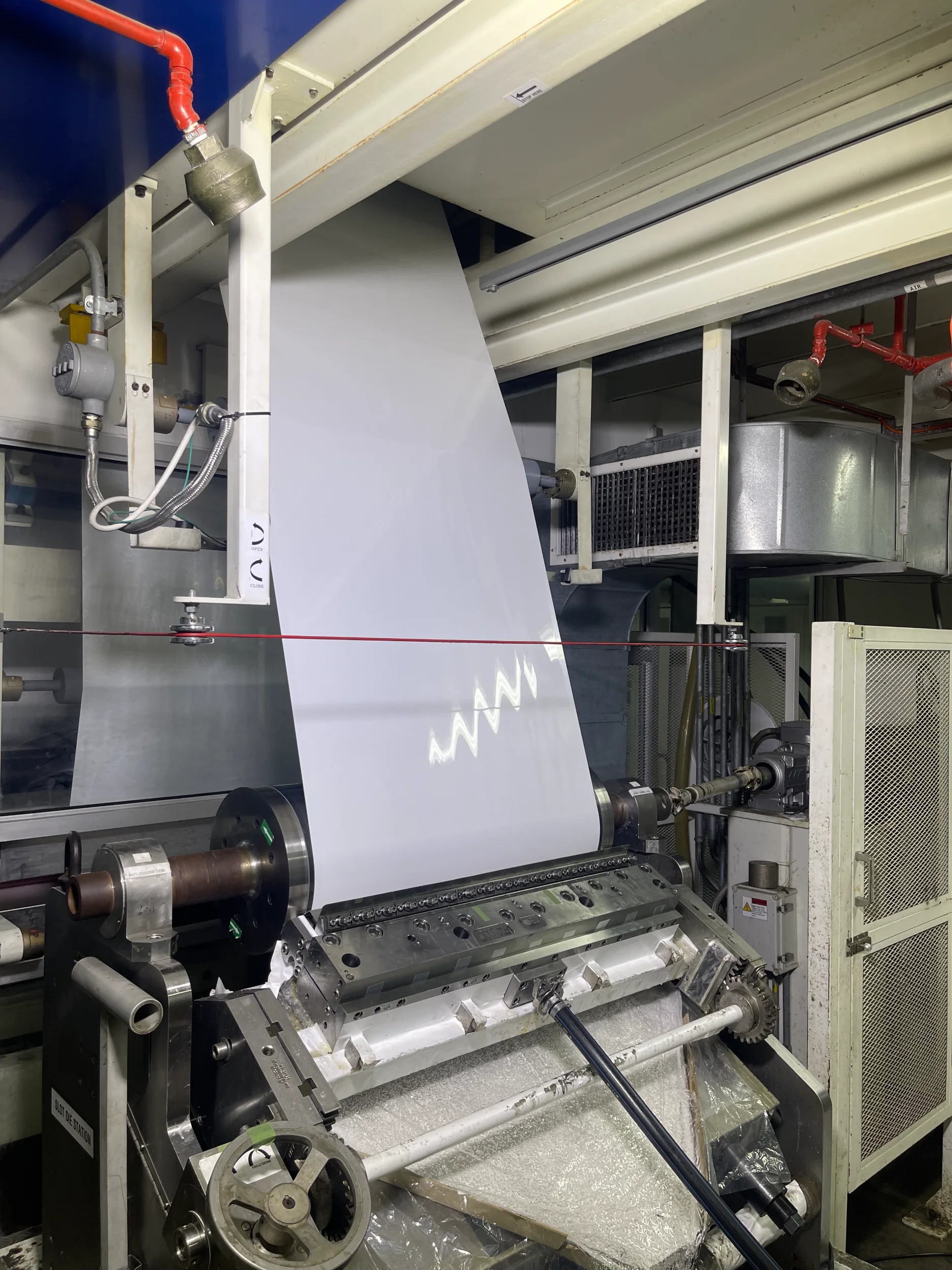

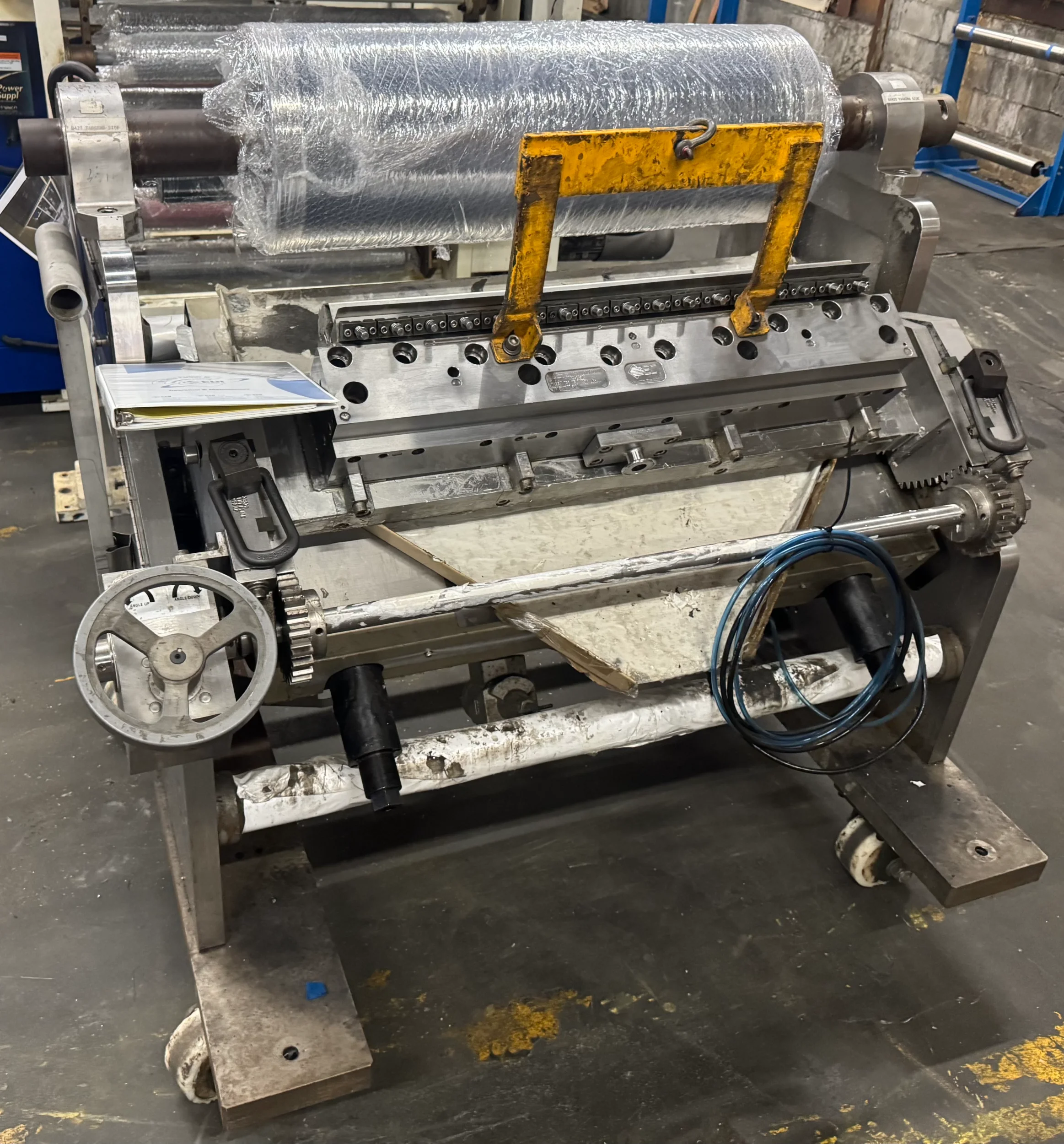

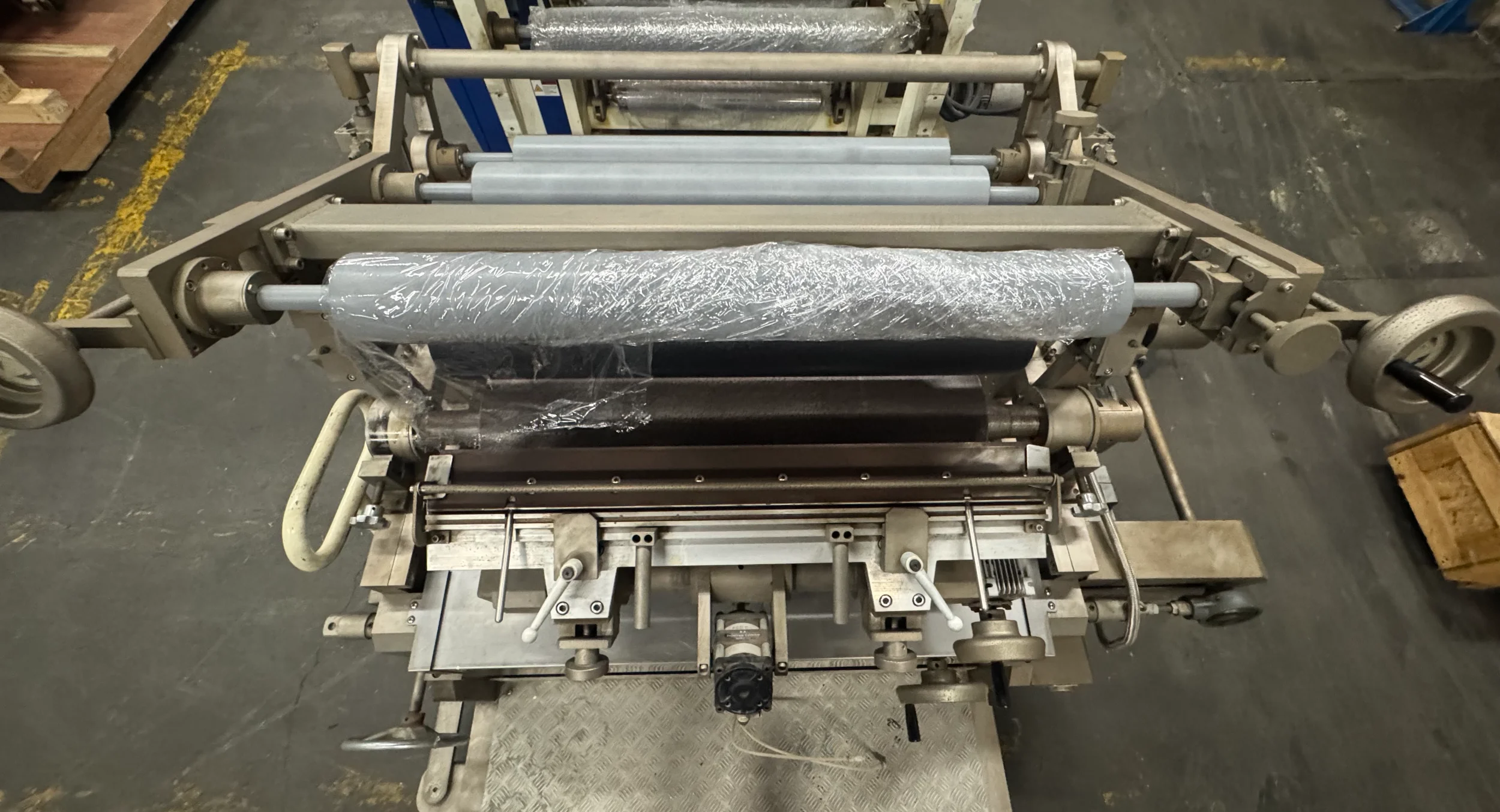

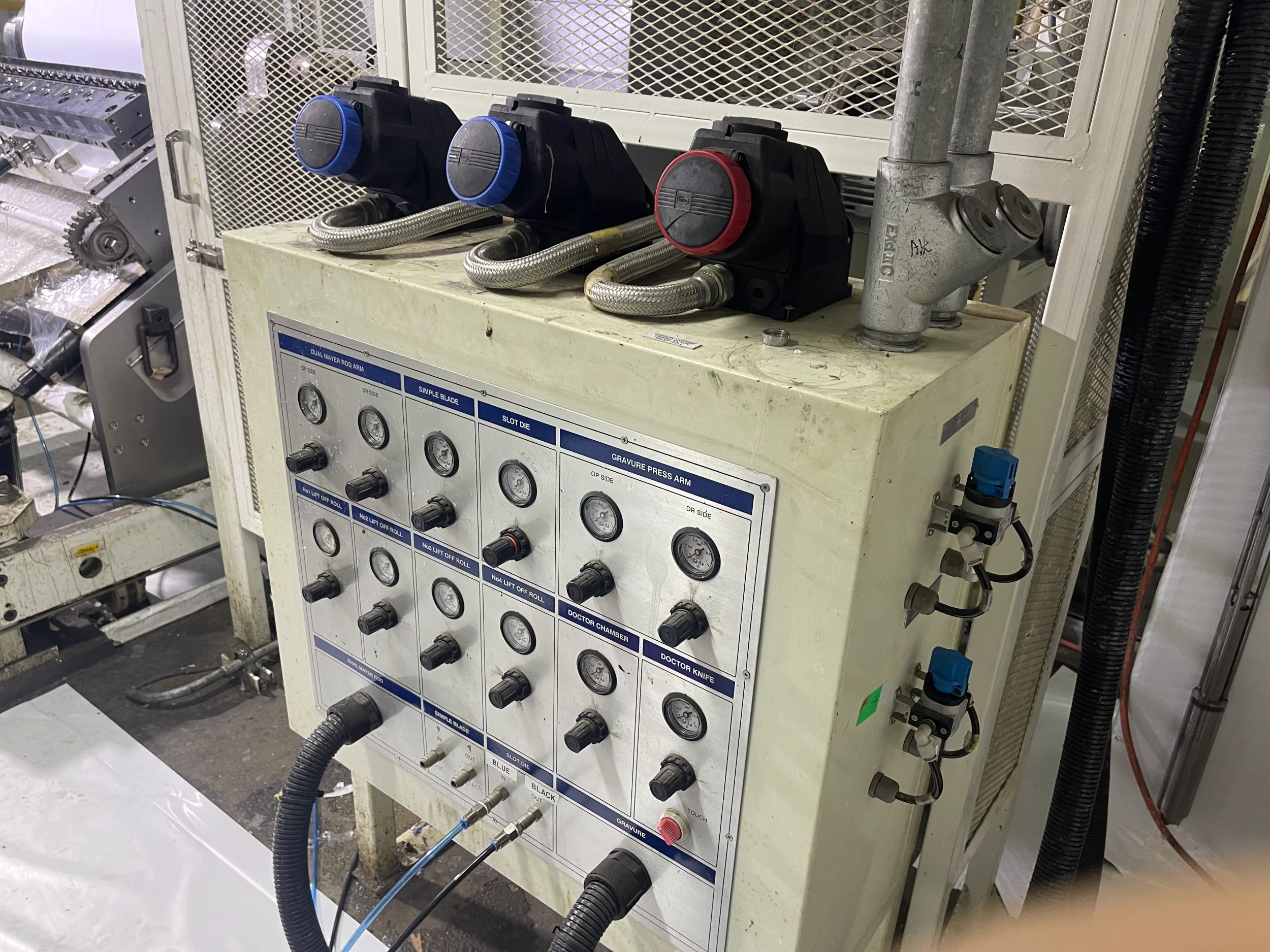

• — Cartridge coating head:
  • — Four trolleys

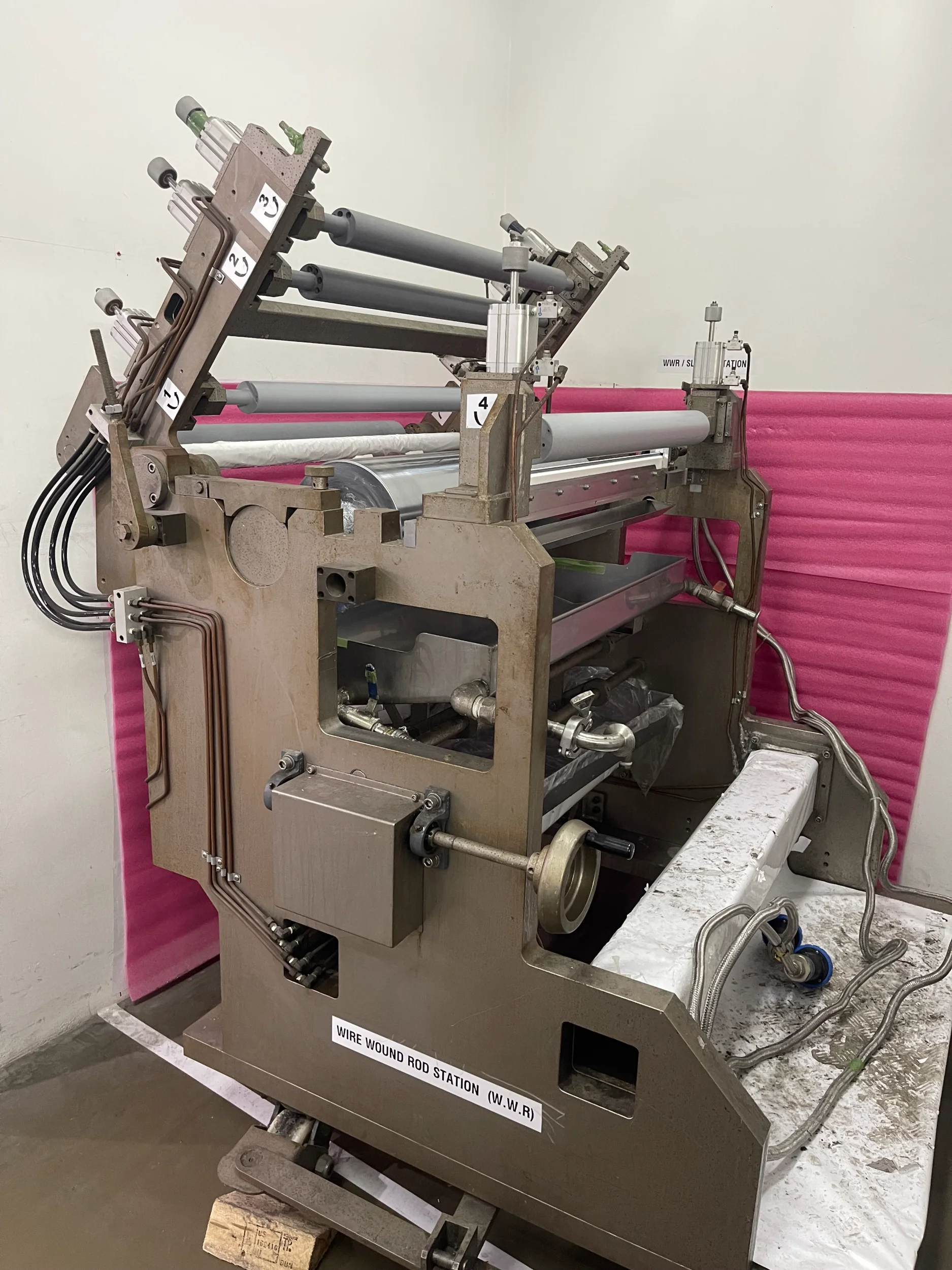

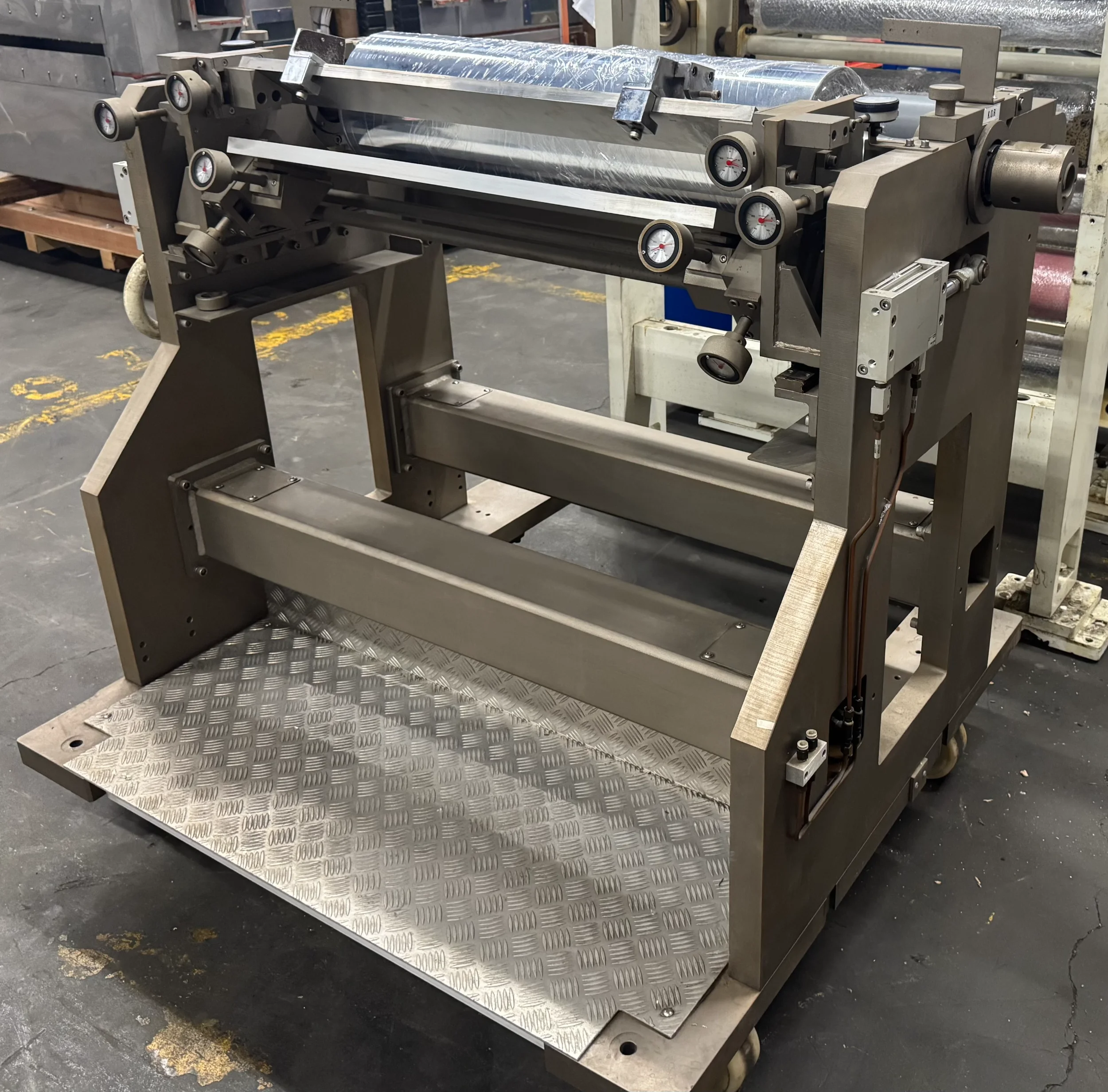

  • — Dual Mayer rod trolley

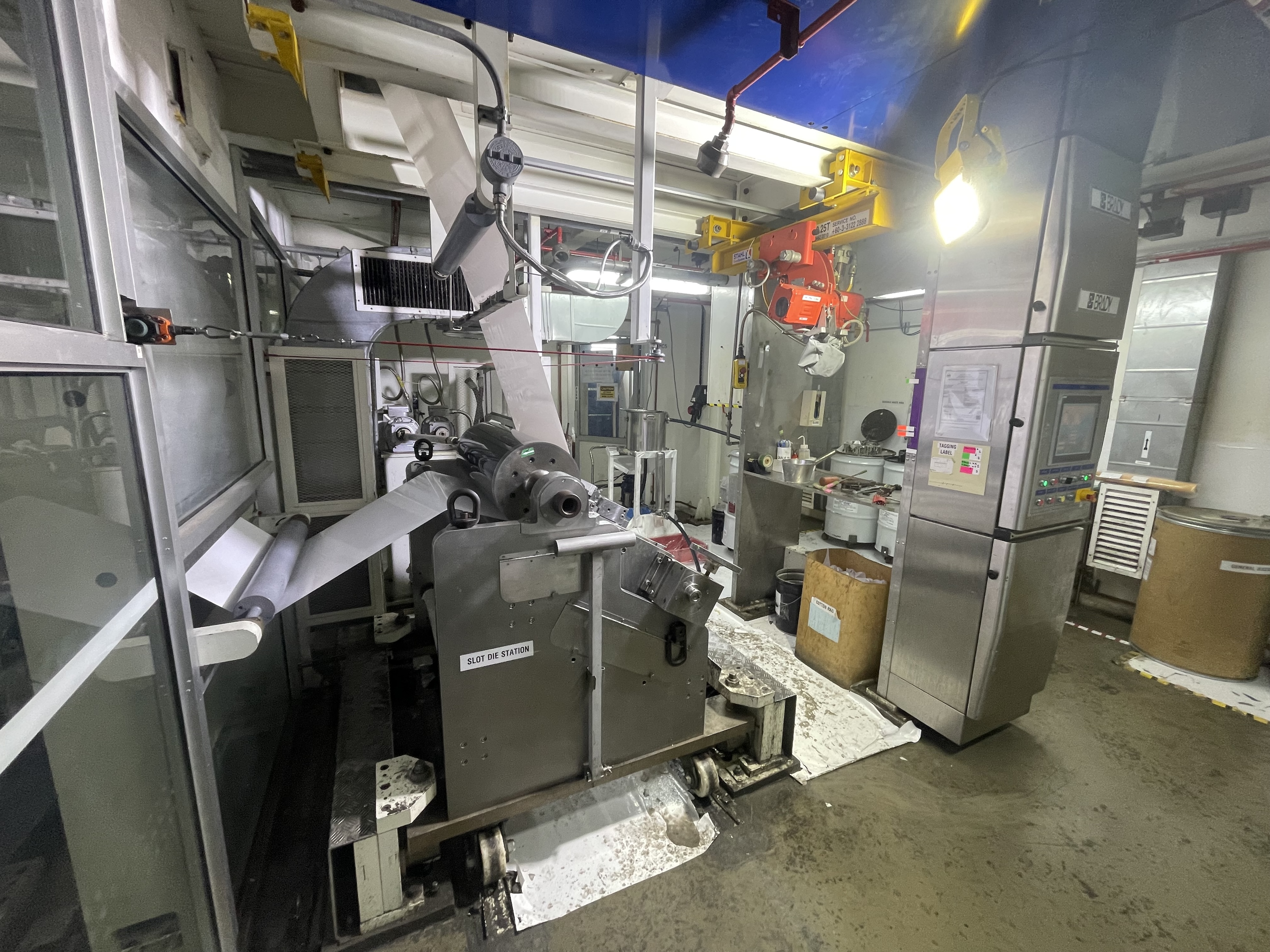

  • — Slot die trolley

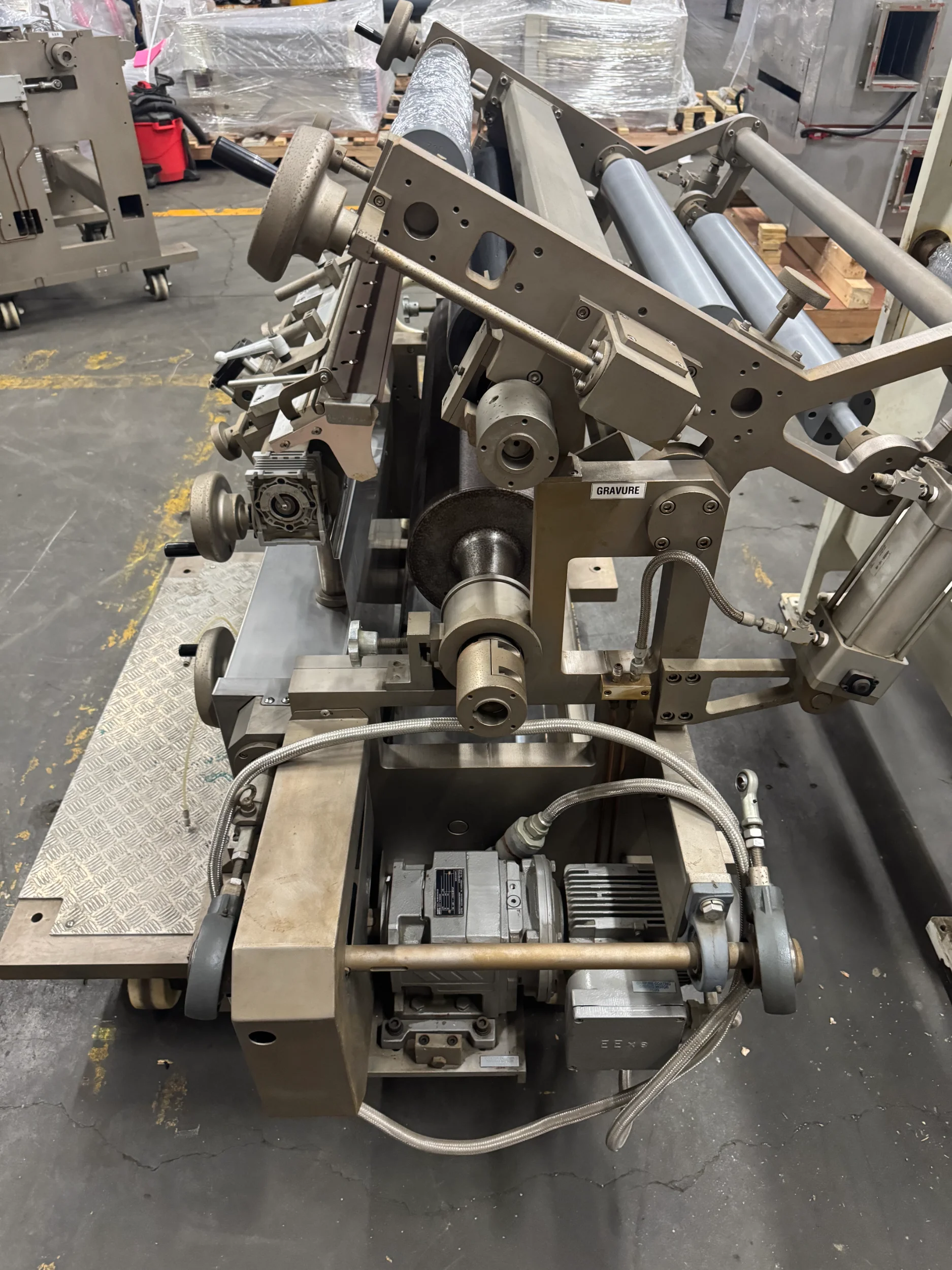

  • — 2-roll gravure trolley

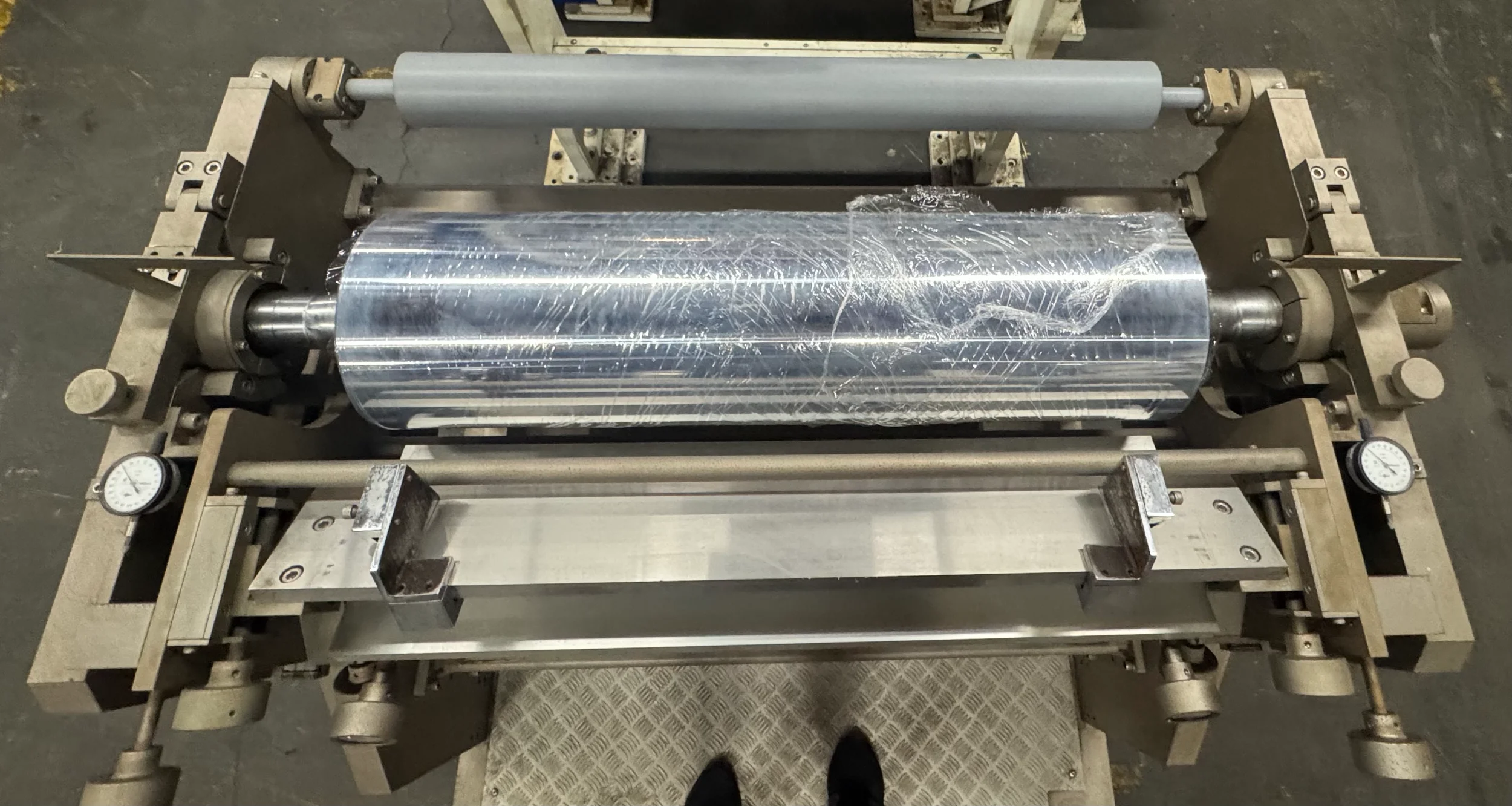

  • — Knife over roll trolley

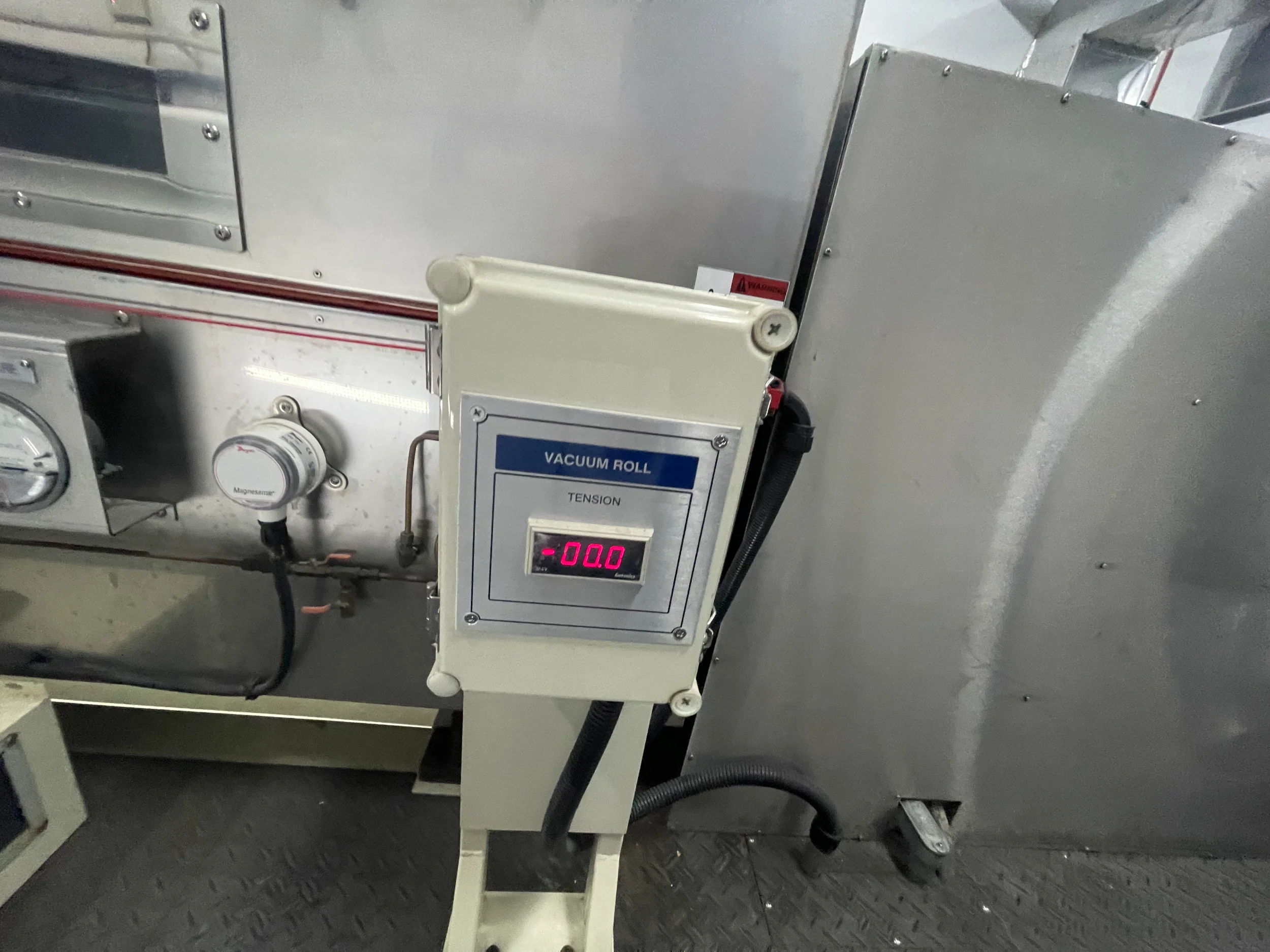

  • — Vacuum pull roll assembly

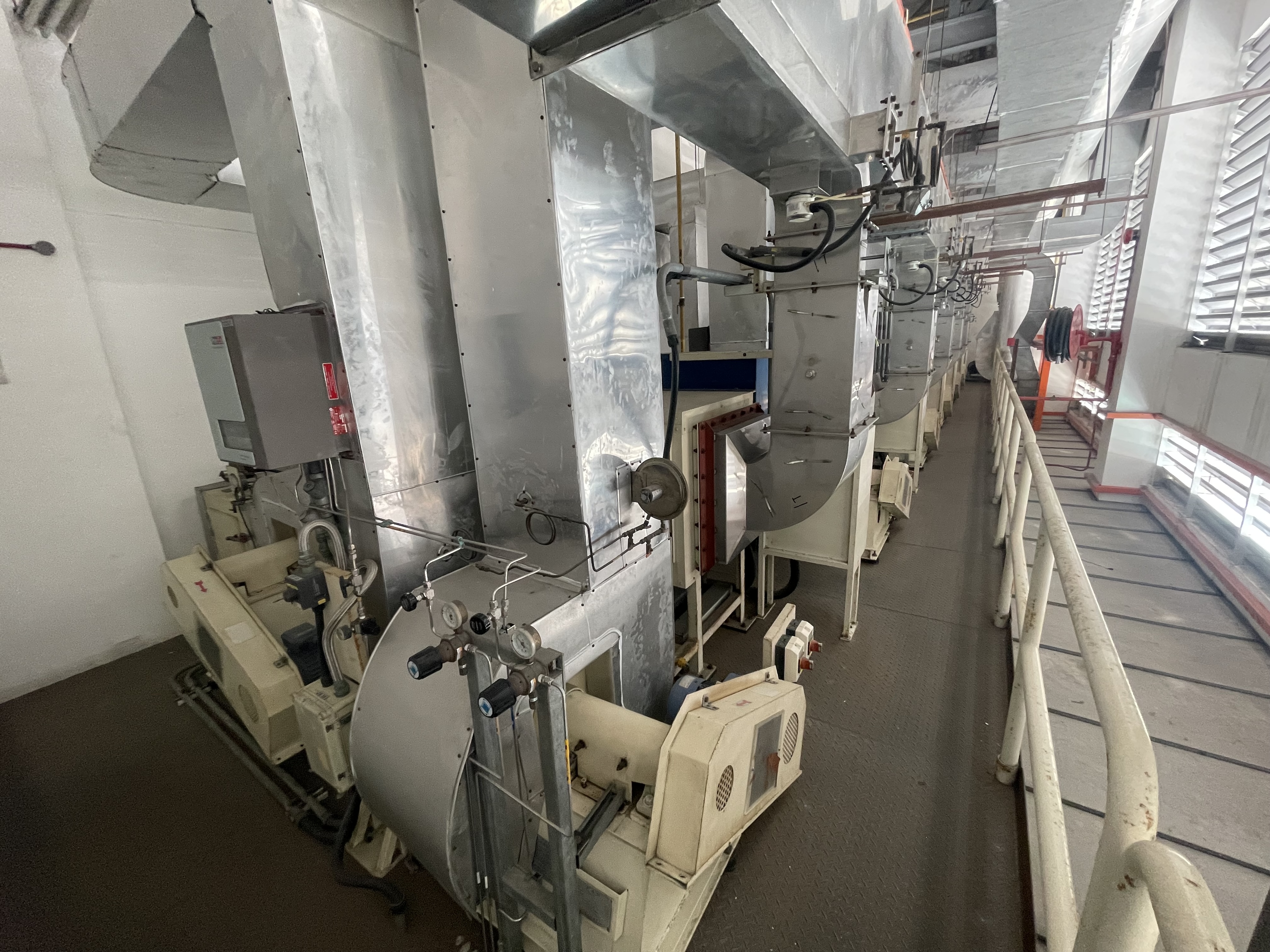

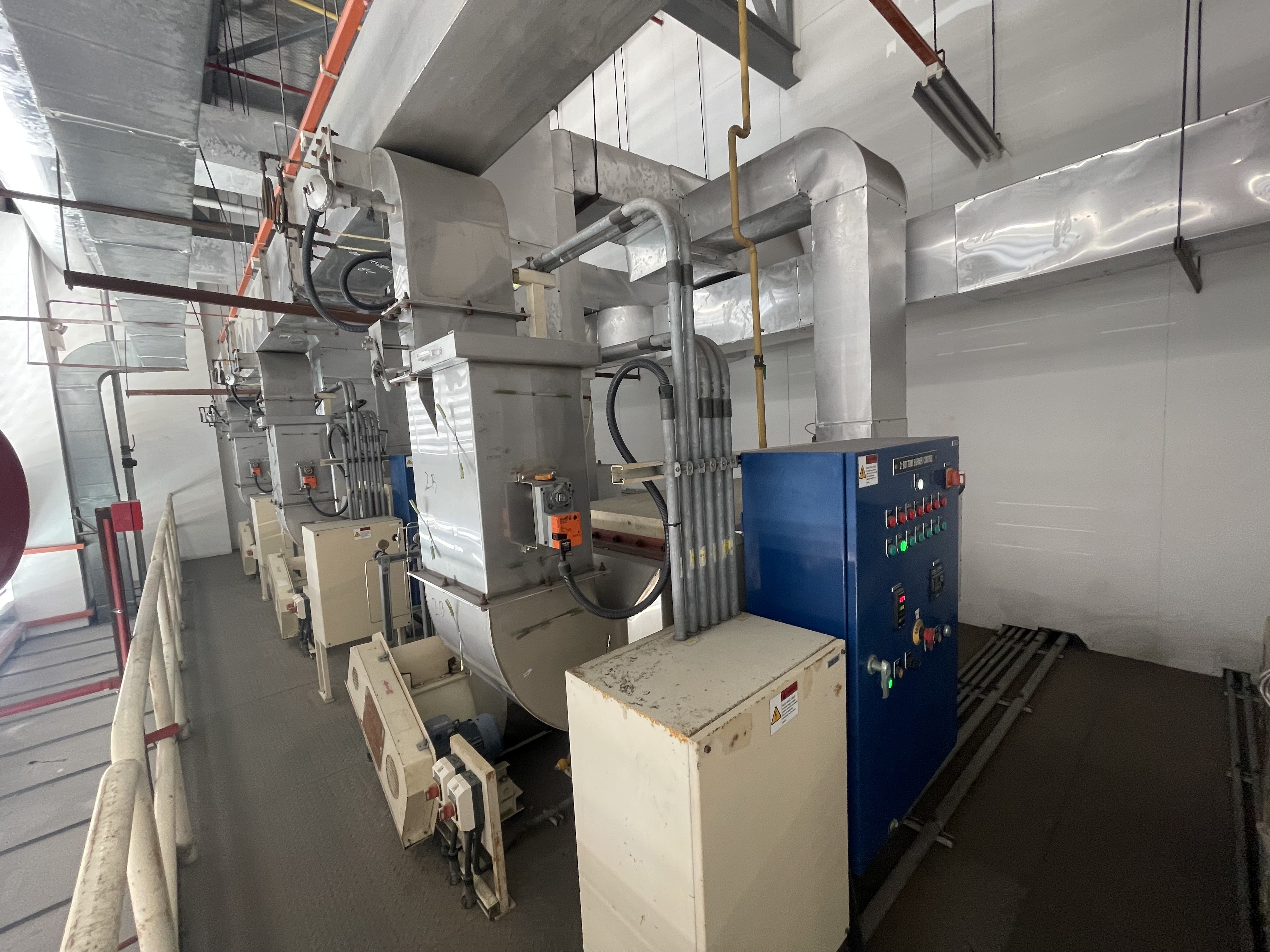

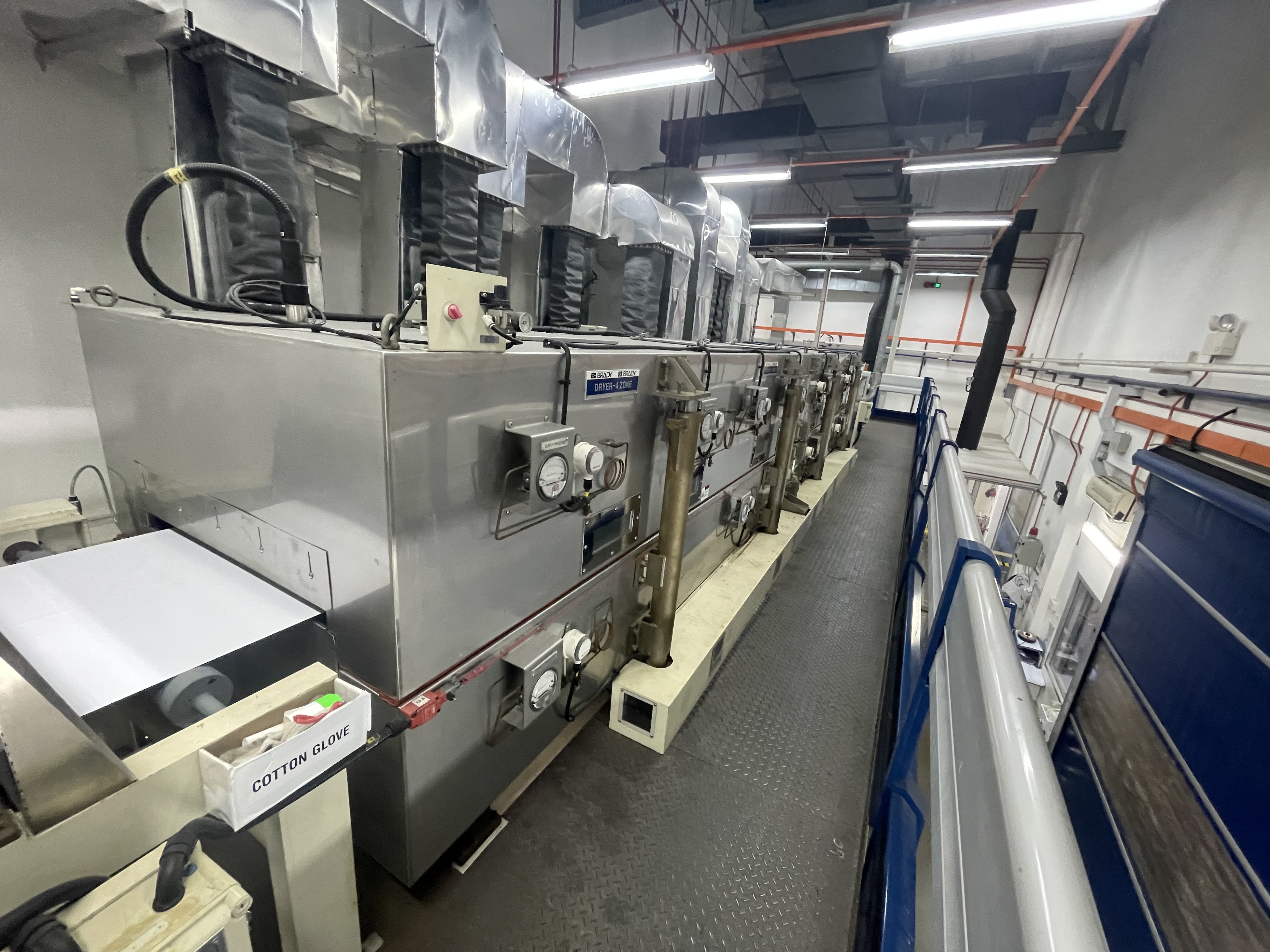

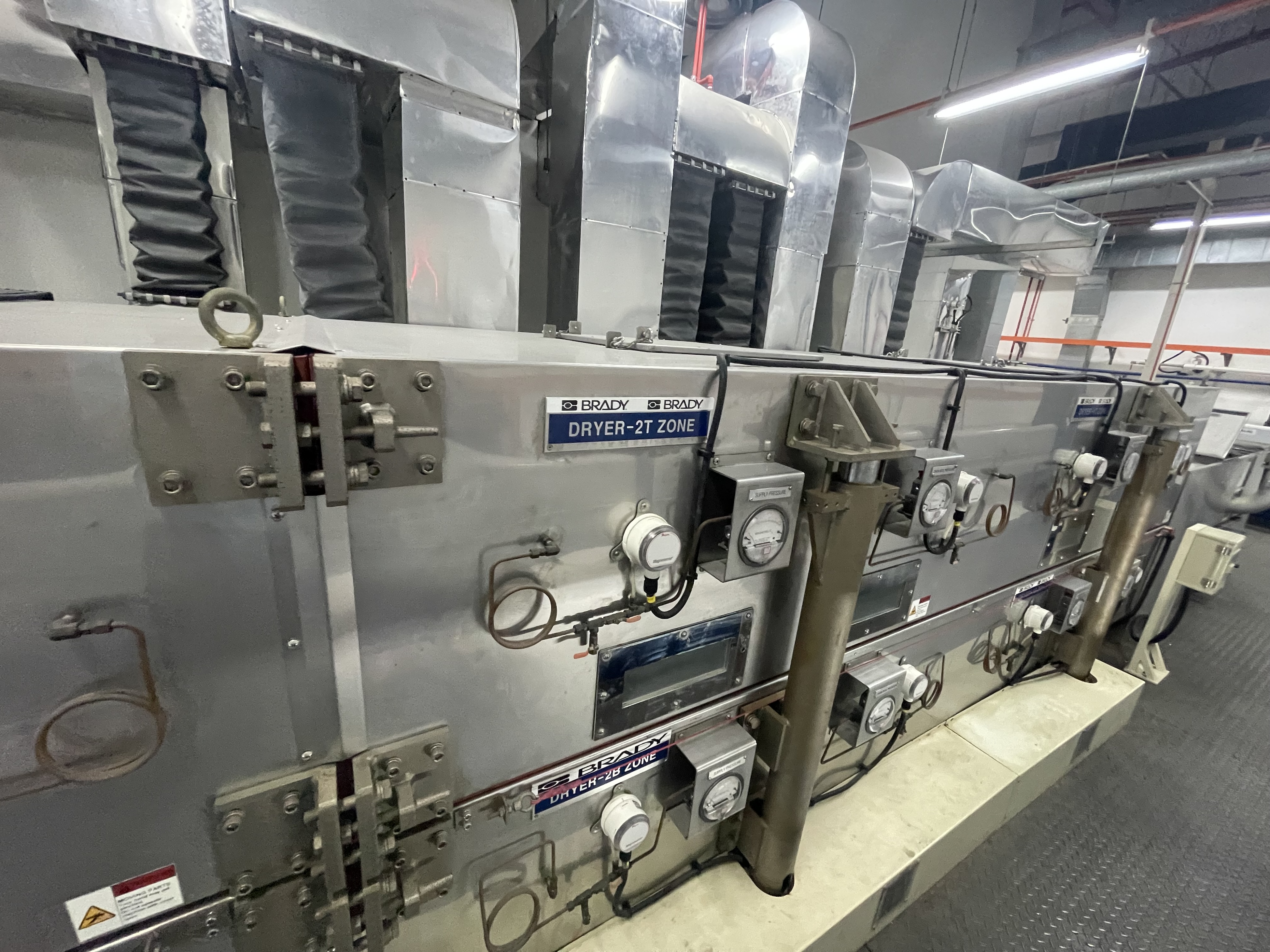

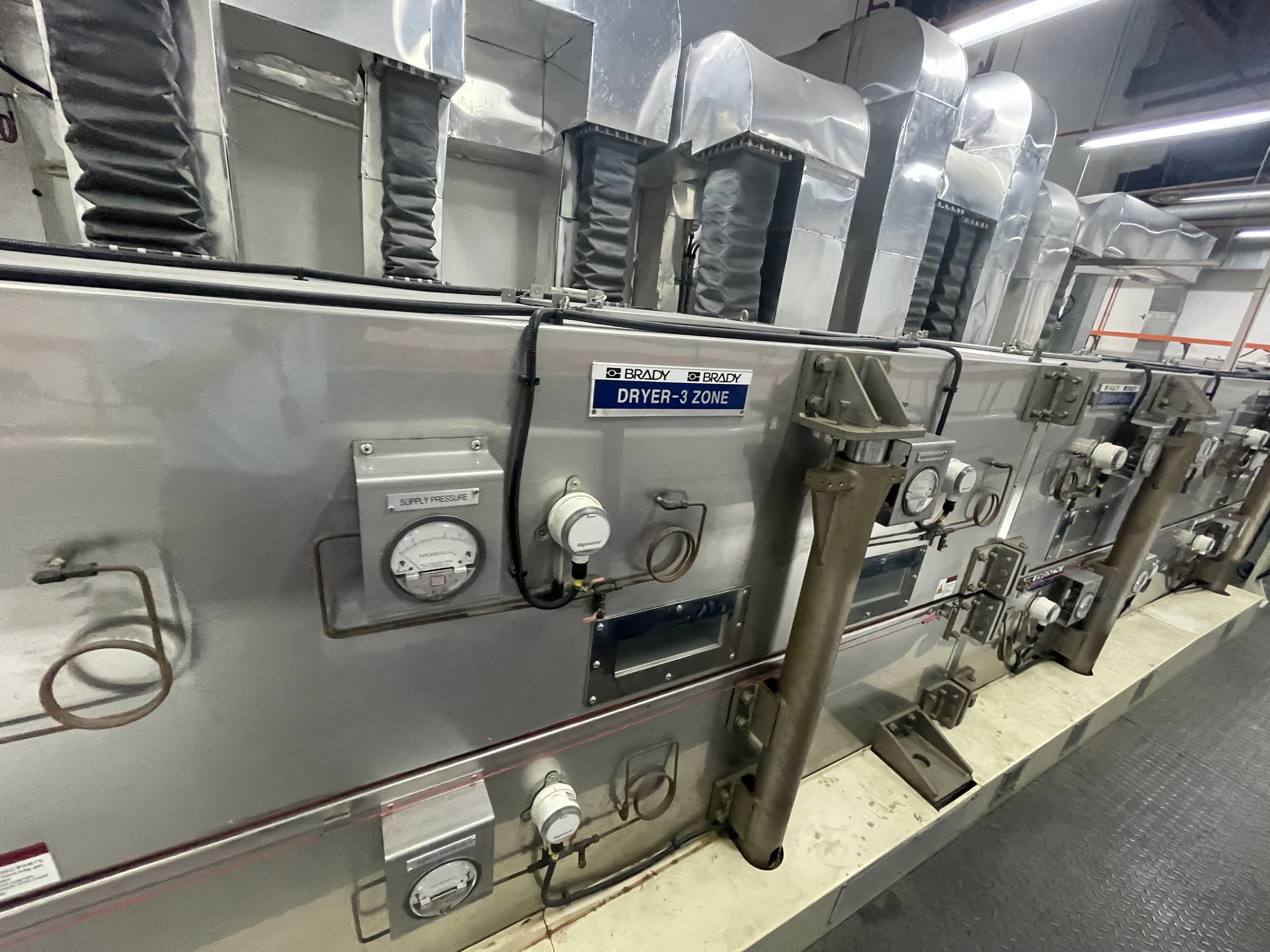

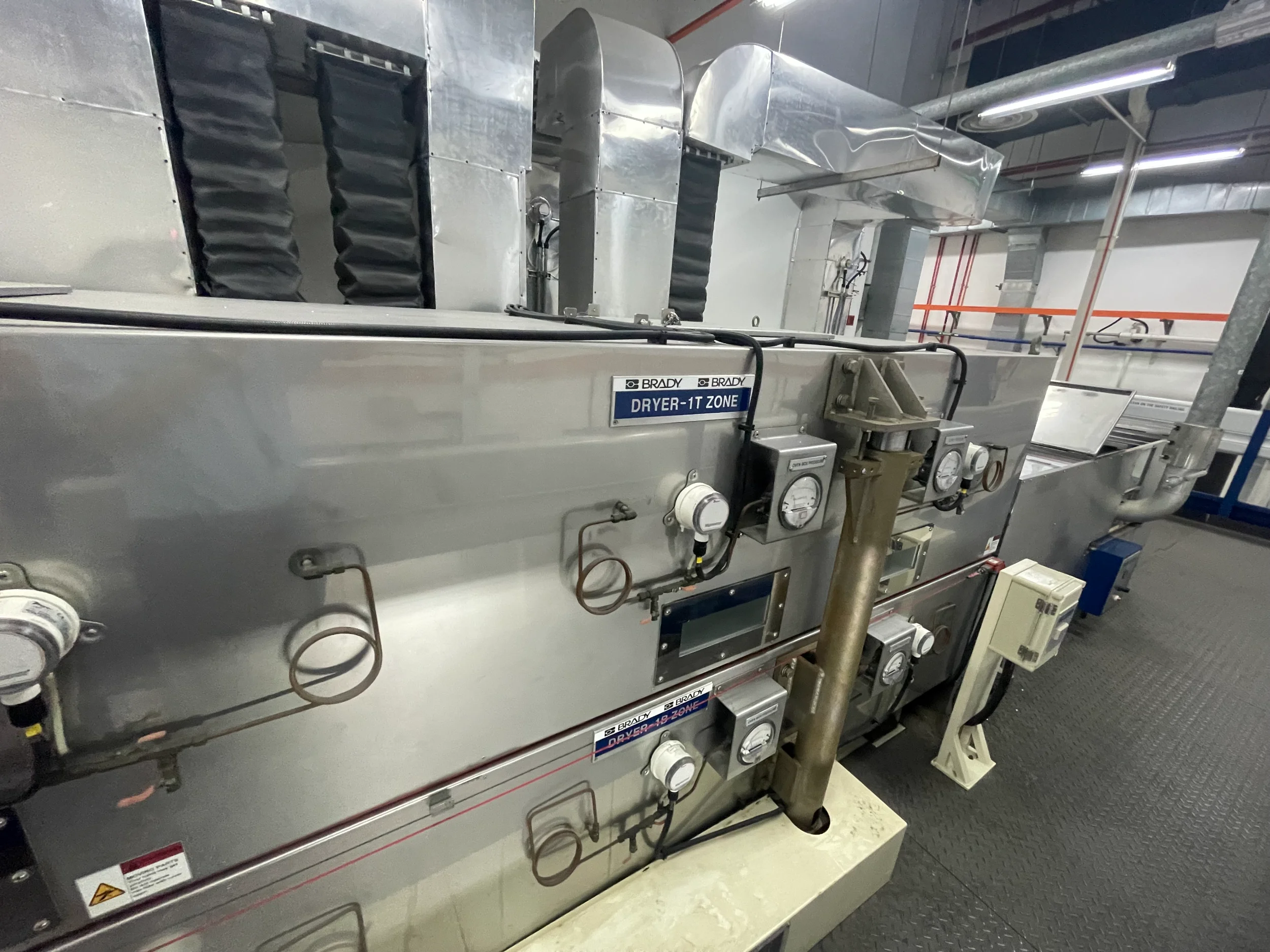

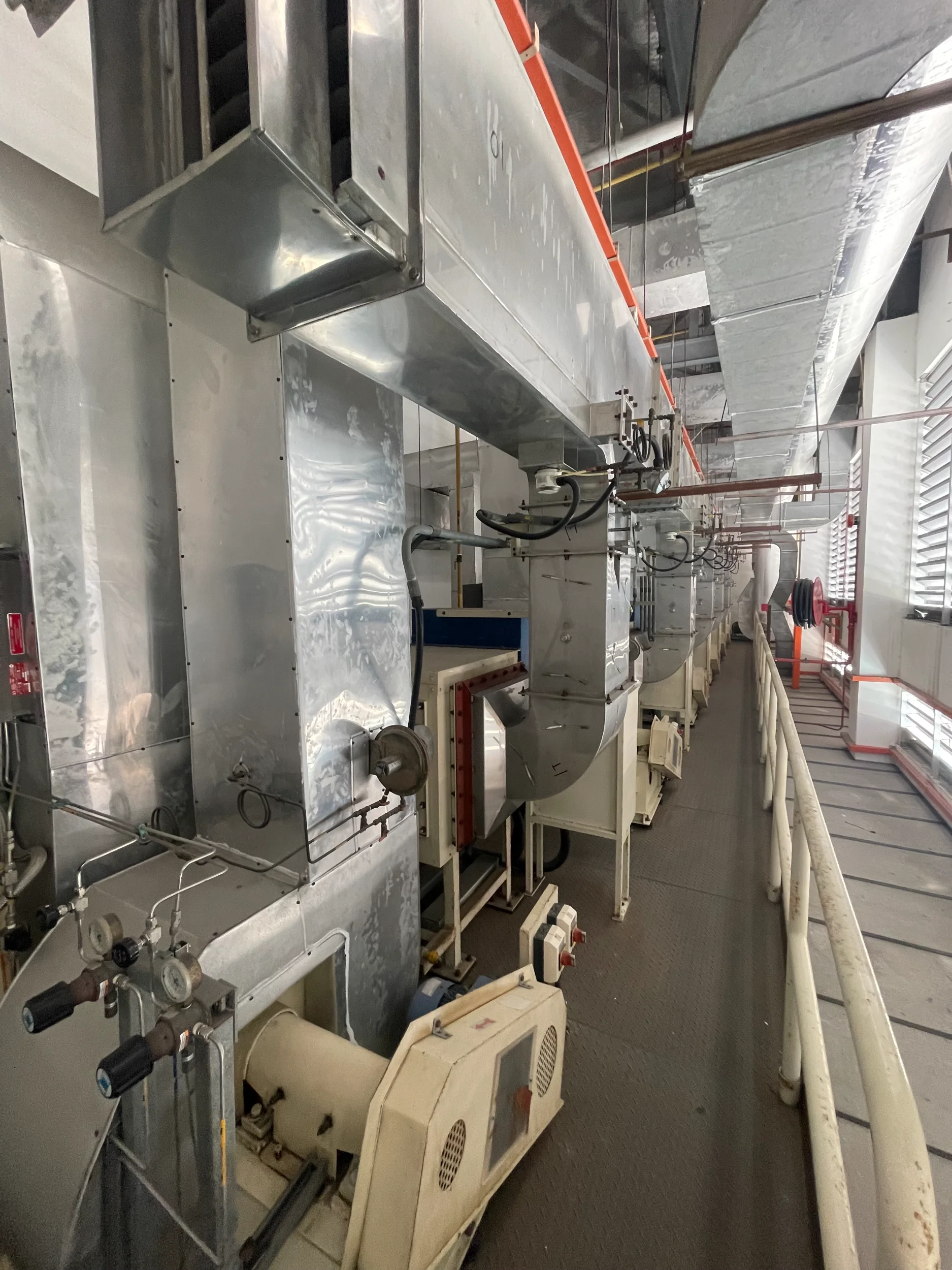

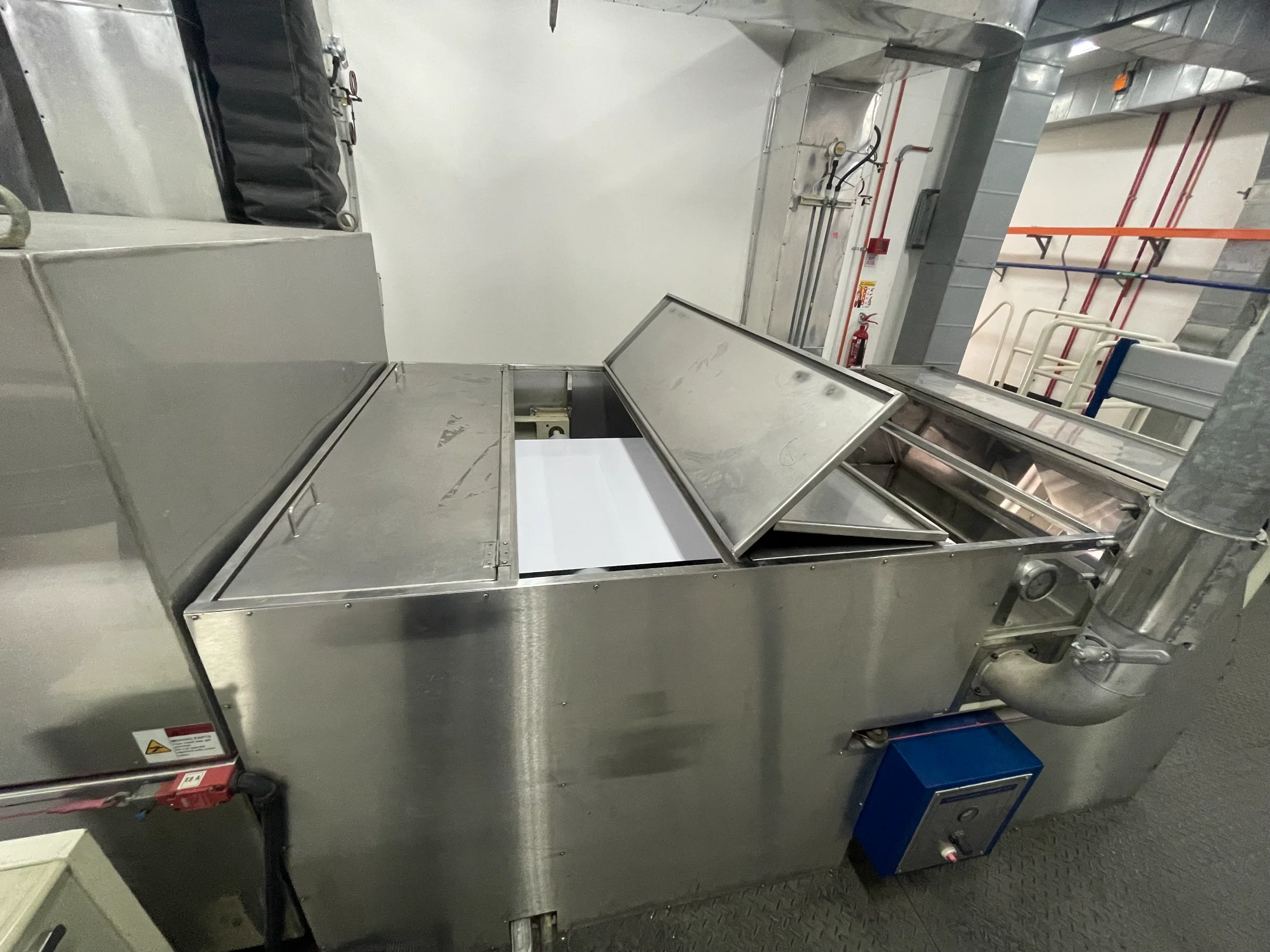

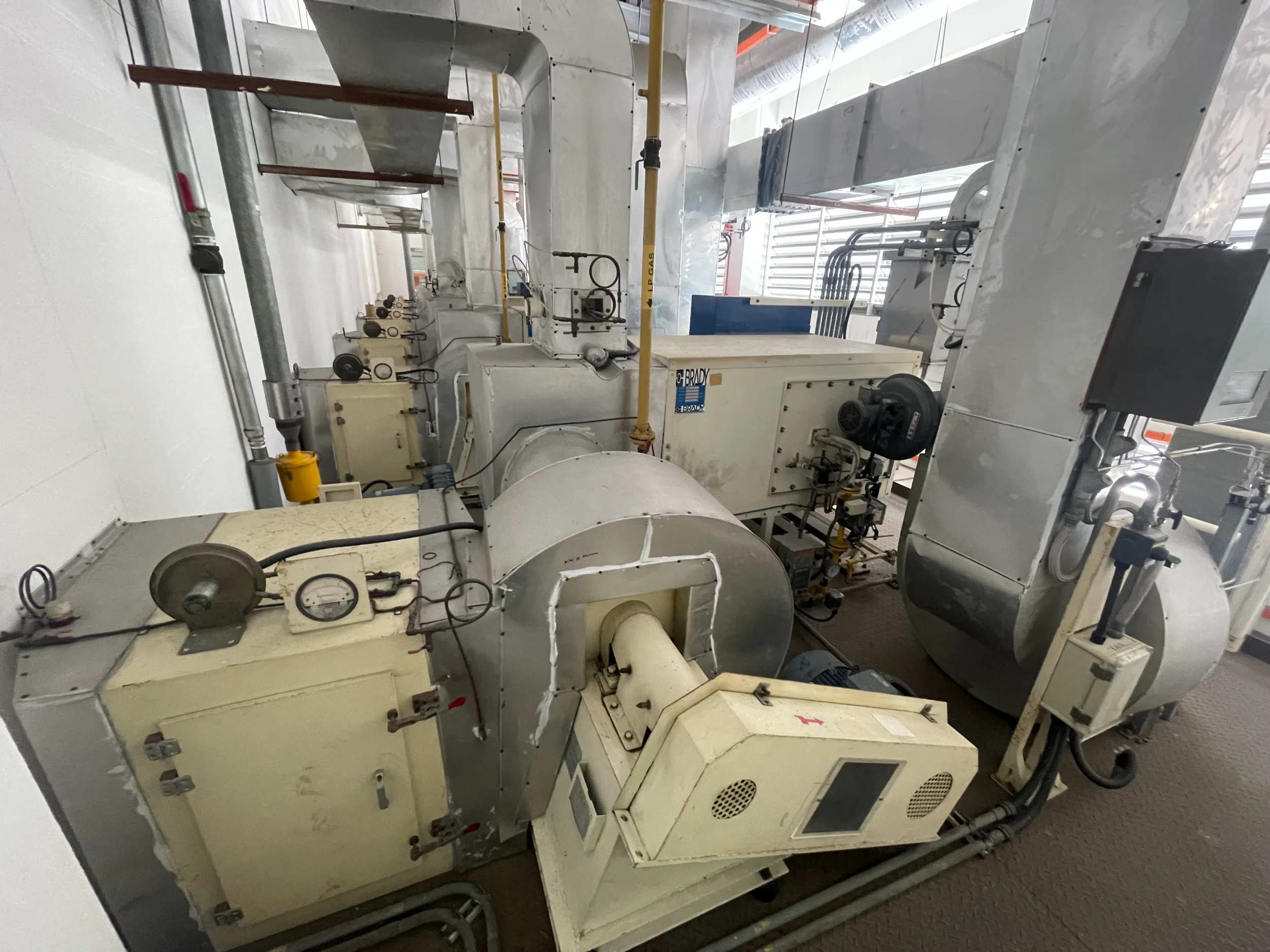

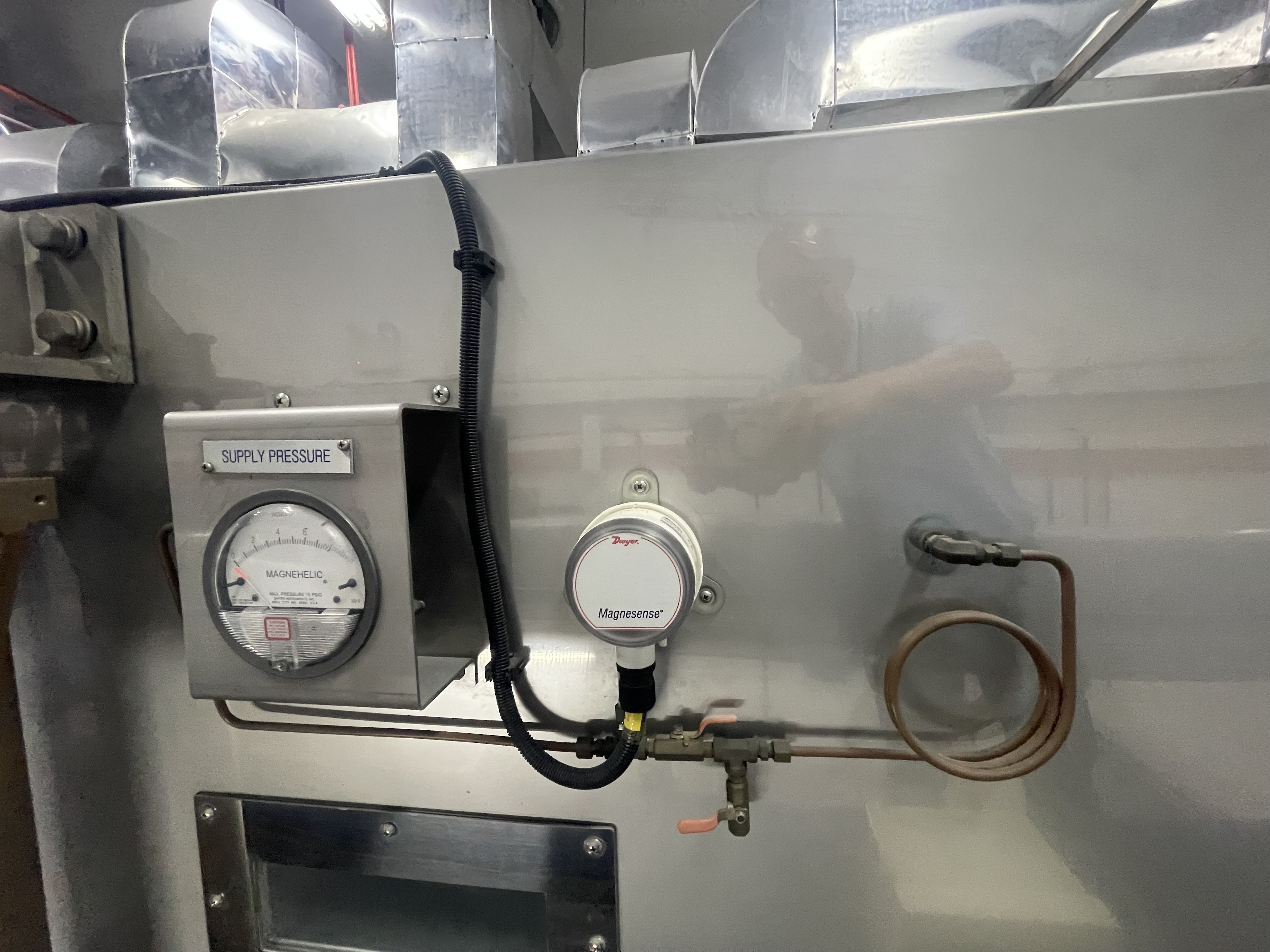

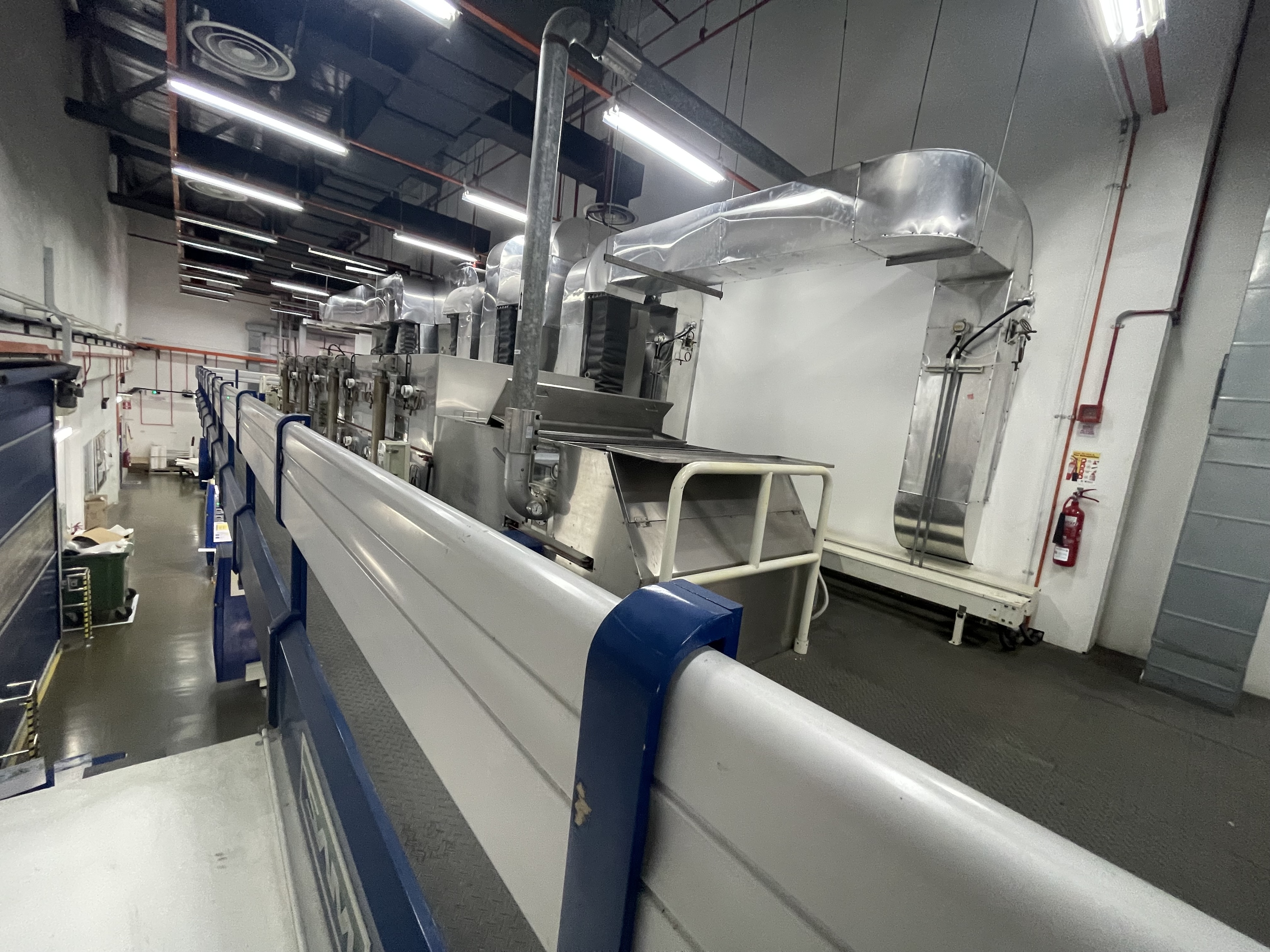

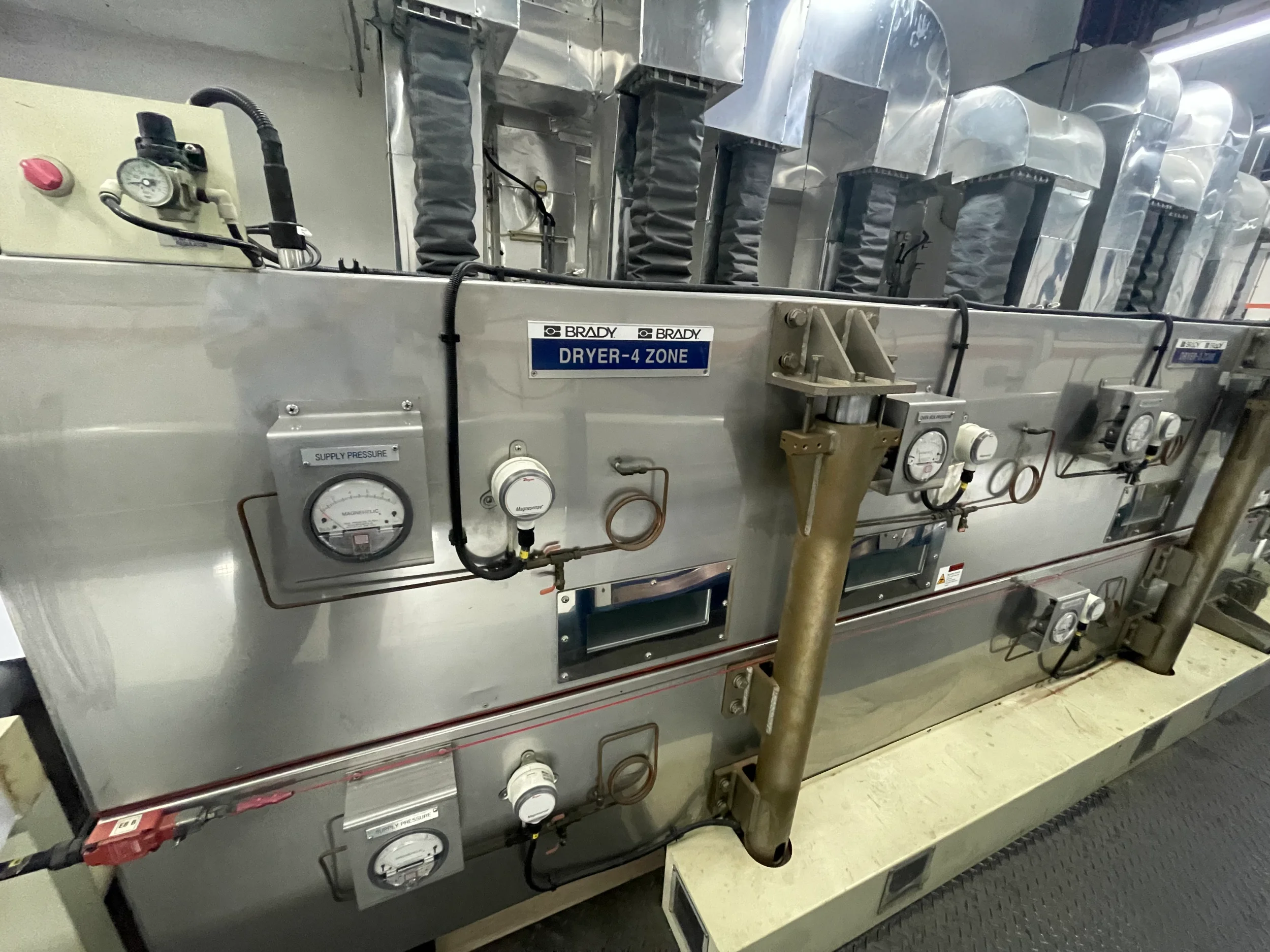

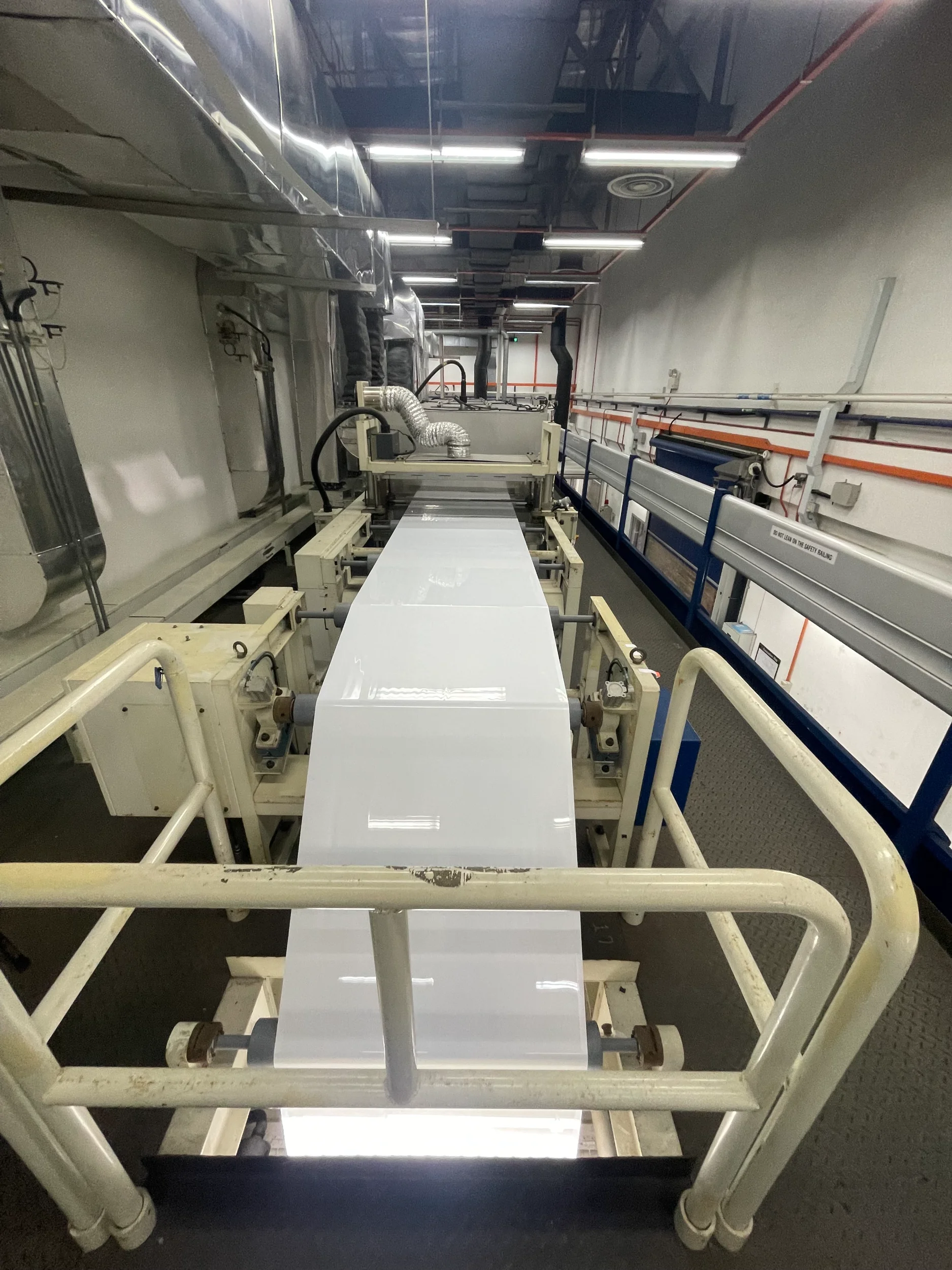

• — Flotation dryer:
  • — 24 feet, 6 zones
  • — Pagendarm Vac-U-Tex nozzles in entire dryer bottom
  • — Zone 1 top nozzles: open design co-current airflow
  • — Zone 2 top nozzles: open design counter-current airflow
  • — Zones 3 and 4: direct impingement
  • — All stainless nozzles, plasma coated for 590 F (310 C)

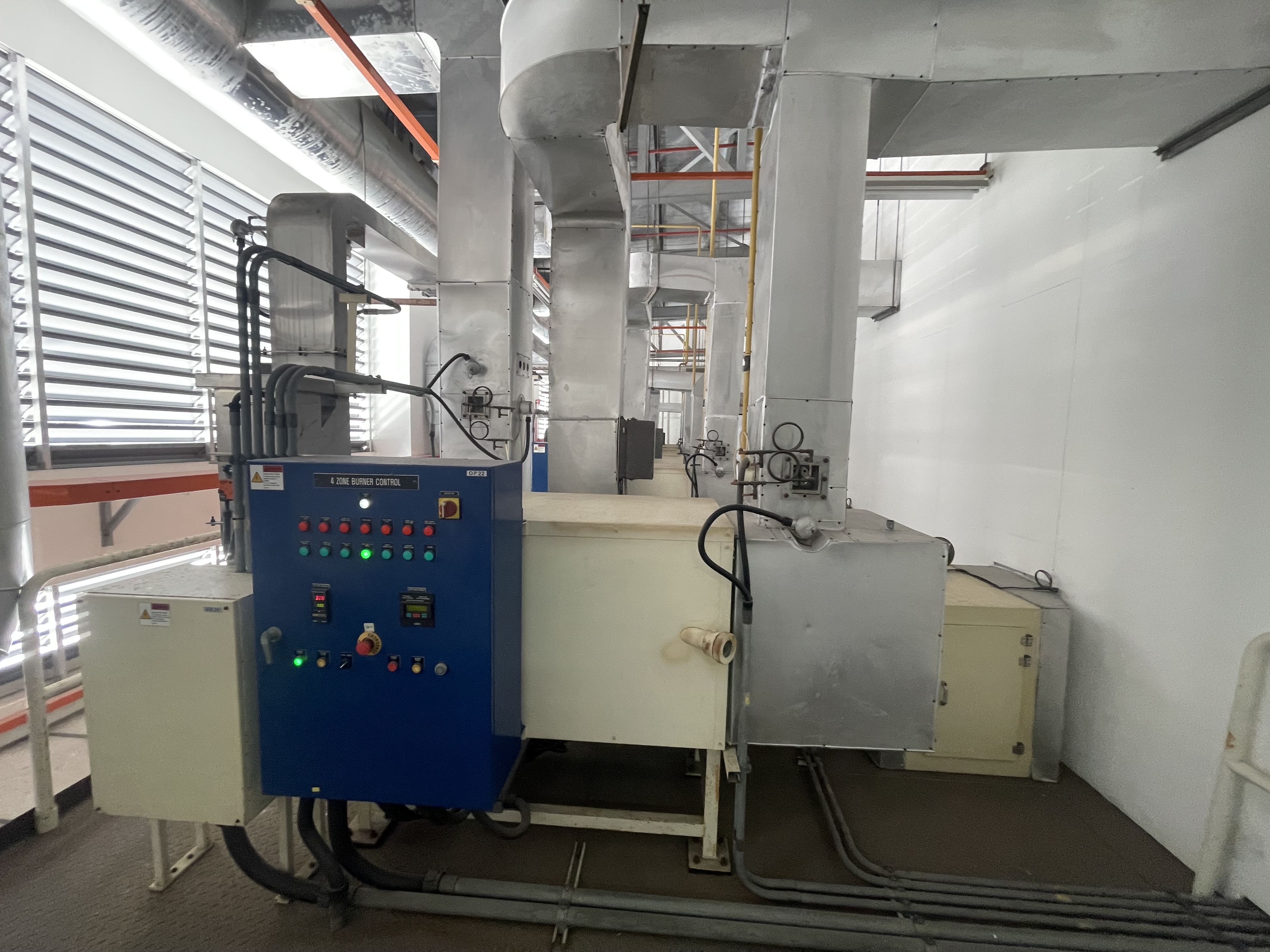

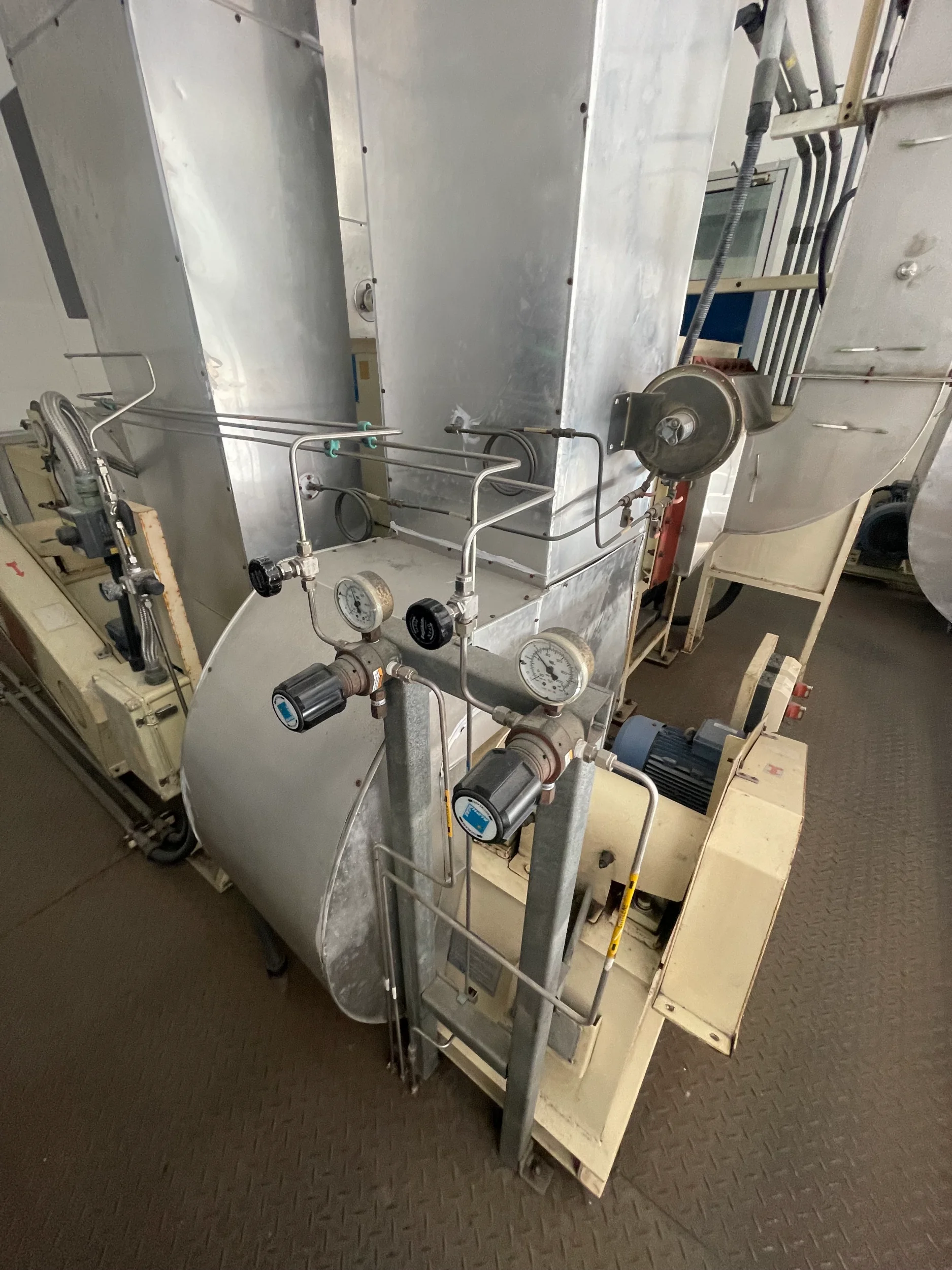

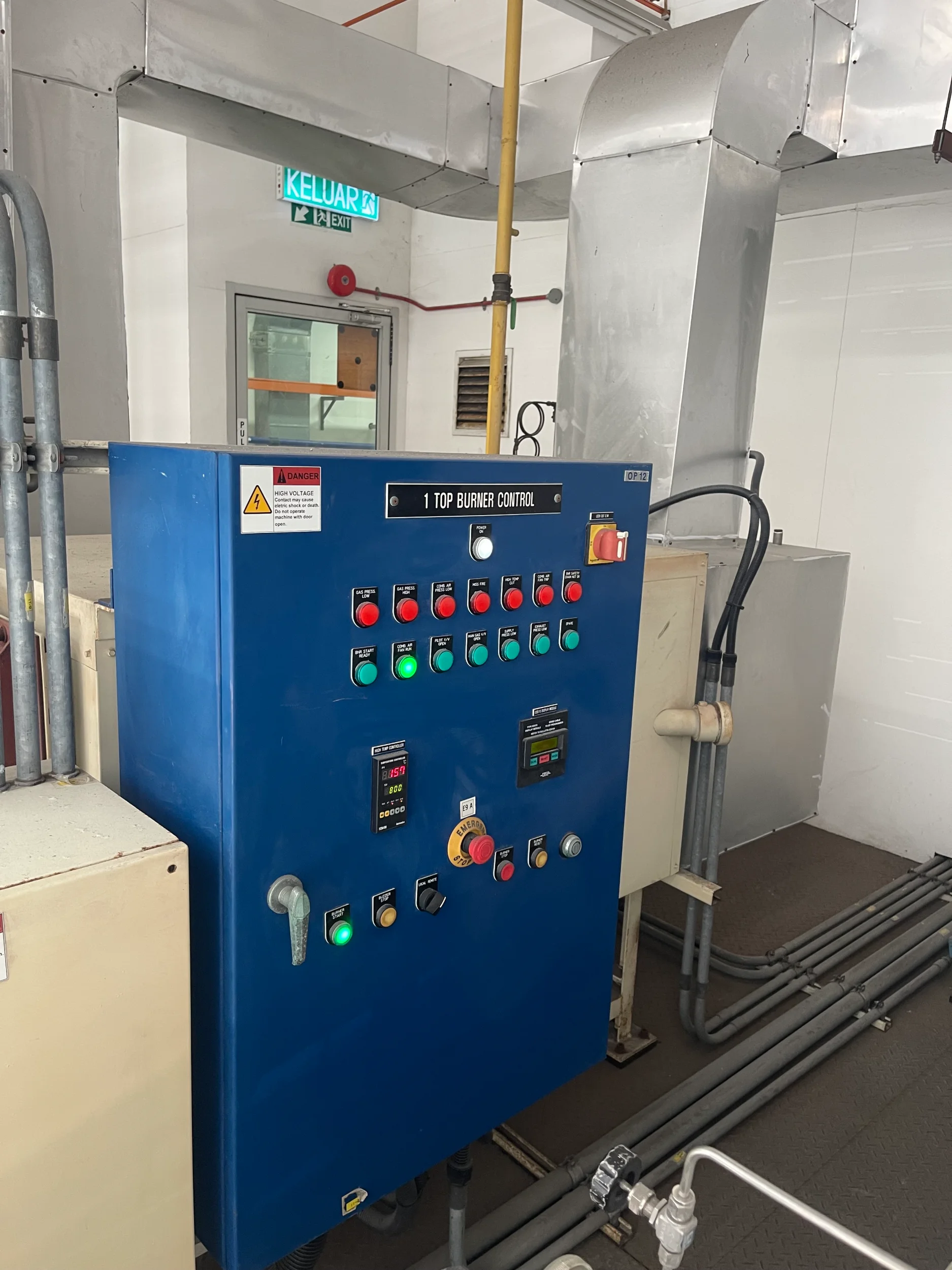

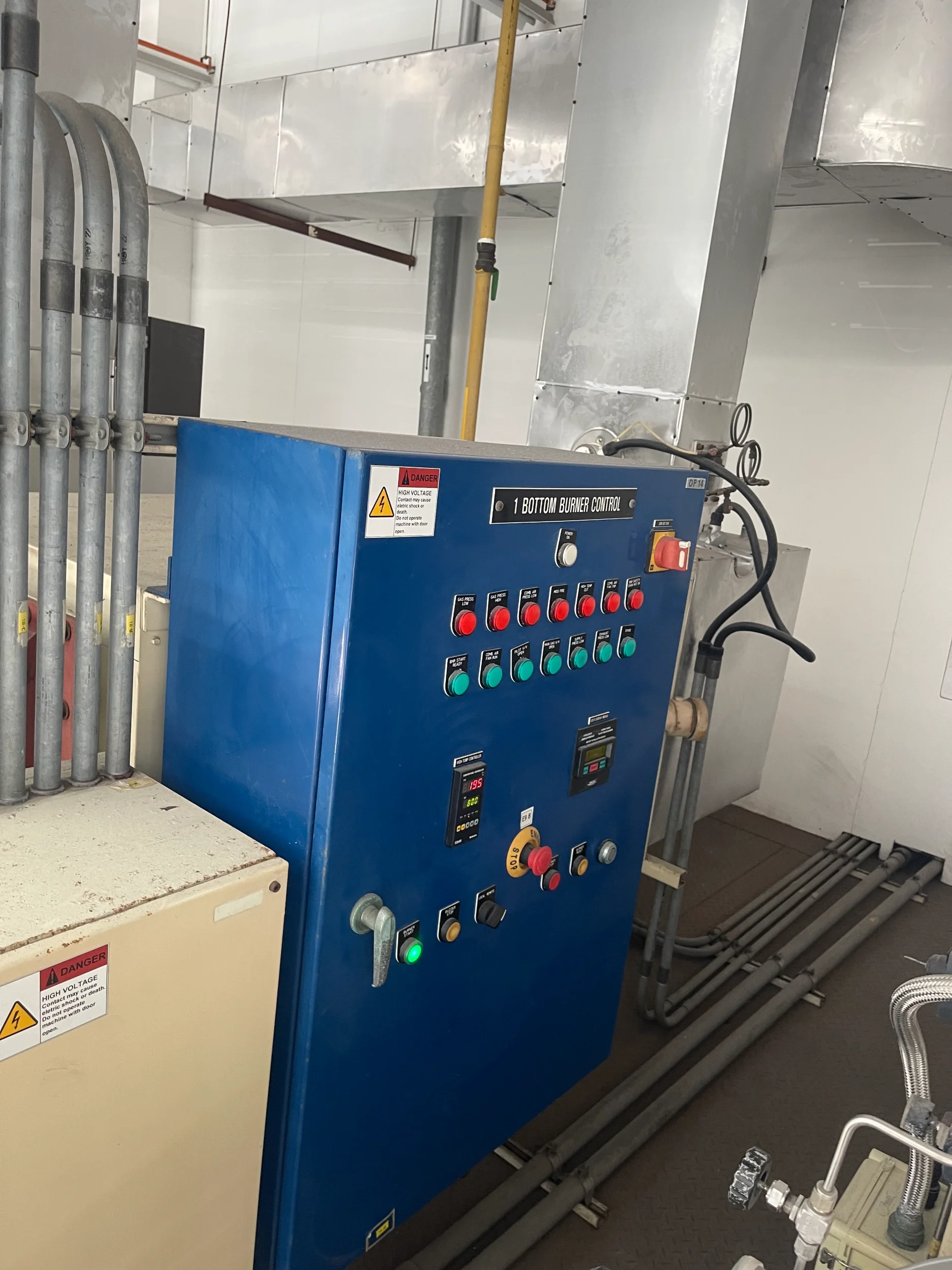

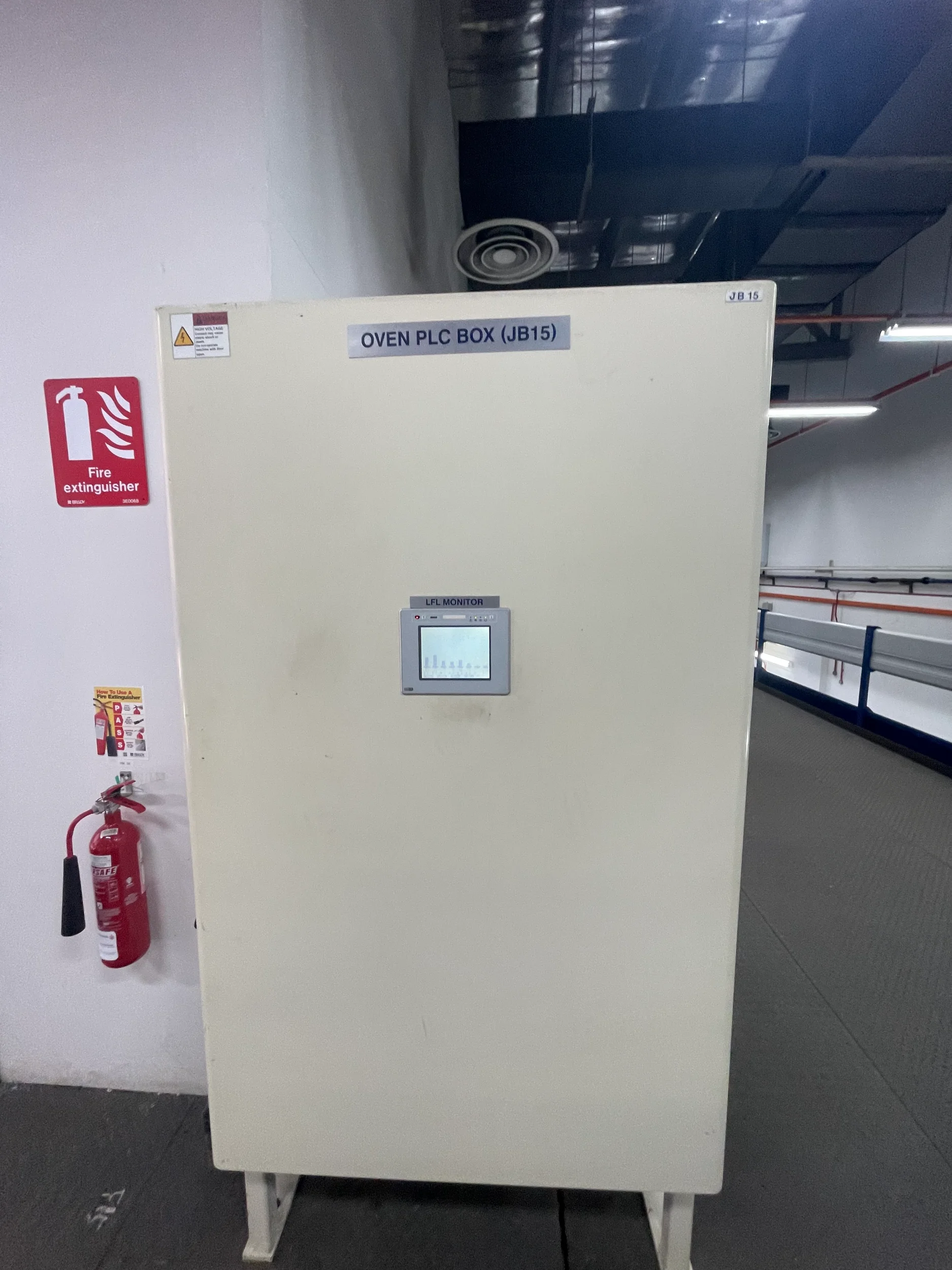

  • — Gas burner in each zone
  • — Seven LEL sensors in each zone
• — IR heater: 14 inch Glenro 20 kW heater box
• — Inspection: Landsco inspection light

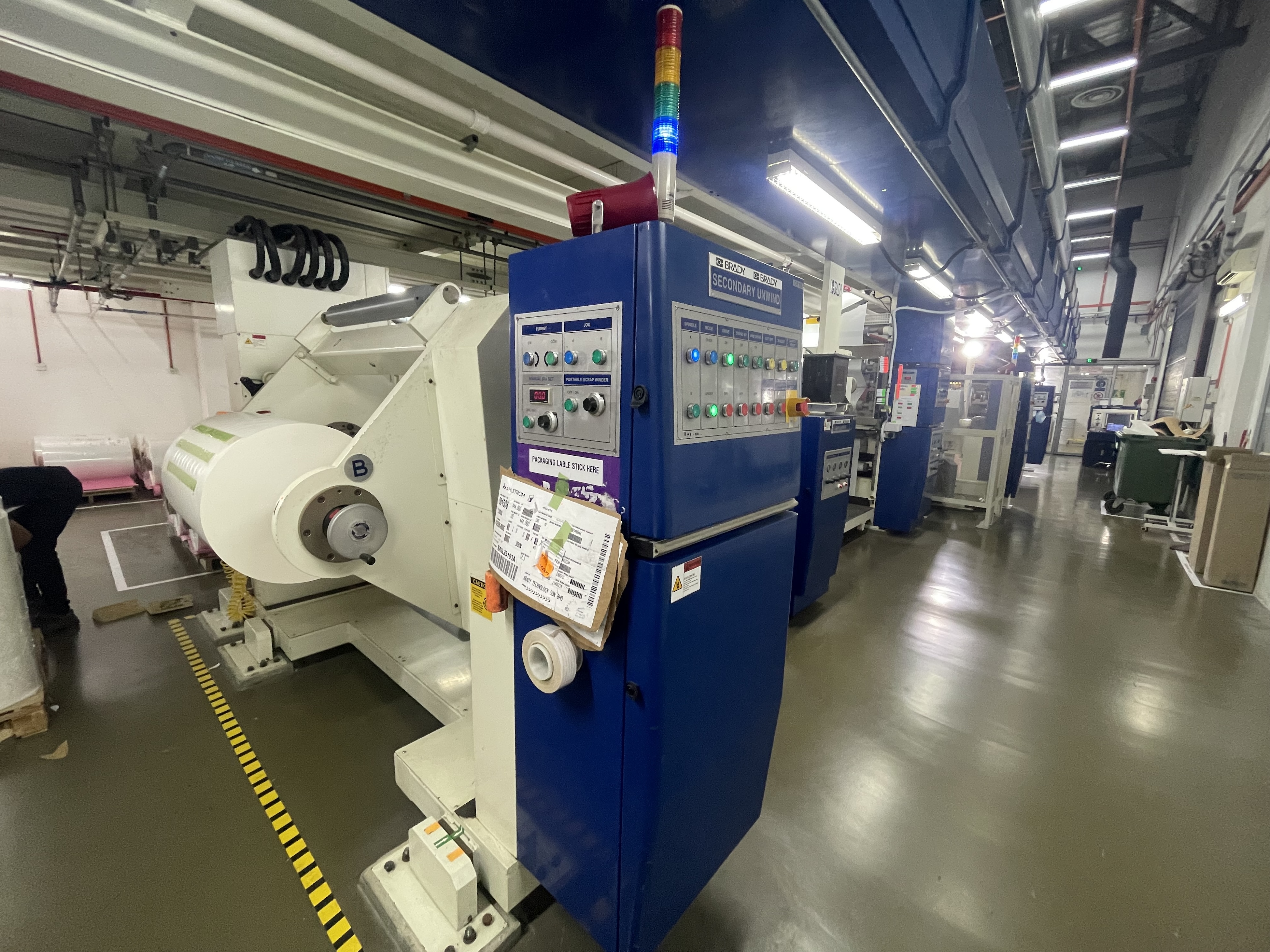

• — Secondary unwind:
  • — Phantom axis turret, 30 inch maximum diameter
  • — 3 inch and 6 inch air shafts
  • — Regenerative drives
  • — Dual direction manual splice

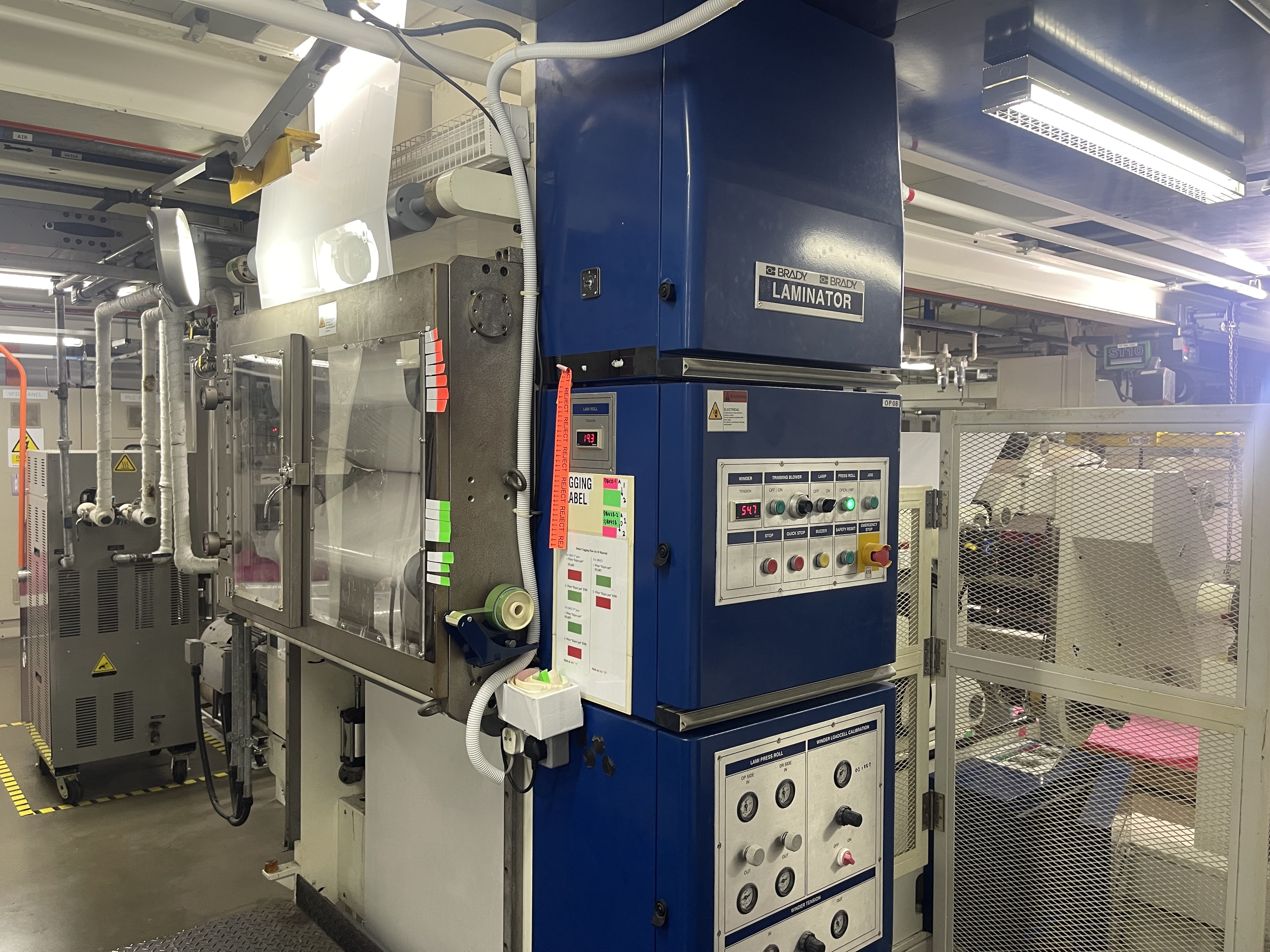

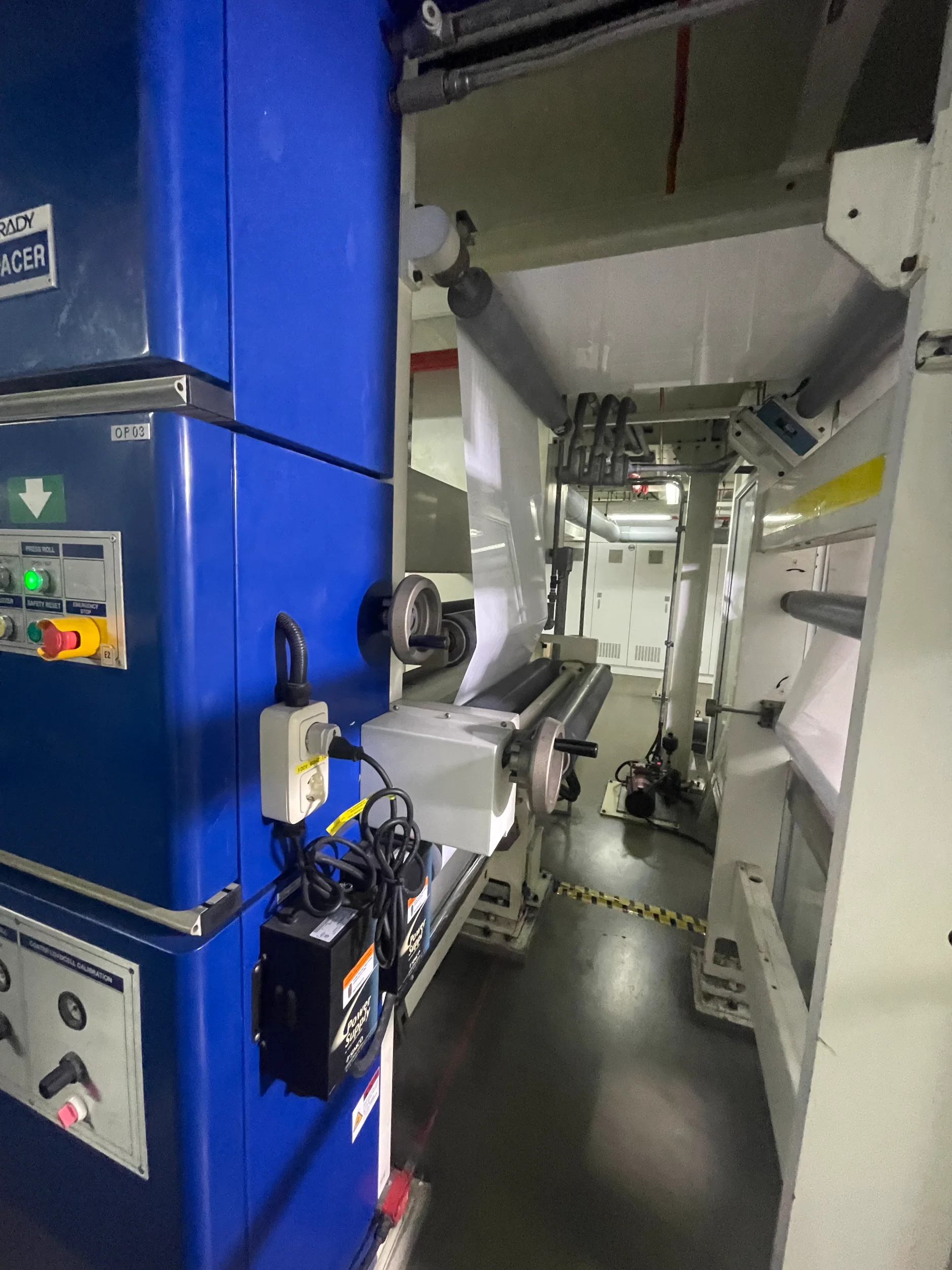

• — Laminator section:
  • — 10 inch diameter heated, spiral fluted chrome plated roll
  • — 8 inch diameter hi-release silicone rubber covered nip roll, up to 150 psi
  • — Sterlco temperature control unit
  • — S-wrap chill roll section
• — Edge trimming: Razor edge trim section with trim nozzles

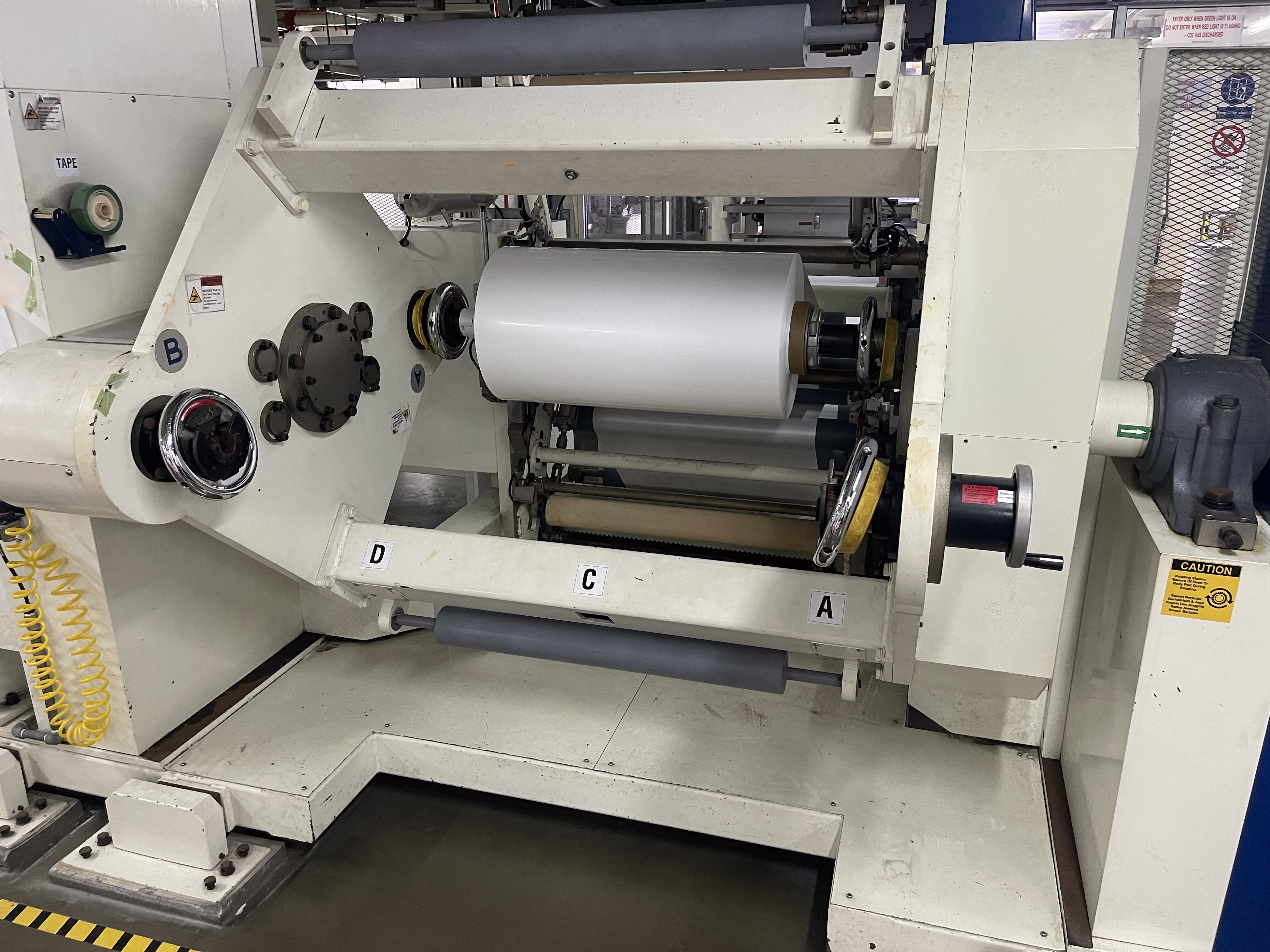

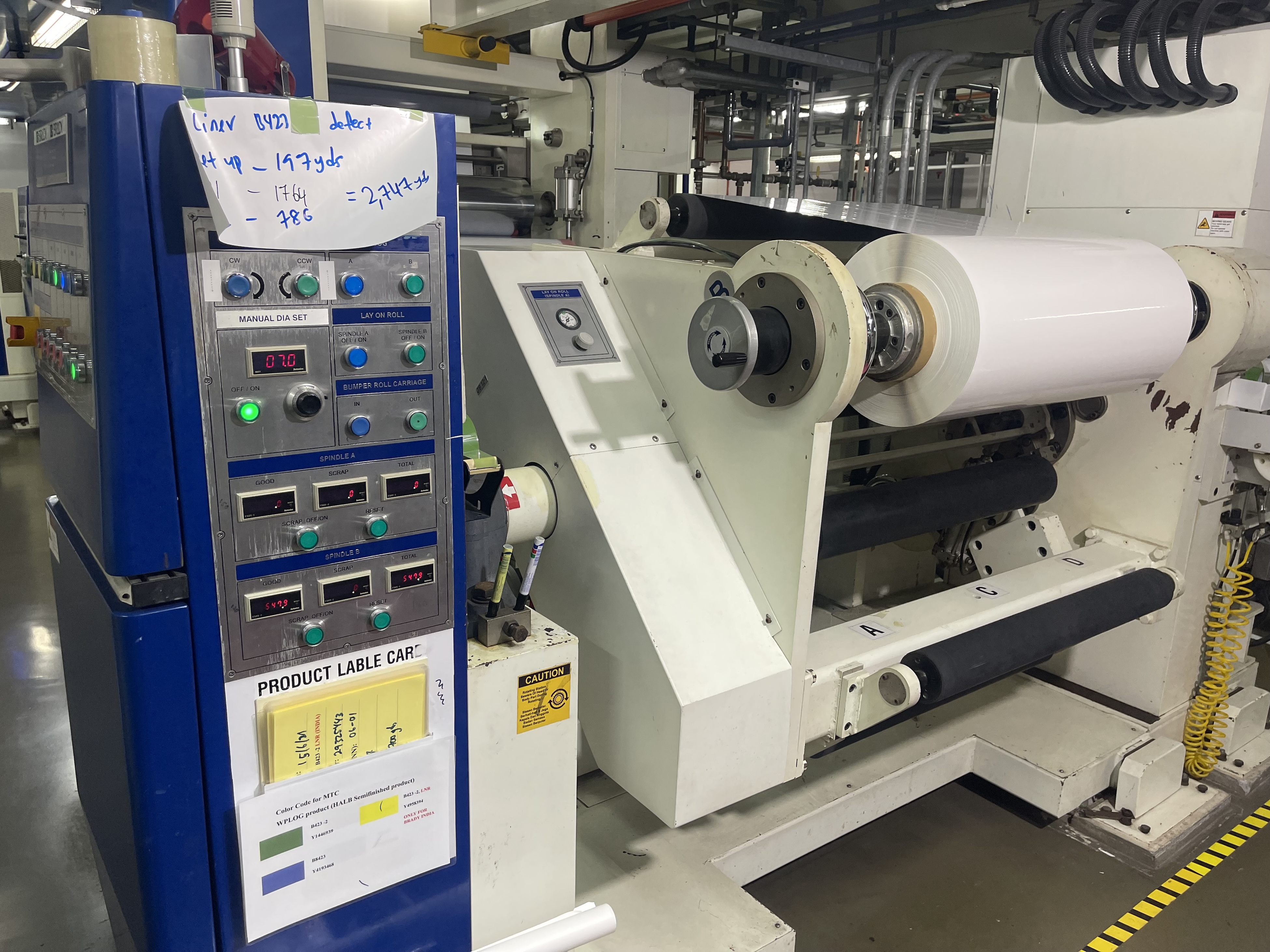

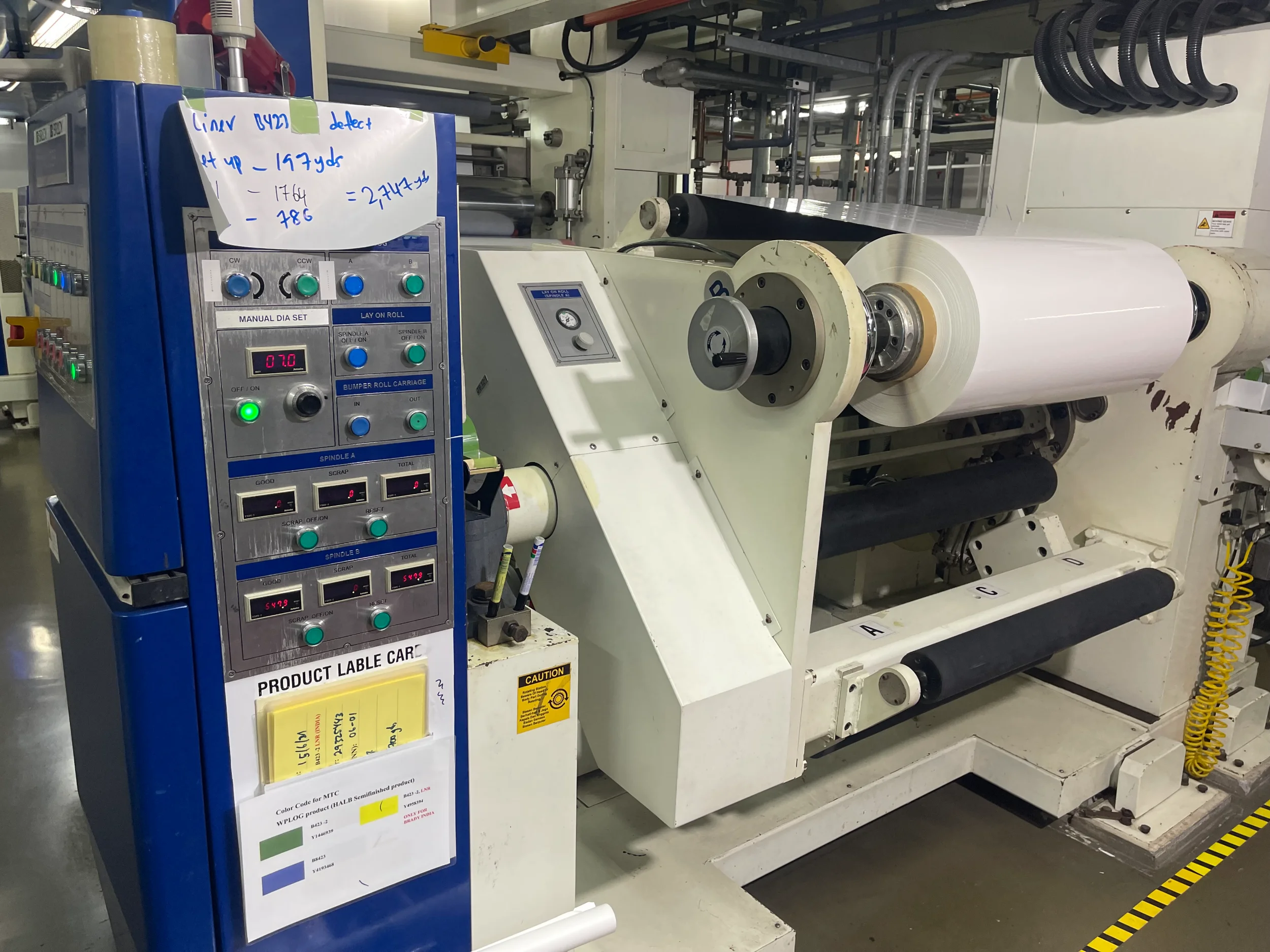

• — Turret rewind:
  • — Phantom axis, 30 inch maximum diameter, shafted
  • — Gap or contact winding
  • — 3 inch air shafts with 6 inch adapters
  • — Dual direction automatic roll changer
• — Portable scrap winder: 18 inch maximum diameter, 3 inch air shaft

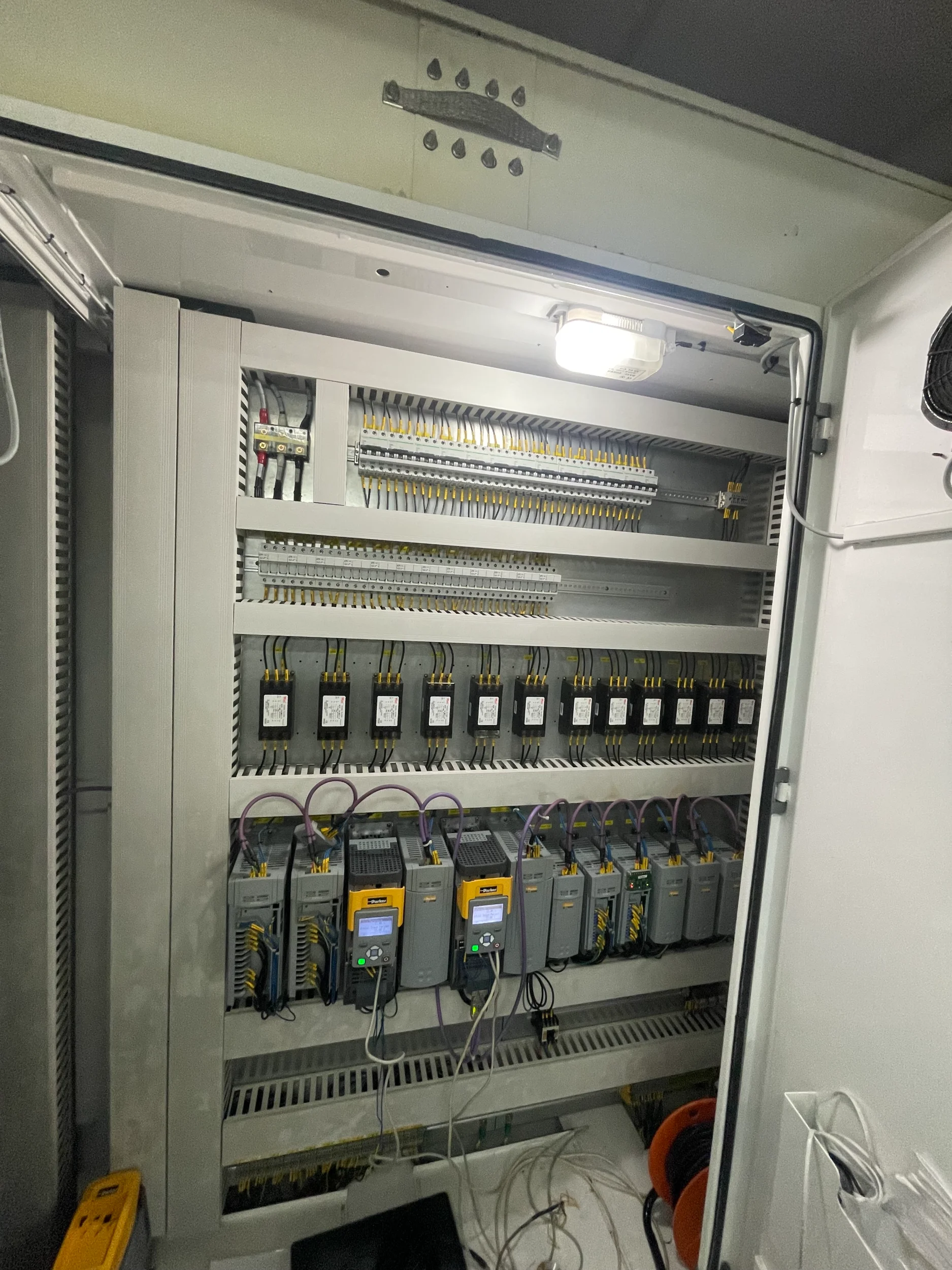

• — Drives and motors:
  • — All motors AC vector
  • — Explosion-proof motors on coating trolleys
  • — Parker 890 AC drives

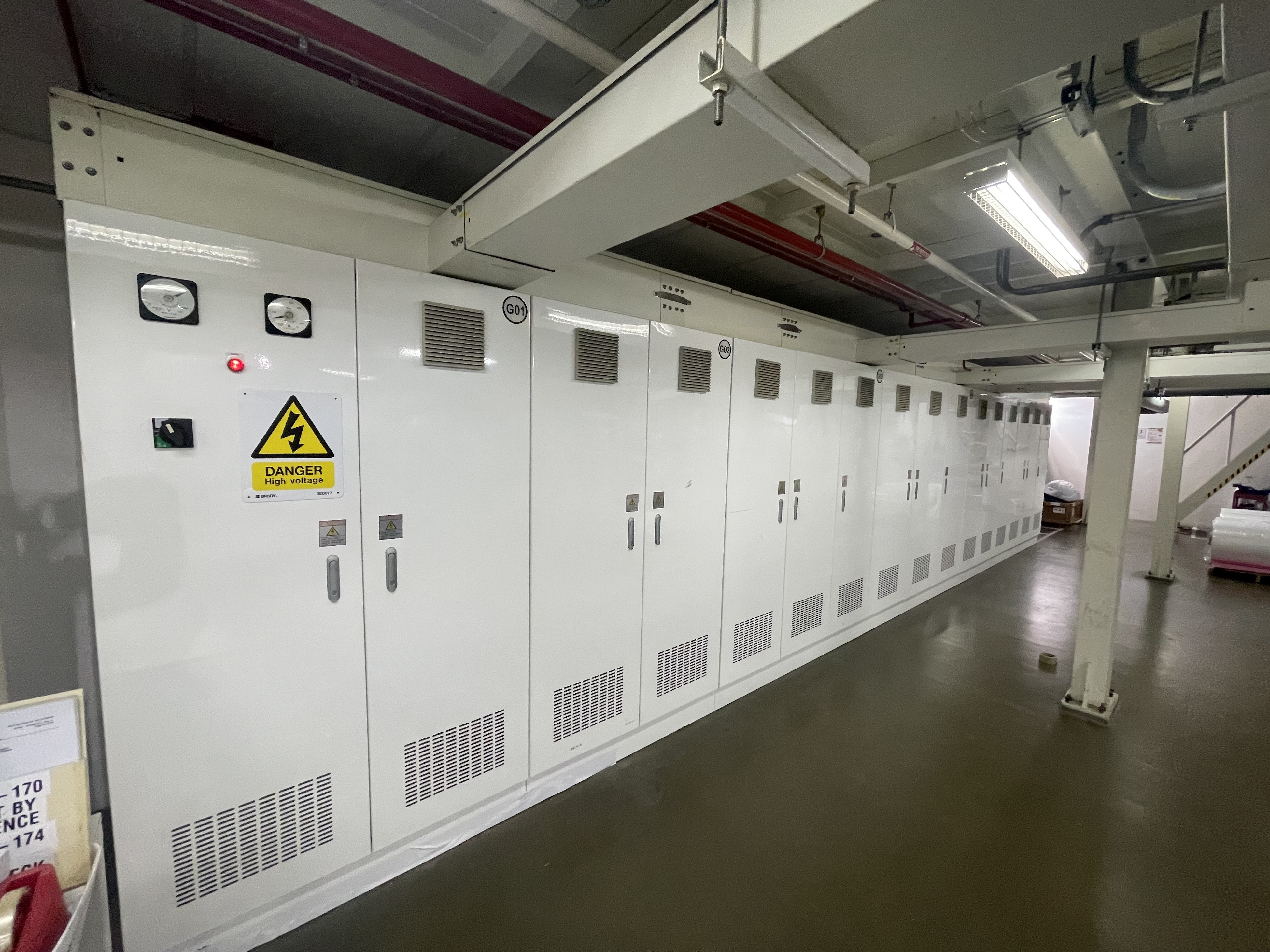

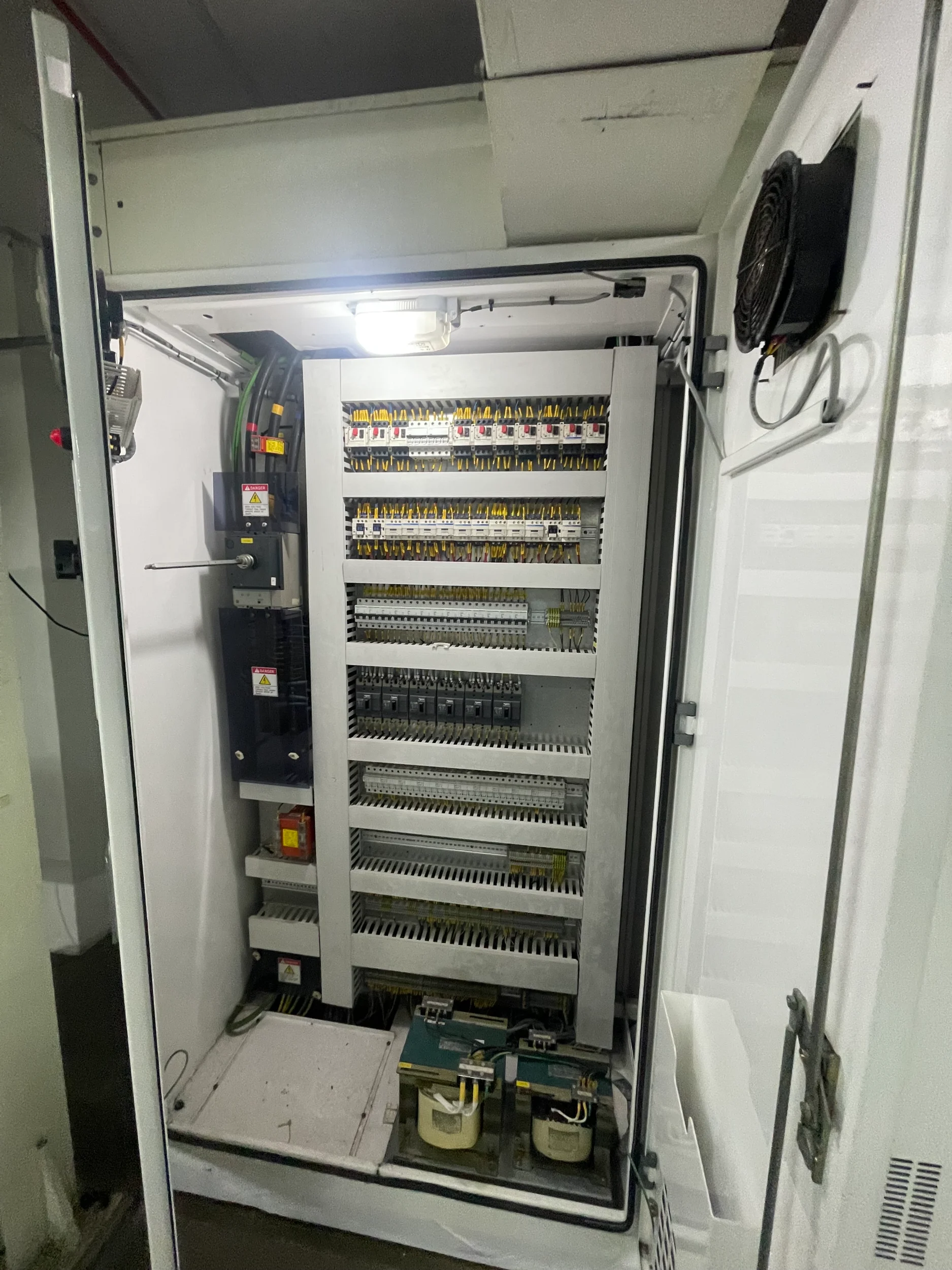

• — Controls:
  • — Siemens PLCs and HMIs
  • — Profibus network
  • — Ethernet remote access diagnostics
  • — Wonderware software
