Used F&K Gearless CI Flexographic Press Flexpress 16S+ Downstream MRT Drybond Lamination and Rotogravure Sections

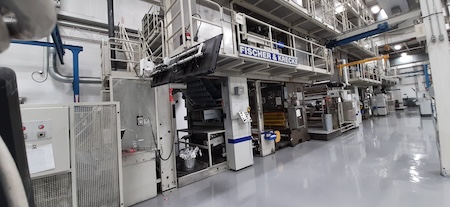

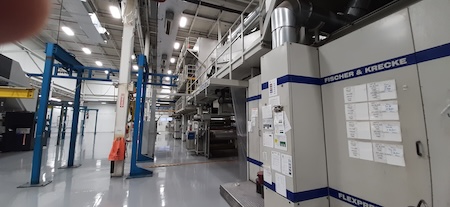

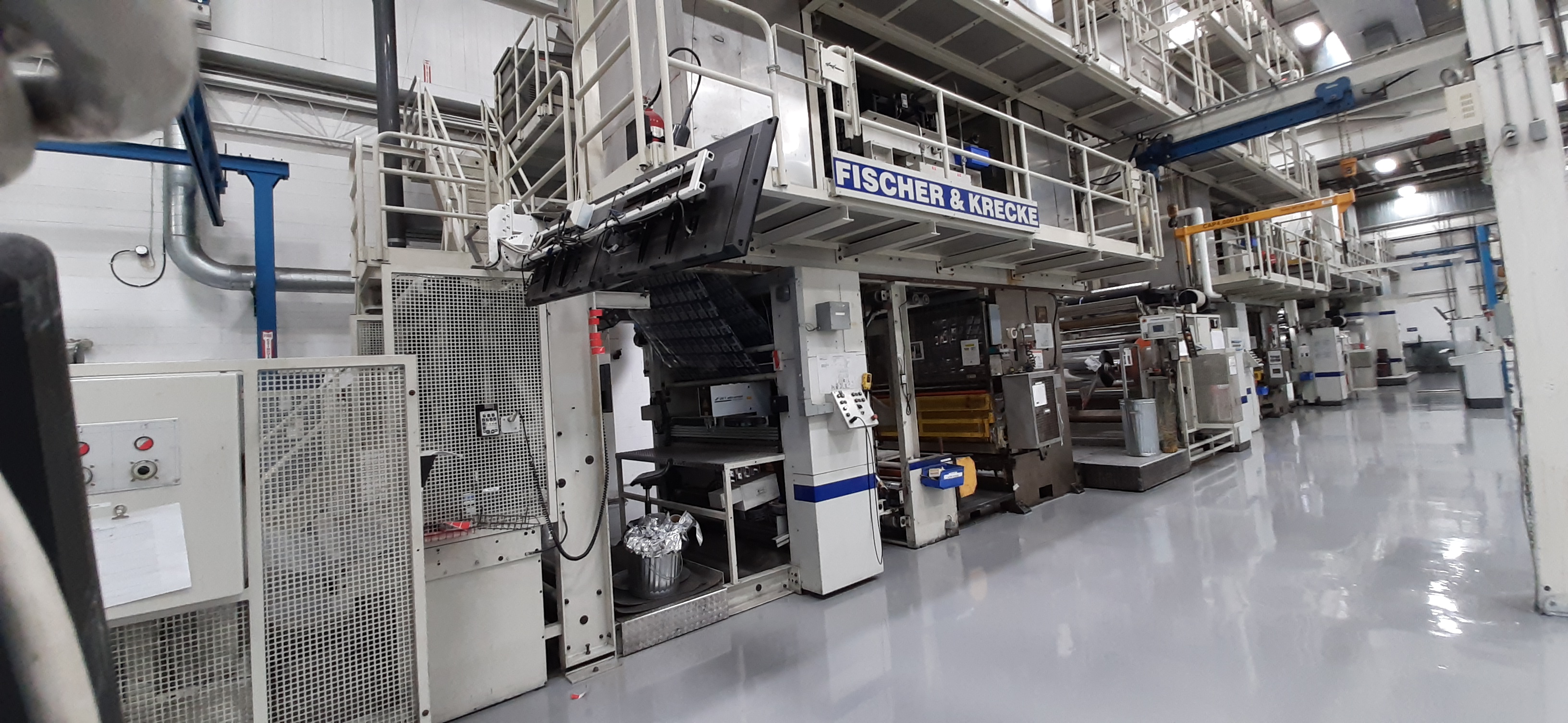

55" Fischer & Krecke Flexpress 16S+ Gearless CI Flexographic Press with Downstream MRT Lamination and Rotogravure

• — Print width range: 24" - 53"
• — Flexographic repeat range: 12.6" - 31.5"
• — Rotogravure cold seal repeat range: 15" - 32"
• — Maximum speed: 1500 fpm

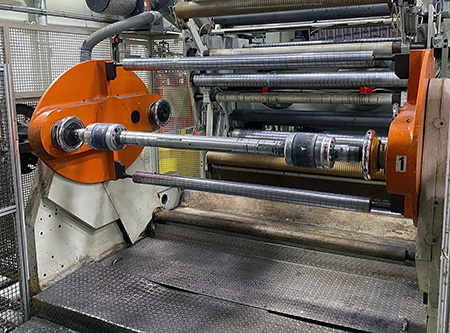

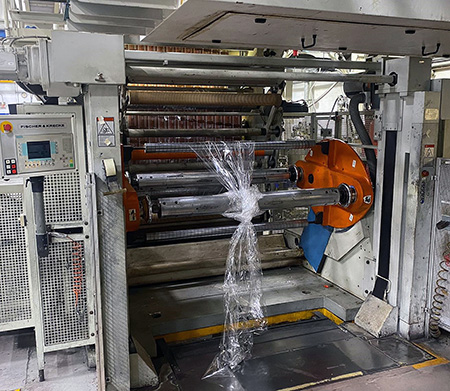

• — Unwinds:
  • — 40" maximum diameter phantom axis automatic primary turret unwind
  • — 40" maximum diameter phantom axis automatic secondary turret unwind
  • — 3" shaft unwinds

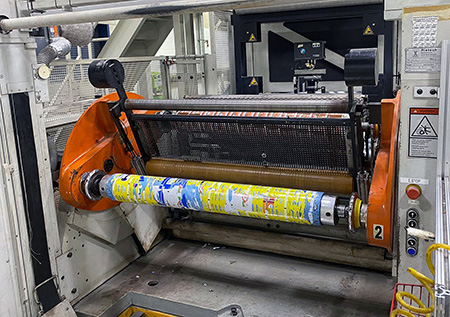

• — Rewind:
  • — 40" maximum diameter phantom axis automatic turret rewind
  • — 3" shaft rewind
• — Central impression drum: 75" diameter hard chrome coated CI drum

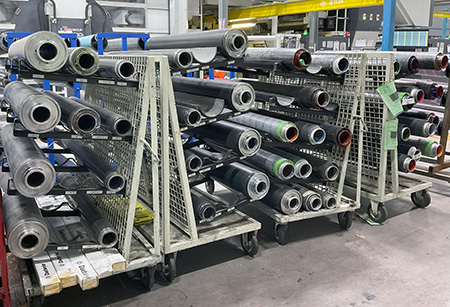

• — Print decks: Eight flexographic print decks with chambered doctor blades and sleeved plate and anilox system

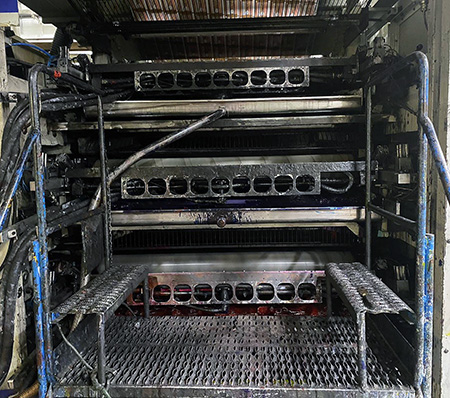

• — Dryers:
  • — 42' two-zone dryer between decks and downstream
  • — 42' two (2) zone dryer in downstream sections
• — Web handling and inspection:
  • — Web threading
  • — Fife edge guides
  • — Web video inspection
  • — Web break detection
  • — Turn bars
• — Corona treatment: Three single-side corona treaters
• — MRT drybond lamination section:
  • — MRT drybond lamination section downstream of press
  • — MRT gravure coater integrated in lamination section
• — MRT rotogravure section for cold seal:
  • — MRT rotogravure section downstream
  • — MRT gravure coater for cold seal
  • — Registration control on rotogravure section

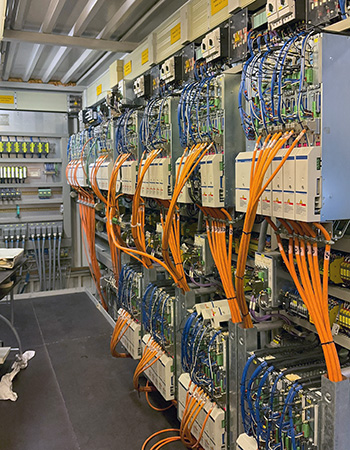

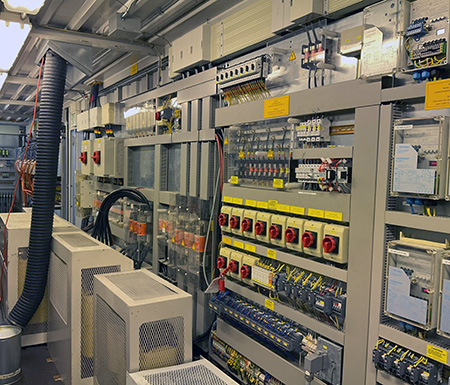

• — Drives and controls:
  • — Indramat drives

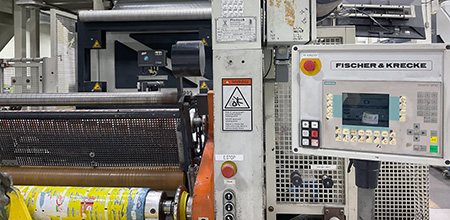

  • — Siemens S7 PLC and HMI
