Used Bruckner 3-layer BOPP Film Extrusion Line

Bruckner 3-Layer BOPP Film Extrusion Line

• — Output Capacity: 2500 kg/h
• — Film Structure: A B C

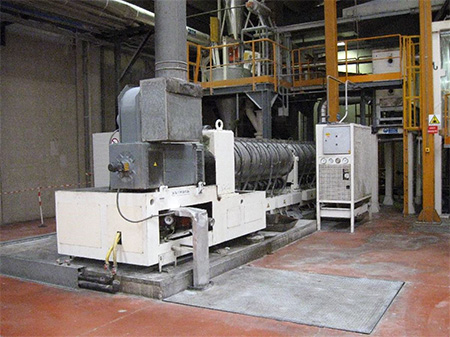

• — Extruders: Three extruders
• — Die: 1054 mm Simplast automatic die
• — Chill Roll: 2400 mm x 1400 mm diameter chill roll
• — MDO:
  • — Roller width: 1200 mm
  • — Ratio: 1:1 - 10:1
  • — Slow section speed: 2 x 60 m/min
  • — High speed section: 9 x 250 m/min
  • — Preheat rolls: 18
  • — Pull rolls: 6
  • — Stabilizing rolls: 2

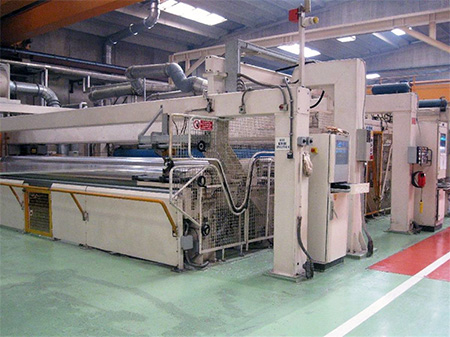

• — TDO:
  • — Maximum stretching width: 8500 mm
  • — Effective max capacity: 6700 - 7500 mm
  • — Heating zones: 7
• — Rewind: 450 mm maximum diameter rewind with 40 shafts

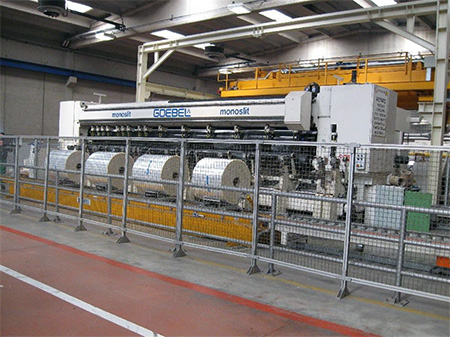

• — Slitter: 1988 7200 mm Goebel Monoslit film slitter
• — Slitter Specifications:
  • — Unwind diameter: 1000 mm
  • — Rewind diameter: 900 mm
  • — Speed: 800 m/min
• — Drives: Simoreg drives (2007)
• — Treaters:
  • — Two corona treaters
  • — Two corona top treaters
  • — Flame treater

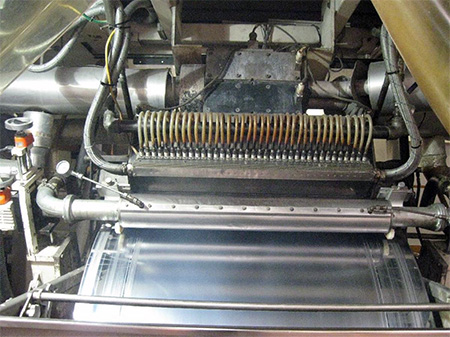

• — Die Heating:
  • — Heating bolts: 37
  • — Thickness controls: 2
  • — Heating zones: 7
  • — Power: 45 kW
  • — Die lip gap range: 1.7 - 3.5 mm
• — Included Components:
  • — Trim system
  • — All available spares
• — Services Available:
  • — Match marking
  • — Disassembly and loading into buyer's containers
  • — Installation and startup with operator training
