Used Brückner 3-Layer BOPP Film Extrusion Line
- — Line type: 3-layer BOPP film extrusion and stretching line
- — Configuration: Three-layer coextrusion line with chill roll, MDO, corona treatment, pull roll unit, thickness gauge, trim system, and turret rewind

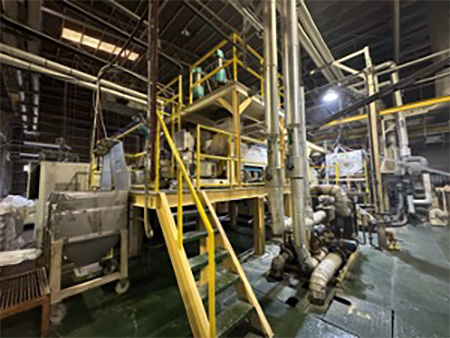

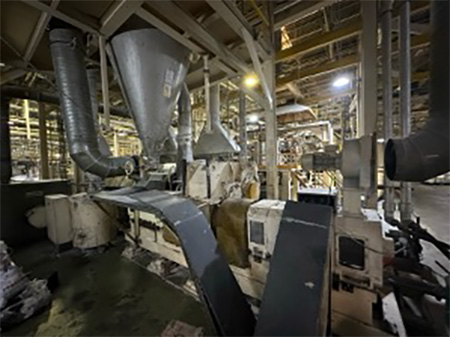

- — Extruders:
- — 90 mm coex extruder with 3-component dosing system, approx. 125 kg/h
- — 200 mm / 250 mm cascade extruder with 4-component dosing system, approx. 2000 kg/h
- — 90 mm coex extruder with 3-component dosing system, approx. 125 kg/h

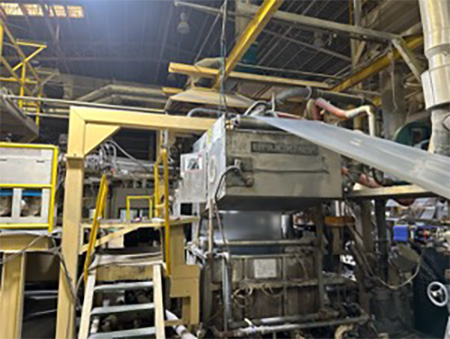

- — Die: 1025 mm Simplas automatic flat die with 32 thermal bolts
- — Chill roll: Chill roll in water bath for primary film cooling

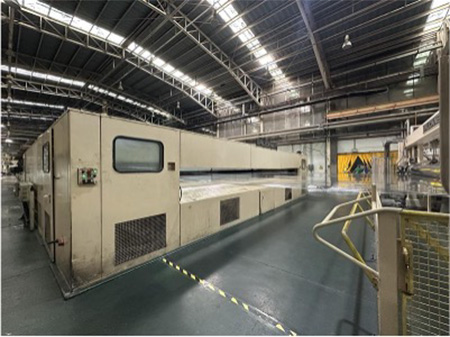

- — MDO section:
- — Pre-heating rollers: 12 total (6 chrome-plated surface, 6 Teflon surface), approx. 614 mm diameter
- — Stretching rollers: 6
- — Annealing rollers: 2
- — Rollers heated by thermal oil
- — Pre-heating section length: approx. 15 m
- — Stretching section length: approx. 6 m
- — Annealing and heat-set section length: approx. 18 m
- — Sections heated by thermal oil (thermal oil heater included)
- — Corona treatment: Two Mero corona treaters
- — Pull roll unit: Pull roll unit for film transport and tension control
- — Thickness gauge: Integrated thickness gauge for film measurement
- — Trim system: Trim system for edge trim removal

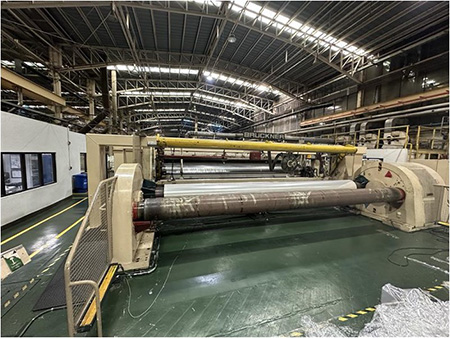

- — Turret rewind: 6600 mm net turret rewind
- — Slitter: Atlas slitter, maximum roll diameter 1000 mm
- — Controls: Siemens S7 PLC for line control and automation
- — Utilities:
- — Water chiller included
- — Thermal oil heater included
- — Included components:
- — Atlas slitter (max. 1000 mm roll diameter)
- — Water chiller
- — Thermal oil heater
- — All available spare parts
- — Services available:
- — Match marking, disassembly, and loading into buyer-supplied containers
- — Qualified technicians for installation and startup of the BOPP line
- — Operator training for the BOPP line
- — Condition: Used, offered with optional disassembly, relocation, installation, and training services
