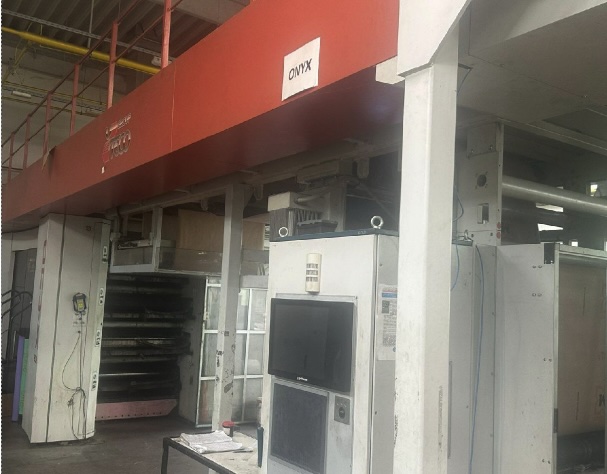

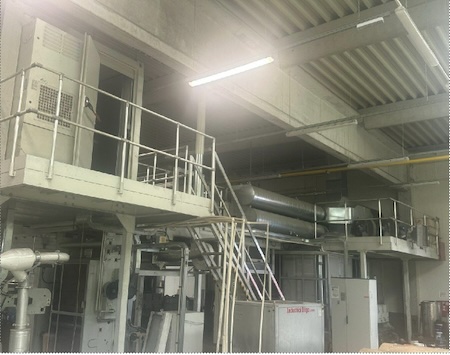

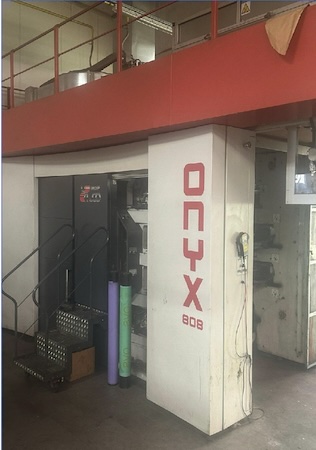

Used Uteco Flexographic CI Press Model Onyx 808

Used Uteco Onyx 808 8-Color Gearless Flexographic CI Press

• — Print width: 51.2 inches maximum (1350mm), 51.2 inches nominal, 26.6 inches minimum (675mm)
• — Repeat range: 13.8 - 33.5 inches (350mm - 850mm)
• — Unwind station: automatic turret unwind, maximum roll diameter 51.2 inches (1300mm), dancer roll tension control, automatic flying splice, roll loading
• — Rewind station: automatic turret rewind, maximum roll diameter 51.2 inches (1300mm), automatic flying splice, roll unloading
• — Print decks: eight (8) electronically controlled, motorized CI flexo decks, gearless design, four motors per deck, CNC positioning
• — Sleeves: eight (8) printing sleeves with fast sleeve change system
• — Inking & doctoring: chambered doctor blade systems with washing/cleaning system
• — Drying: between-deck and overhead drying, hot oil heated
• — Web guiding: BST edge guide system
• — Video & inspection: Grafikontrol Matrix video system
• — Registration control: interactive registration control system
• — Drives: AC motors and drives throughout the press
• — Controls & supervision: computer supervision of press functions
• — Condition: used gearless CI flexographic printing press
