Used 2013 1050mm W&H Miraflex 8-Color CI Flexo Press

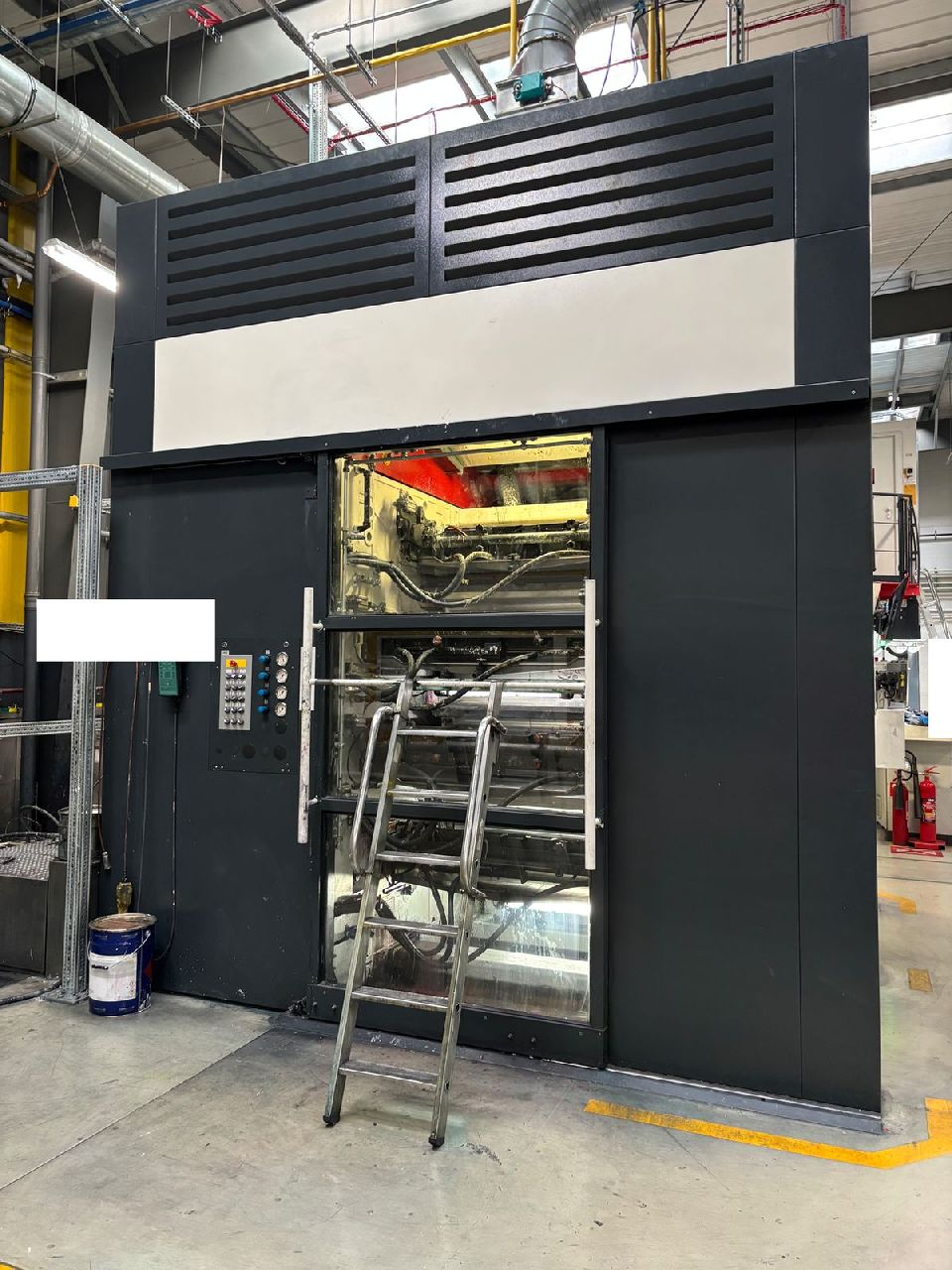

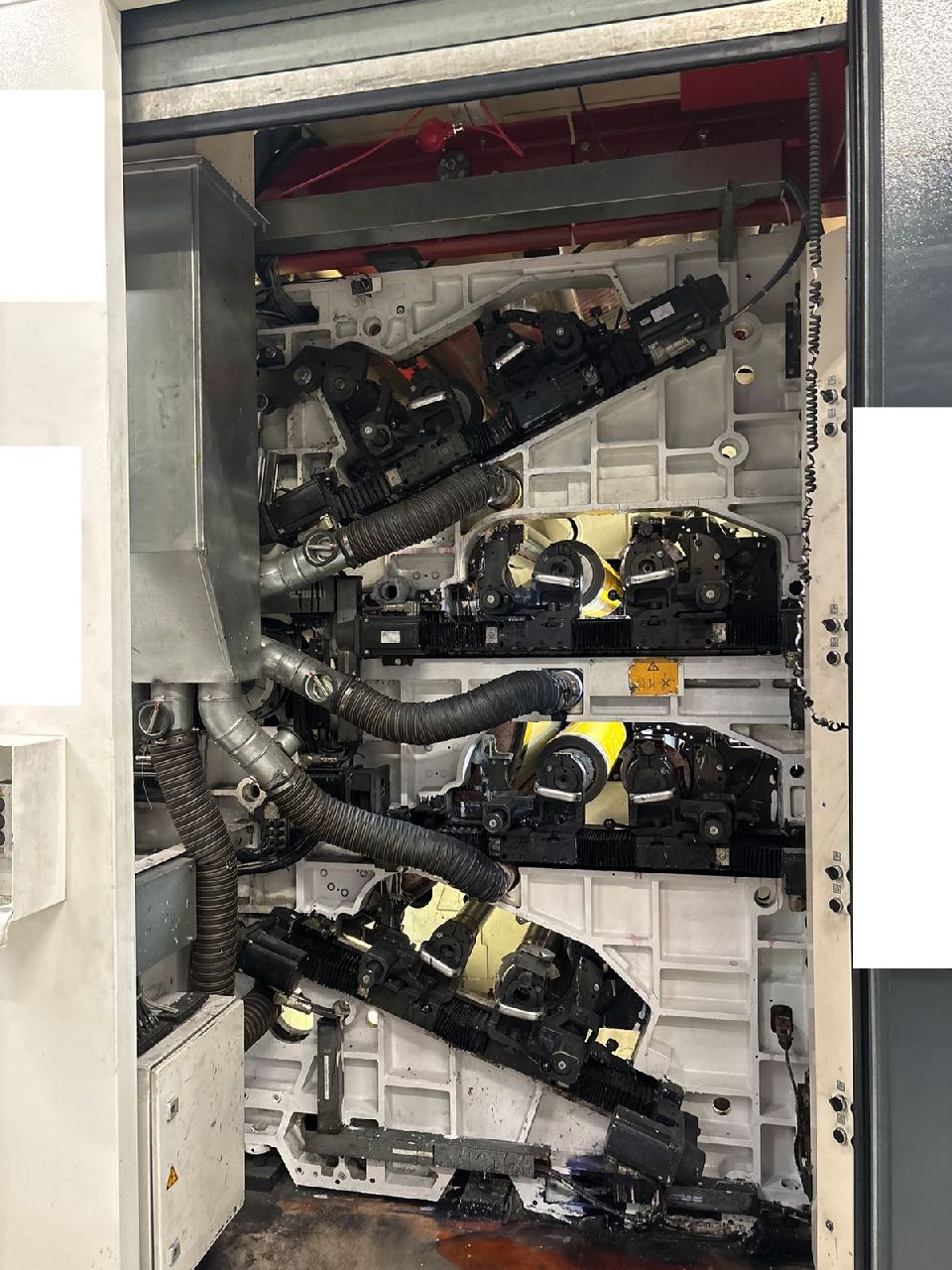

Windmöller & Hölscher Miraflex 8-Color Gearless Flexographic Press

• — Manufacturer: Windmöller & Hölscher
• — Model: Miraflex
• — Year: 2013
• — Colors: 8
• — Web and print specs:
  • — Max web width: 1050 mm
  • — Max print width: 1000 mm
  • — Min print repeat: 300 mm
  • — Max print repeat: 800 mm
  • — Max working speed: 400 m/min
• — Drive and control:
  • — Gearless drive system
  • — Fast sleeve change
  • — 4 motors per deck with CNC position system
  • — Computer supervision
• — Web handling:
  • — Unwinder: turret automatic, max reel diameter 800 mm
  • — Rewinder: turret automatic, max reel diameter 800 mm
• — Inking and washing:
  • — Closed chamber doctor blade inking system
  • — TURBOCLEAN automatic washing system
  • — Automatic viscosity control
• — Drying system:
  • — 2 drying zones
  • — 4 fans
  • — 2 gas burners
• — Surface treatment and inspection:
  • — Corona treatment
  • — Video camera (2024) with automatic quality inspection

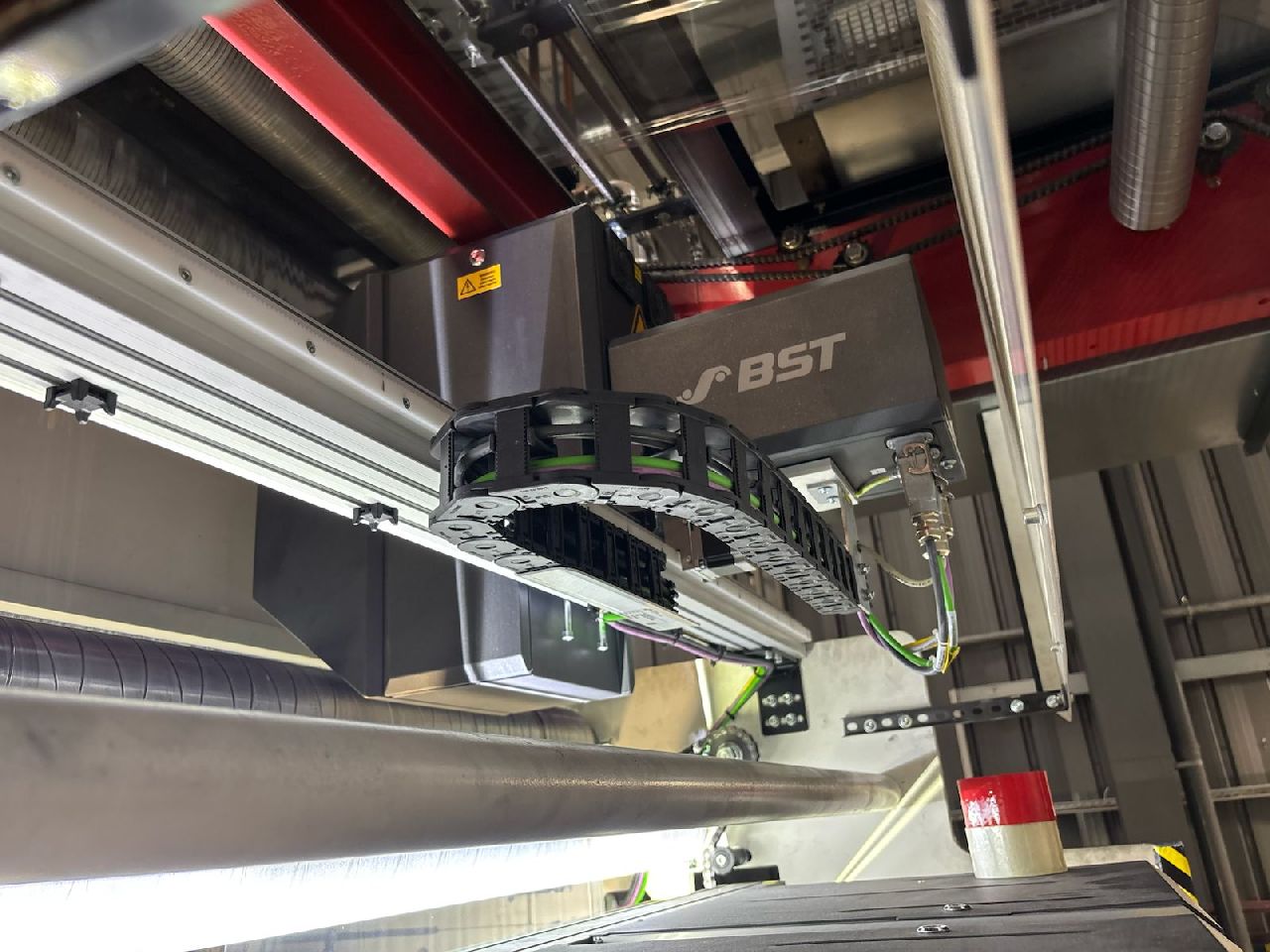

  • — BST inspection system
• — Automation and set-up features:
  • — EASY SET HD impression setting
  • — EASY REG S register setting
  • — EASY COL colour matching
• — Ceramic anilox sleeves (32 total):
  • — 10 × 400 L/cm, volume 3.5
  • — 4 × 470 L/cm, volume 3.5
  • — 4 × 340 L/cm, volume 5.5
  • — 2 × 300 L/cm, volume 7
  • — 2 × 280 L/cm, volume 8
  • — 2 × 200 L/cm, volume 10
  • — 2 × 160 L/cm, volume 10
  • — 2 × 120 L/cm, volume 12
  • — 2 × 100 L/cm, volume 15
  • — 1 × 140 L/cm, volume 16.5
  • — 1 × 60 L/cm, volume 20
• — Print sleeves:
  • — 260 print sleeves total, 8 per repeat size
  • — Repeat sizes (mm): 300, 310, 320, 325, 330, 340, 350, 355, 360, 370, 380, 385, 390, 400, 410, 420, 430, 440, 450, 460, 470, 480 (×16), 500, 510, 520, 540, 560, 580, 590, 620, 660
