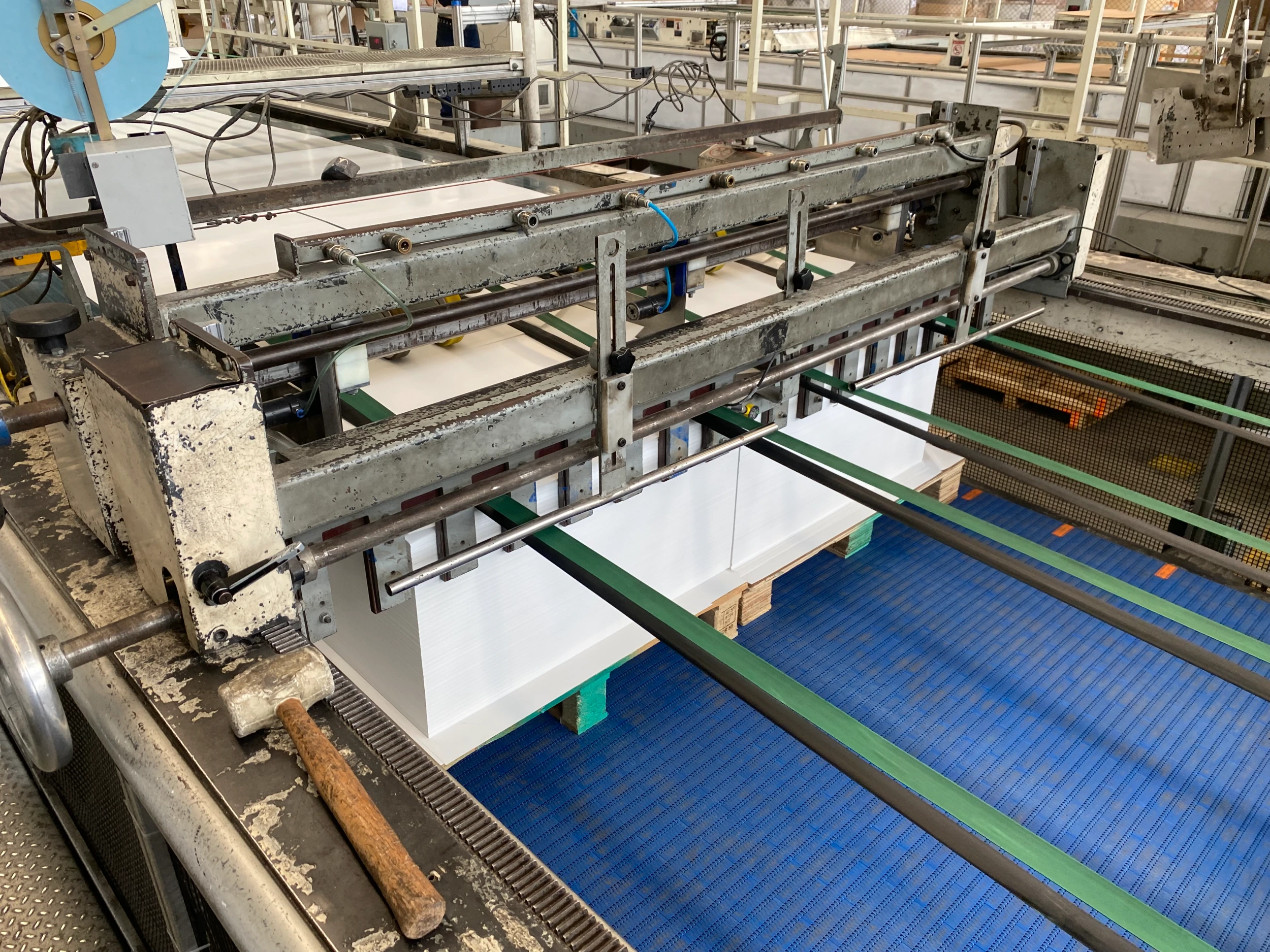

Used Marquip Ward Sheet Wizard 1850 Dual Rotary Sheeter (6 Roll Stand)

MarquipWardUnited Sheet Wizard 1850 Dual Rotary Sheeter

• — Year of manufacture: 2009
• — Maximum sheet width: 1850 mm
• — Optional reel width: 1900 mm
• — Maximum reel diameter: 2100 mm
• — Maximum reel weight: 3410 kg
• — Core diameter range: 76 mm - 305 mm
• — Maximum speed: 335 m/min
• — Sheet length range: 400 mm - 1650 mm
• — Length accuracy:
  • — Single web: ±0.38 mm
  • — Multi web: ±0.5 mm
• — Knife capacity:
  • — Single web: 1000 gsm
  • — Combined multi web: 750 gsm

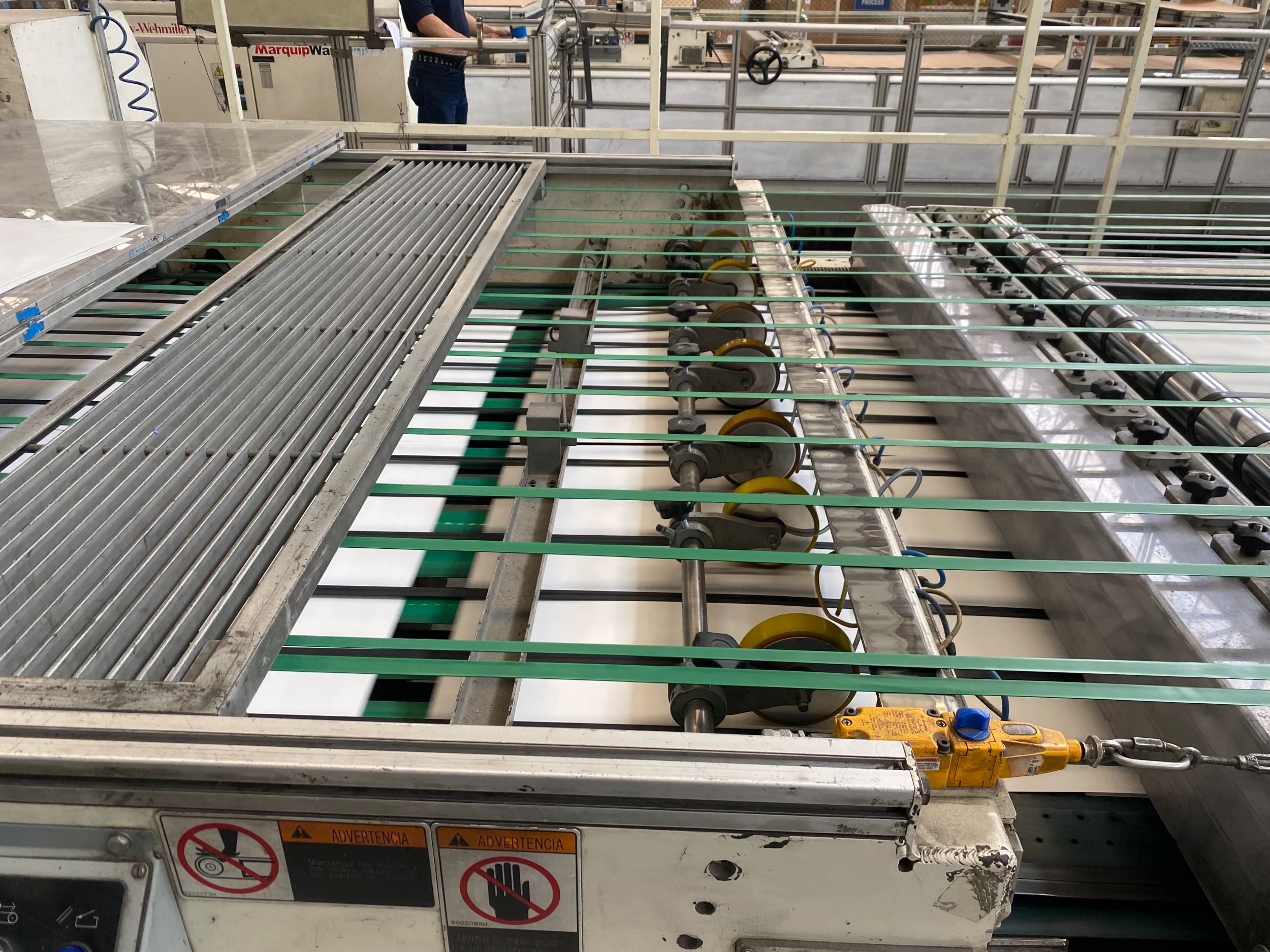

• — Slitters: Two sets of four, maximum 2 x 600 gsm double level
• — Unwind system:

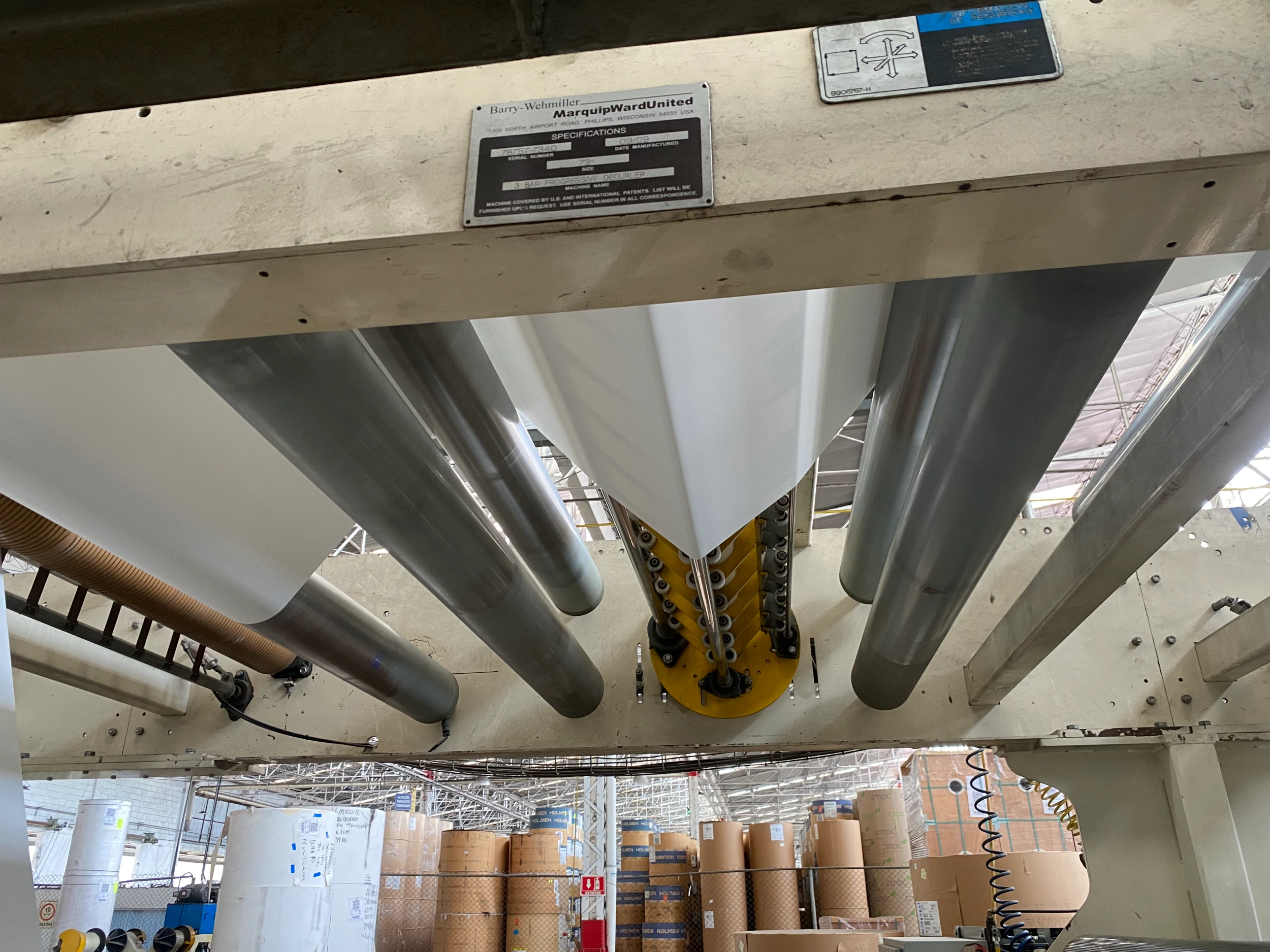

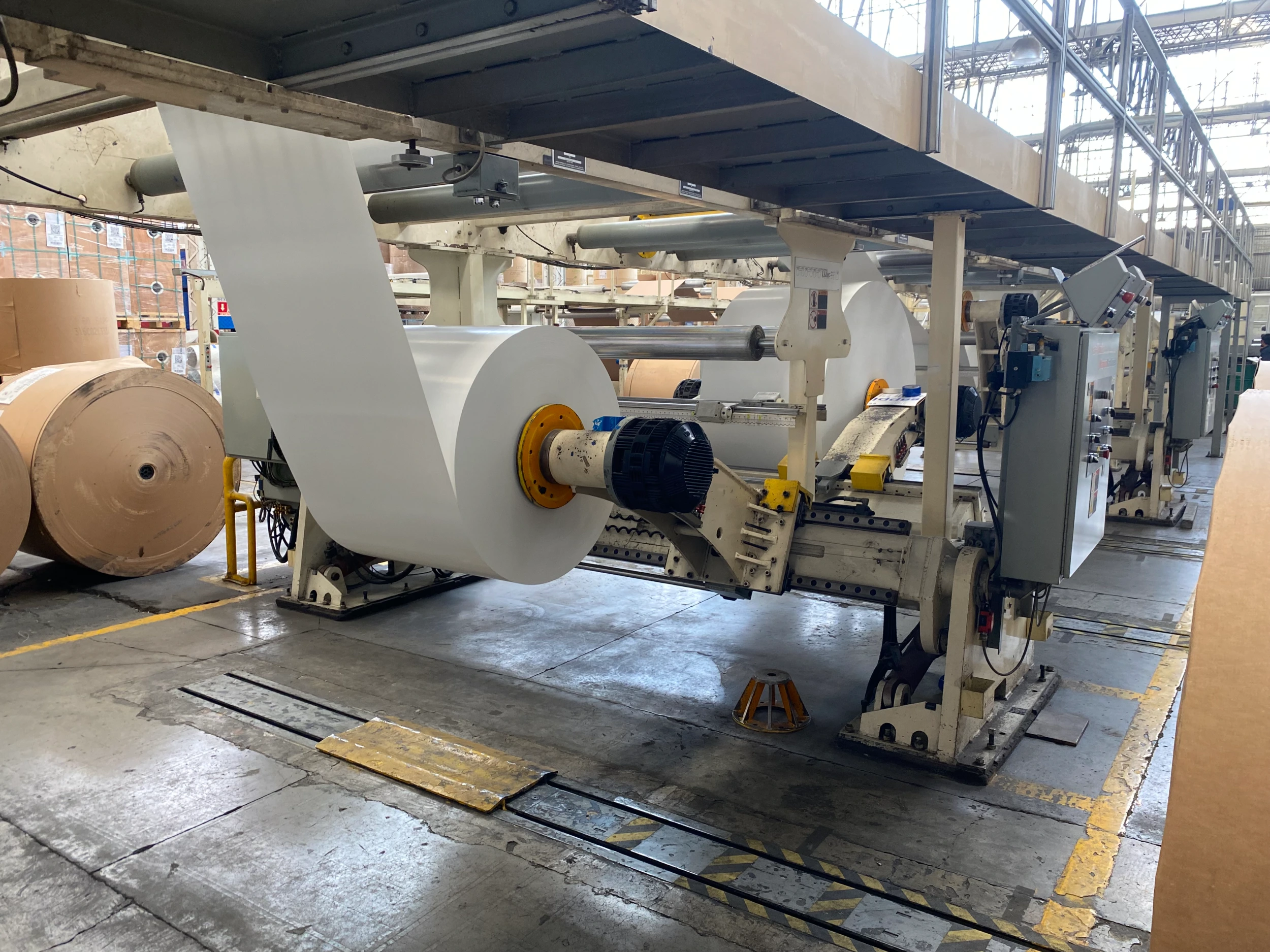

  • — Six shaftless floor pickup unwinds handling rolls up to 2100 mm diameter

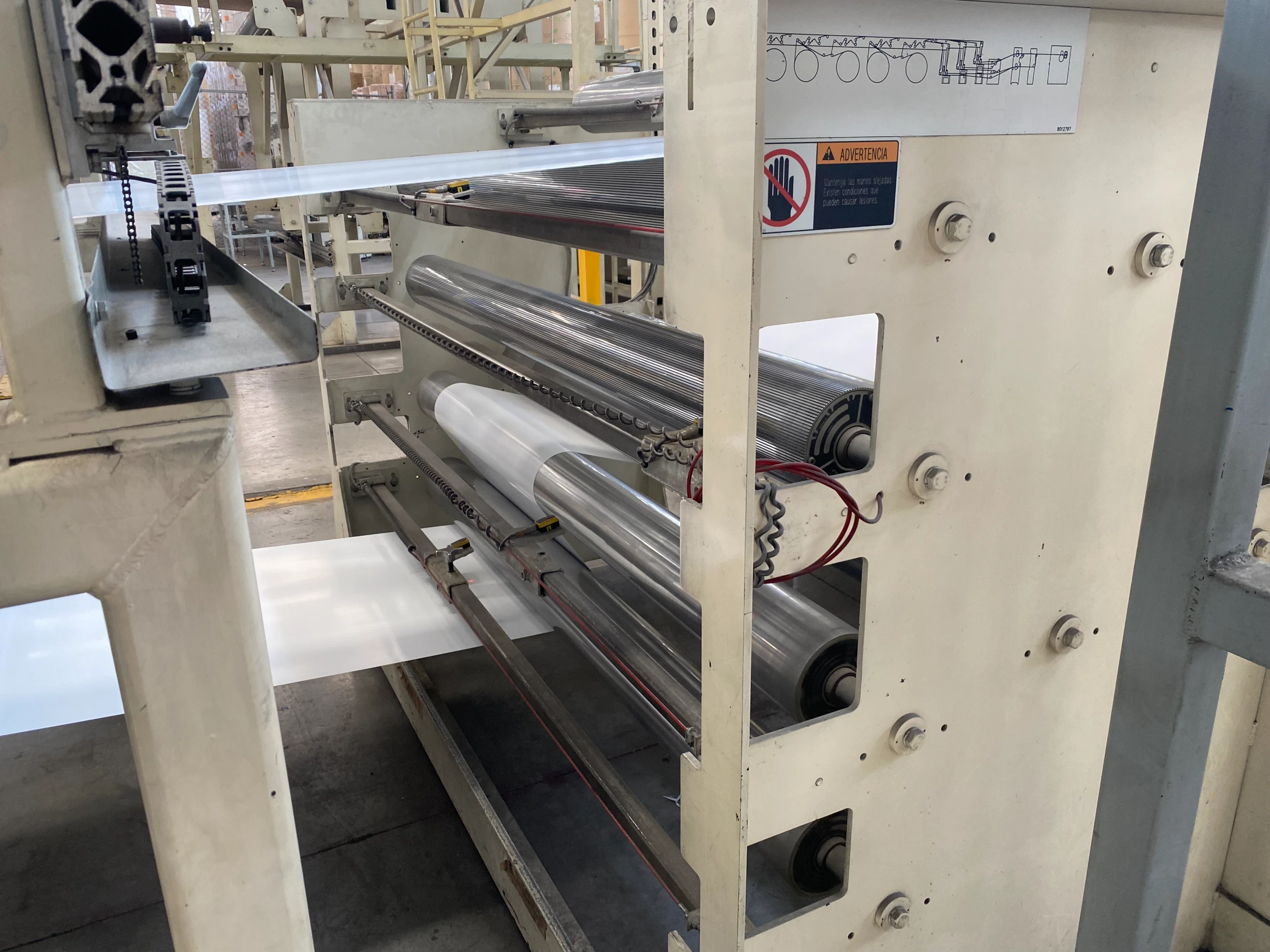

  • — Each unwind equipped with overhead decurlers
  • — Each unwind equipped with tension controls
• — Web control and detection:

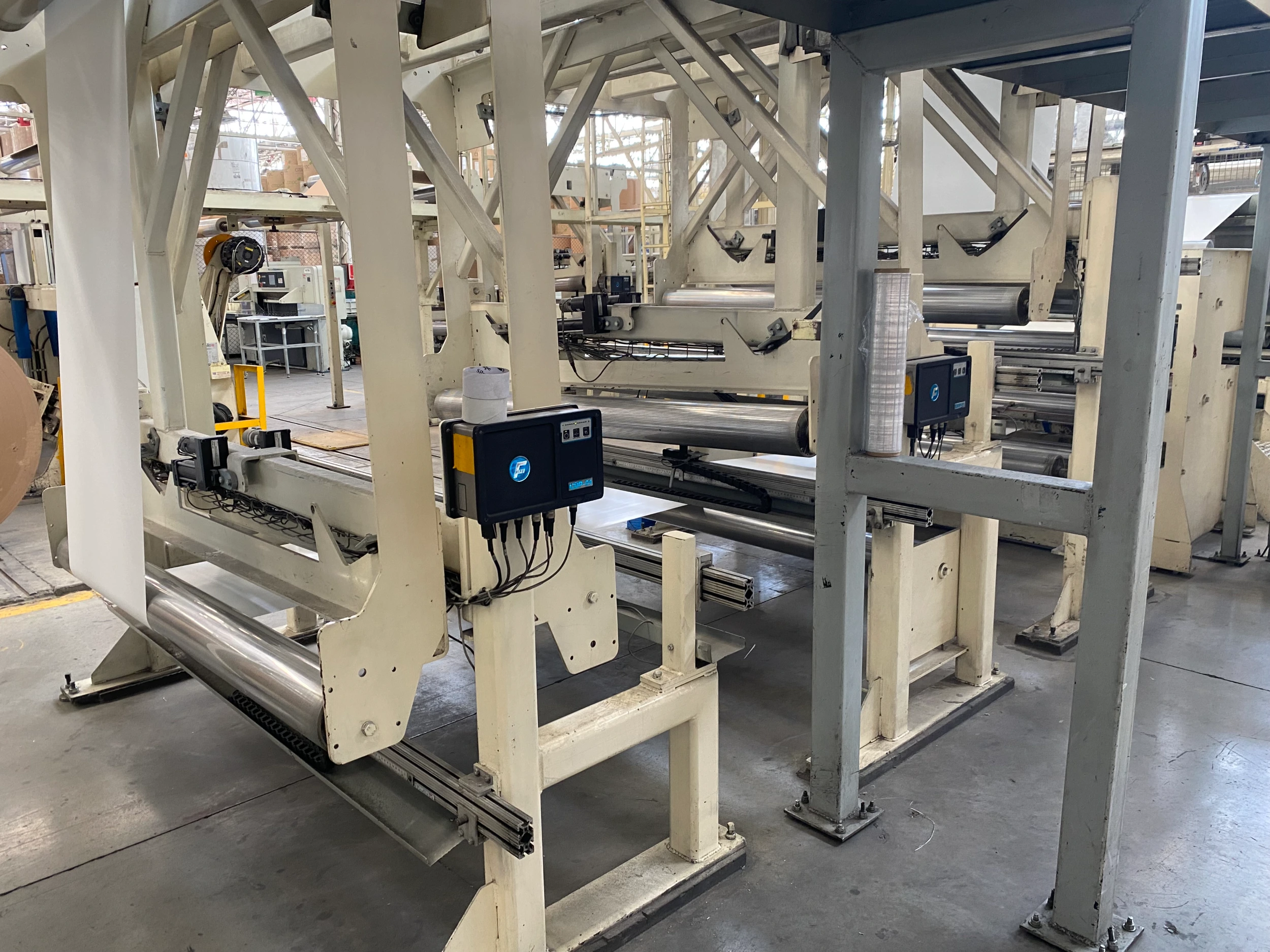

  • — FIFE web alignment
  • — Splice sensor detector that automatically discards joined sections

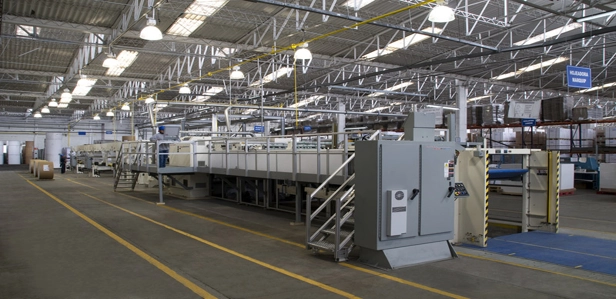

• — Overall machine dimensions:
  • — Length: 42539 mm
  • — Width: 8586 mm
  • — Height: 3131 mm
