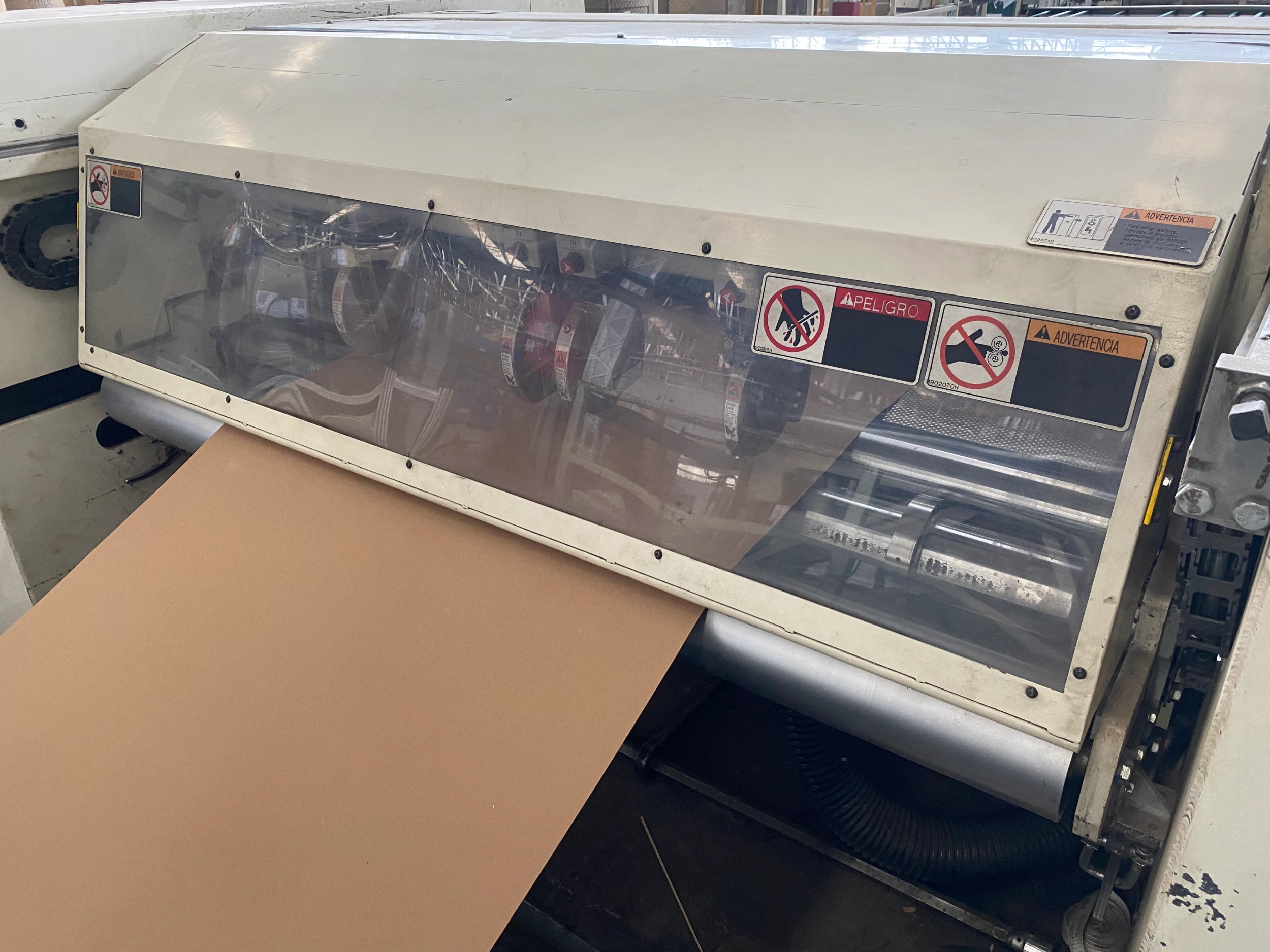

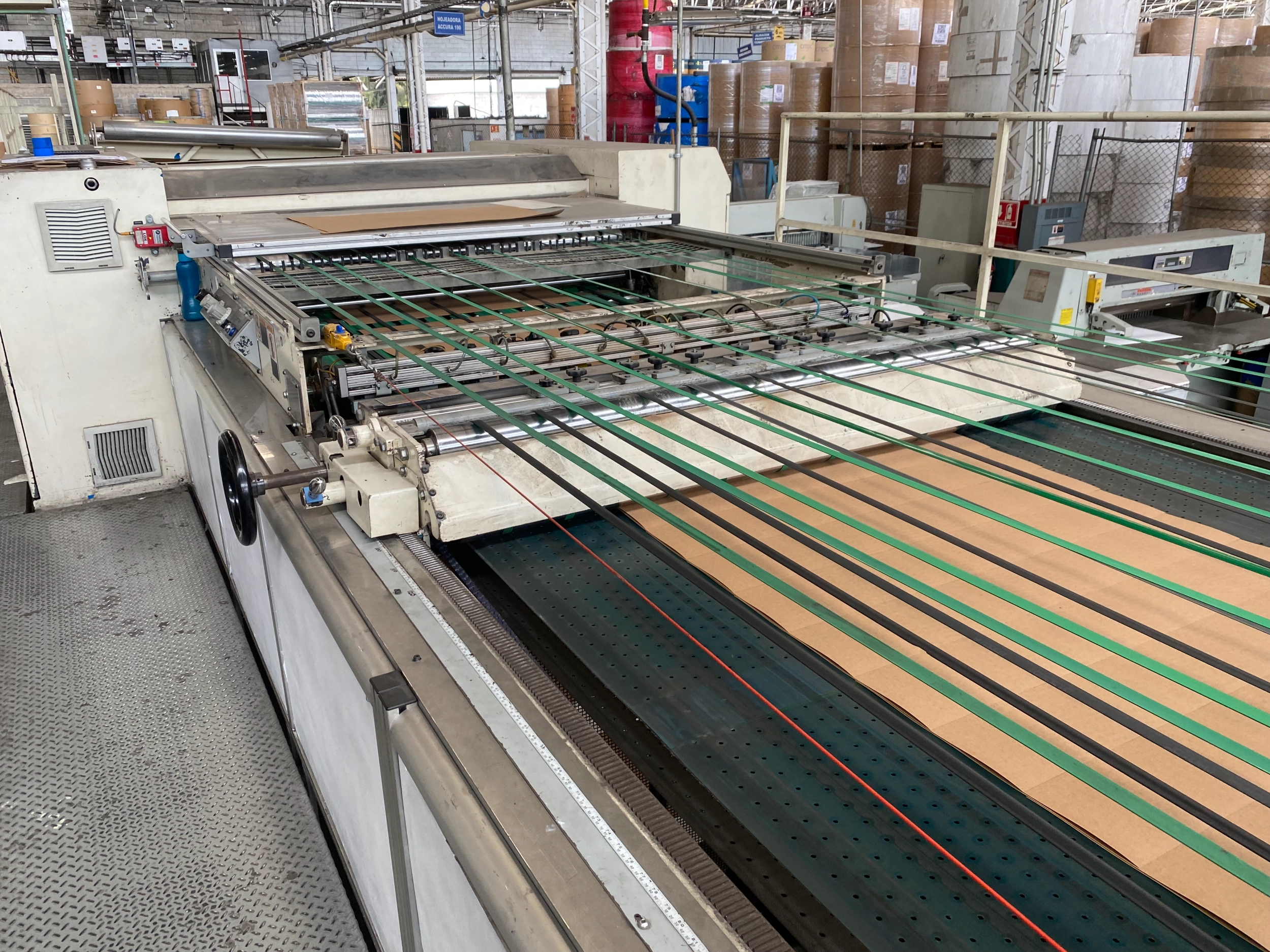

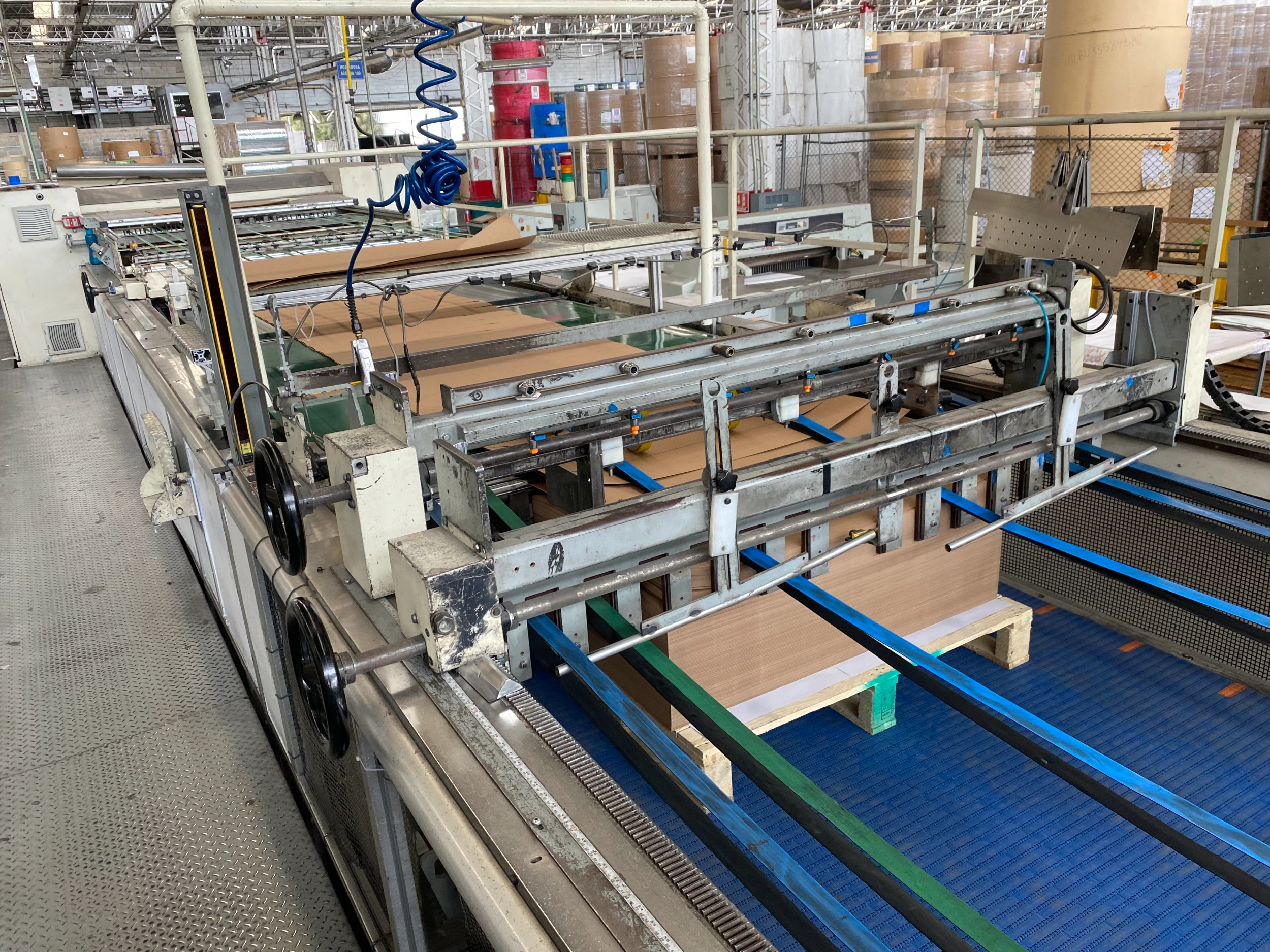

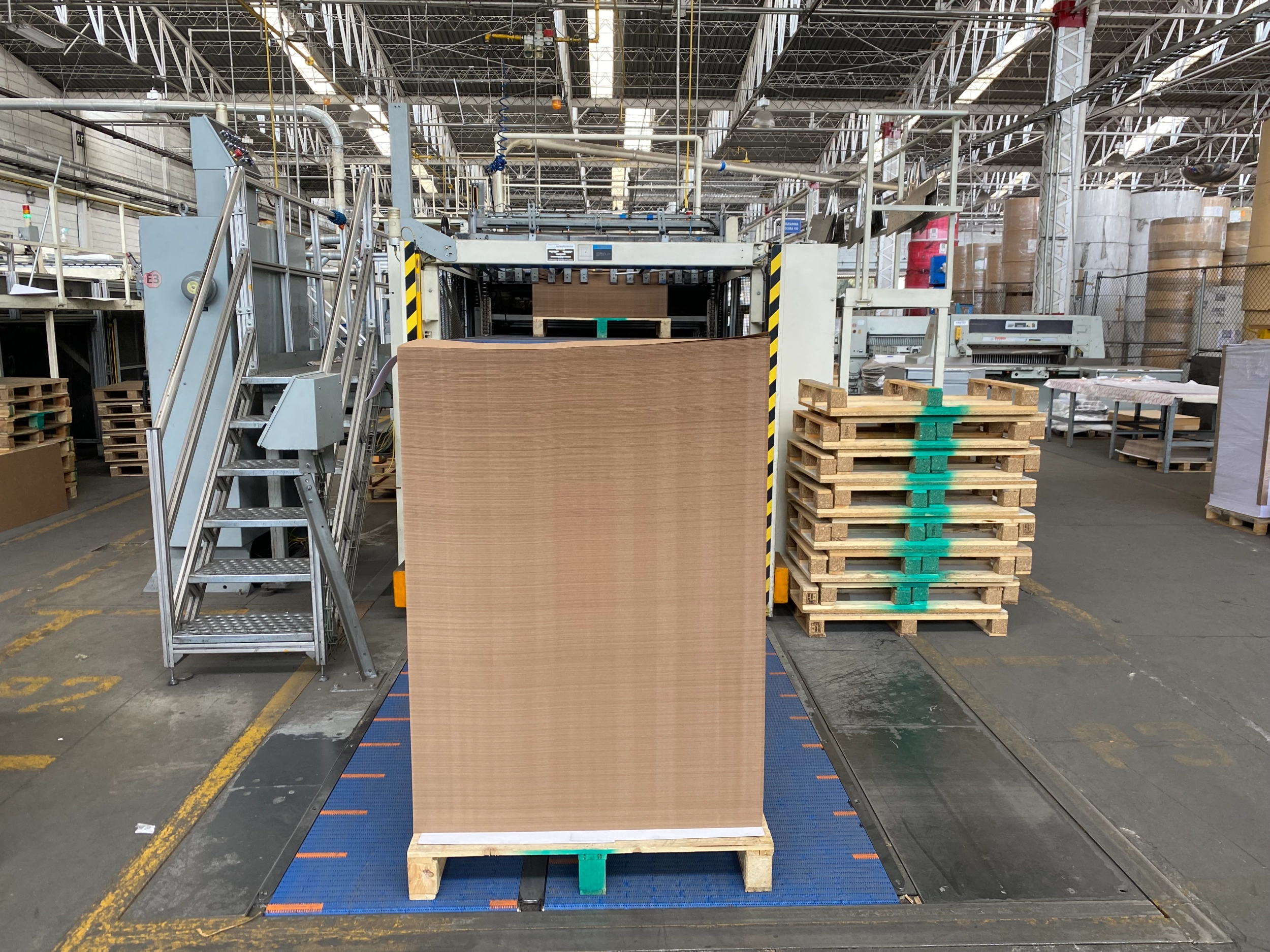

Used Marquip Ward Sheet Wizard 1650 Dual Rotary Sheeter (4 Roll Stand)

MarquipWardUnited Sheet Wizard 1650 Dual Rotary Sheeter

• — Year: 2010
• — Serial number: S/N69515
• — Capacity:
  • — Maximum sheet width: 1650 mm
  • — Optional reel width: 1700 mm
  • — Maximum reel diameter: 1850 mm
  • — Maximum reel weight: 3410 kg
  • — Maximum speed: 335 m/min
  • — Sheet length: 400 mm minimum to 1650 mm maximum
  • — Length accuracy: +/- 0.38 mm single web and +/- 0.5 mm multi web
  • — Knife capacity: 1000 gsm single web and 750 gsm combined multi web
  • — Slitters: one set of three, maximum 600 gsm single level
• — Roll / core sizes:
  • — Core diameter: 76 mm minimum to 305 mm maximum

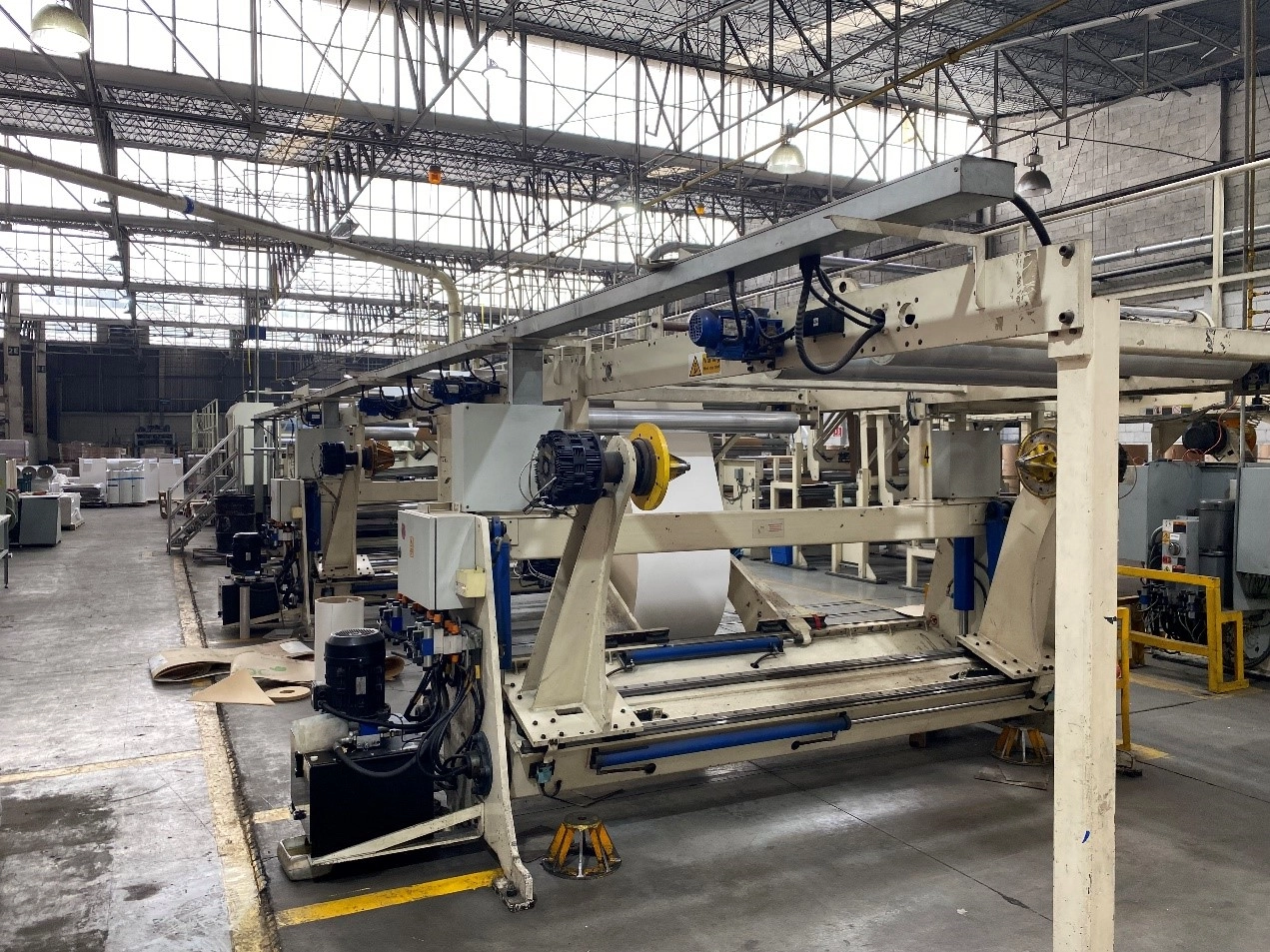

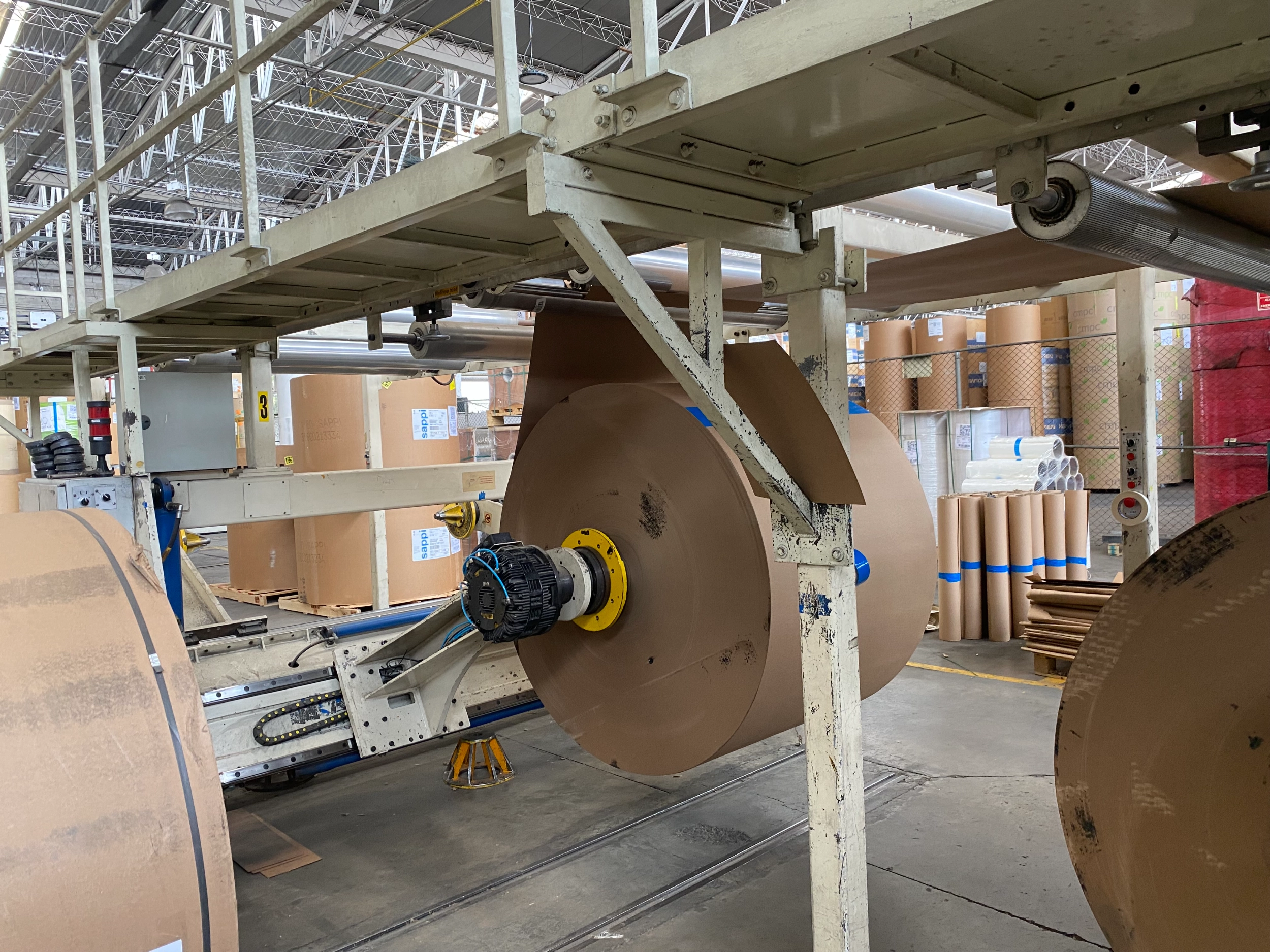

• — Construction: Dual rotary sheeter; four shaftless floor pickup unwinds handling rolls to 1850 mm diameter

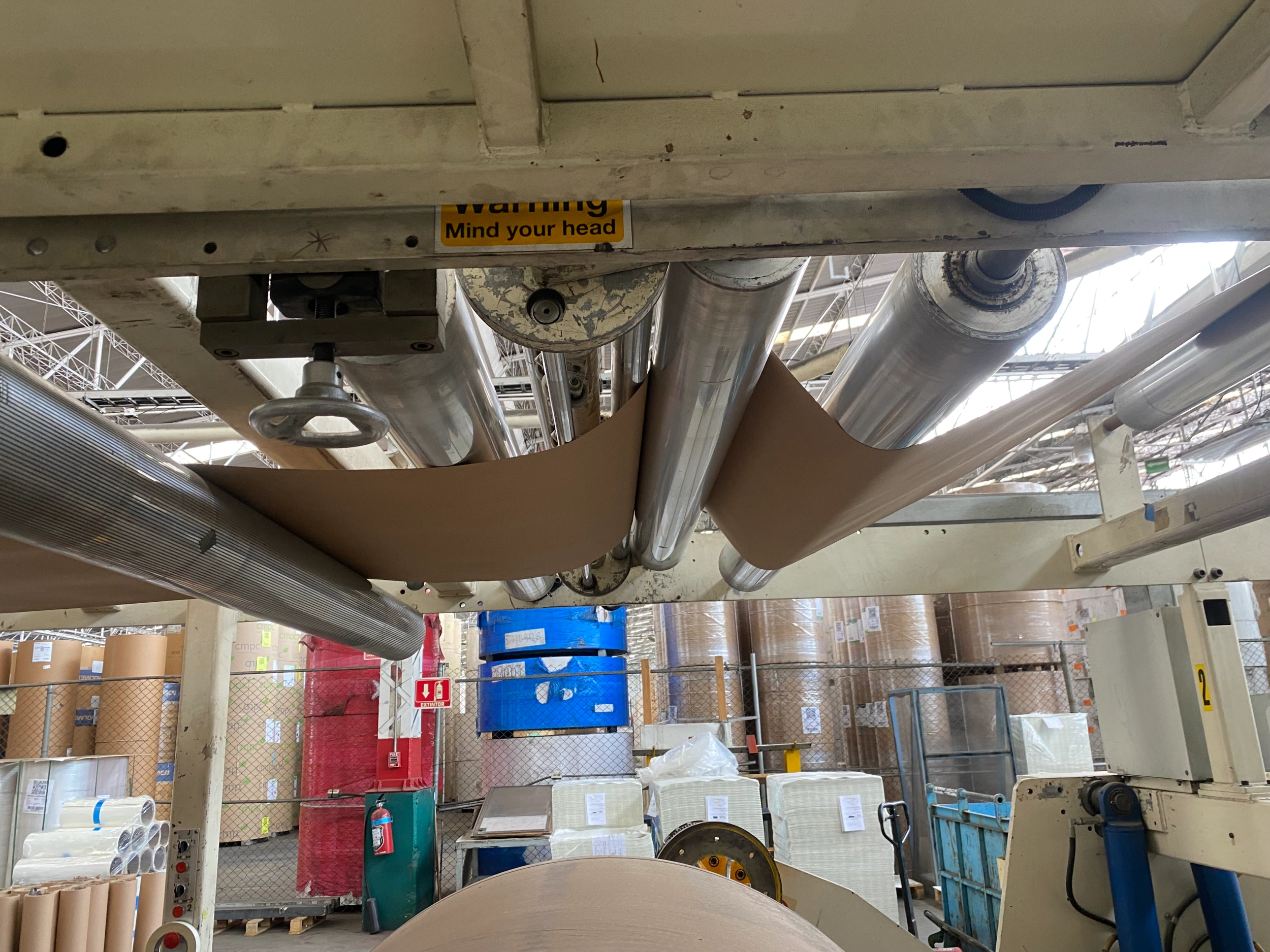

• — Drives / brakes: Overhead decurlers and tension controls
• — Included components:

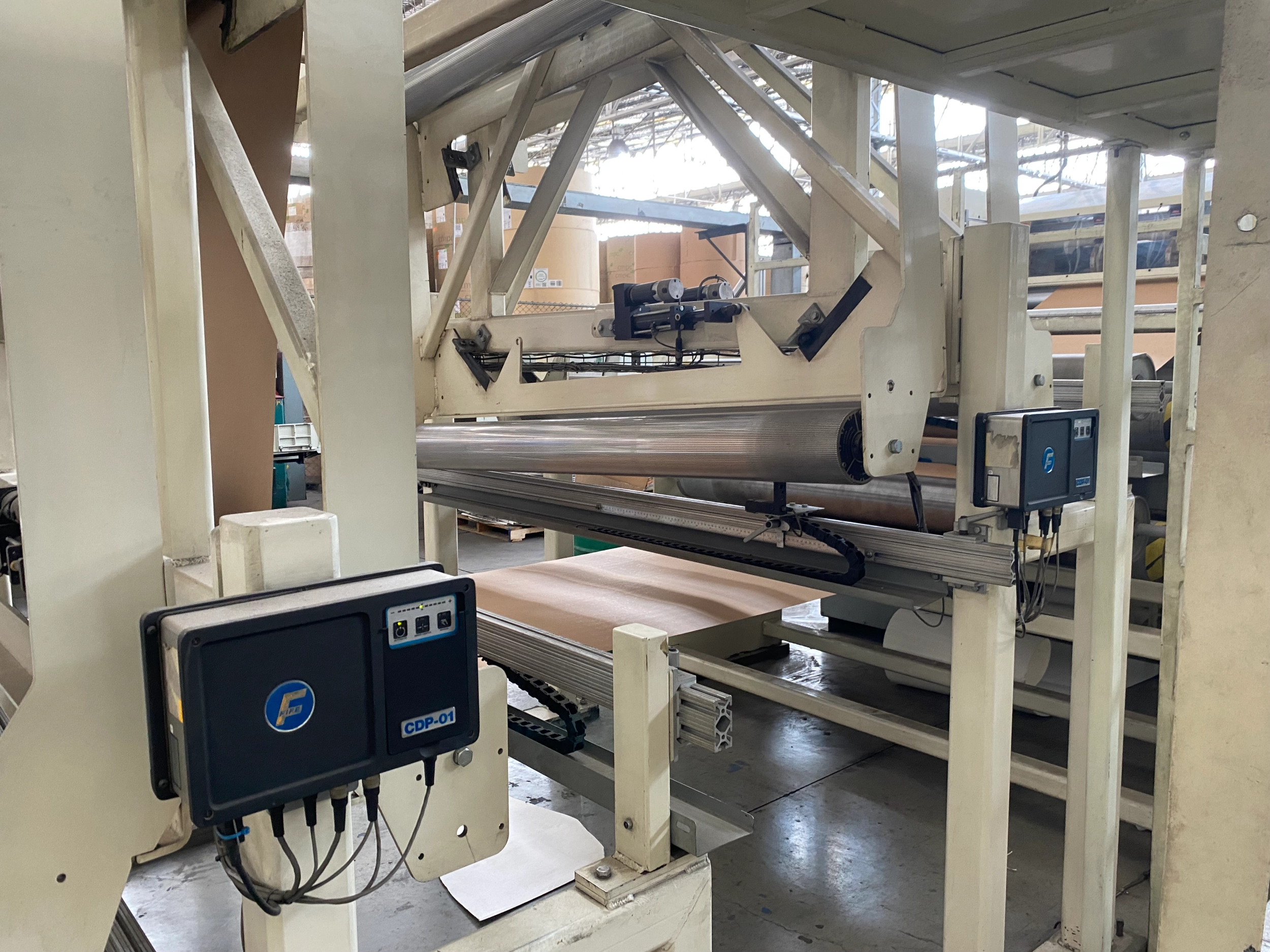

  • — FIFE web alignment
  • — Splice sensor detector that automatically discards joined sections
• — Dimensions:
  • — Length: 31592 mm
  • — Width: 6619 mm
  • — Height: 3131 mm
