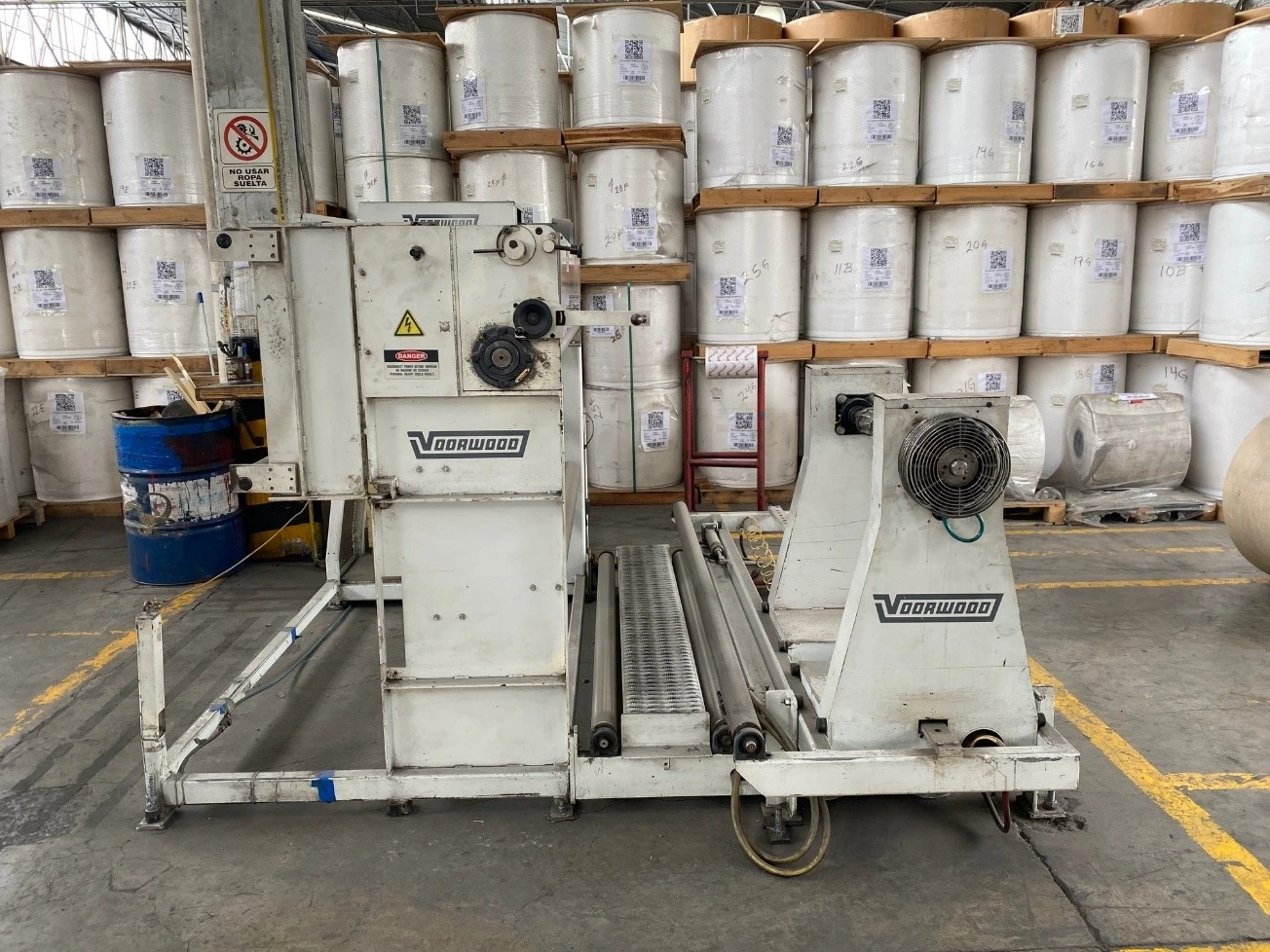

Used 2011 Voorwood 1650mm Duplex Slitter Rewinder

2011 Voorwood Duplex Slitter Rewinder

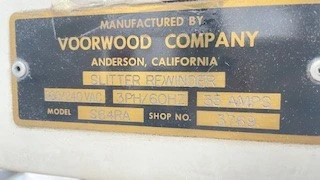

• — Manufacturer: Voorwood
• — Model: Duplex slitter rewinder
• — Year of manufacture: 2011
• — Input reel specifications:
  • — Input reel width: 305 mm - 1676 mm
  • — Maximum input reel diameter: 1067 mm
  • — Maximum reel weight: 1360 kg
  • — Core reel diameter: 76 mm - 152 mm
• — Rewind roll specifications:
  • — Rewind roll width: 25 mm - 1676 mm
  • — Maximum rewind roll diameter: 254 mm
• — Machine speed: Maximum 158 m/min
• — Slitting system:
  • — Slitter set of 15
  • — Rotary shear slitting station of modular design, detachable from main frame
  • — Powered upper and lower knife shafts, 60 mm diameter
  • — Male and female shear knife assemblies positionable anywhere within web area, held by eccentric locking keys
  • — Removable male shear knife shaft mounts to rigid dovetail bar assembly
  • — Dovetail bar assembly adjustable axially for shear knife face contact pressure and rotationally for knife overlap
  • — Two-position lock lever rotates dovetail bar assembly 90 degrees for knife shaft removal
  • — Rotary shear drive speed proportional to web speed or manually controlled by operator
• — Rewind system:
  • — Duplex air-expanding rewind shafts
  • — Flange-mounted shafts allow change to other shaft types or diameters
  • — Outboard rewind support swings open for removal of finished rolls from cantilevered rewind shafts
• — Controls and displays:
  • — Control panel located on left side of machine
  • — Machine activate and rewind controls
  • — Edge guide system control
  • — Rotary shear controls
  • — Counter and speed controls
  • — Torque control and emergency stop
  • — Visual display for rewind motor load
  • — Visual display for web length
• — Pneumatic controls:
  • — Rewind differential force control
  • — Web tension control
• — Condition: Used
