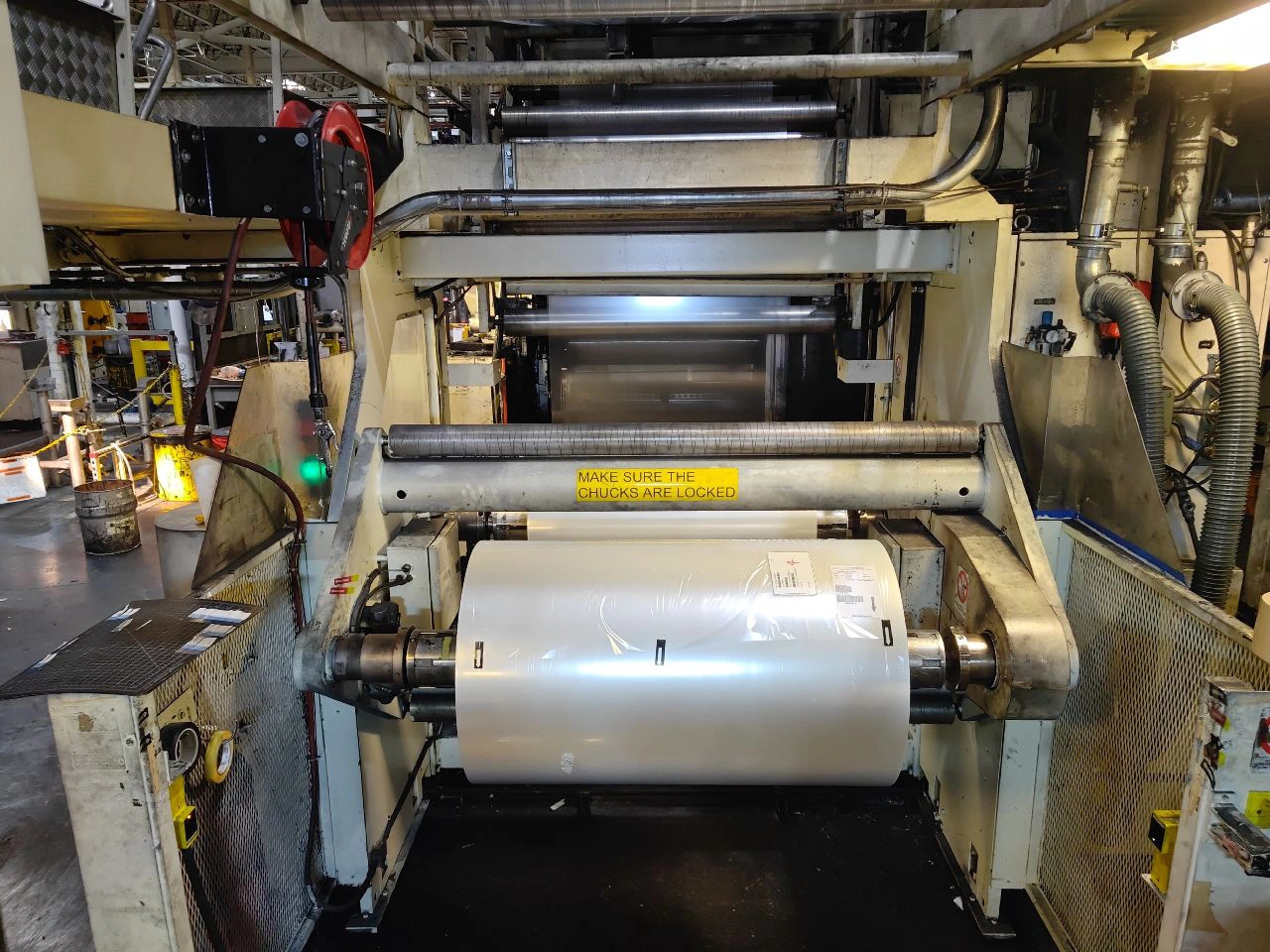

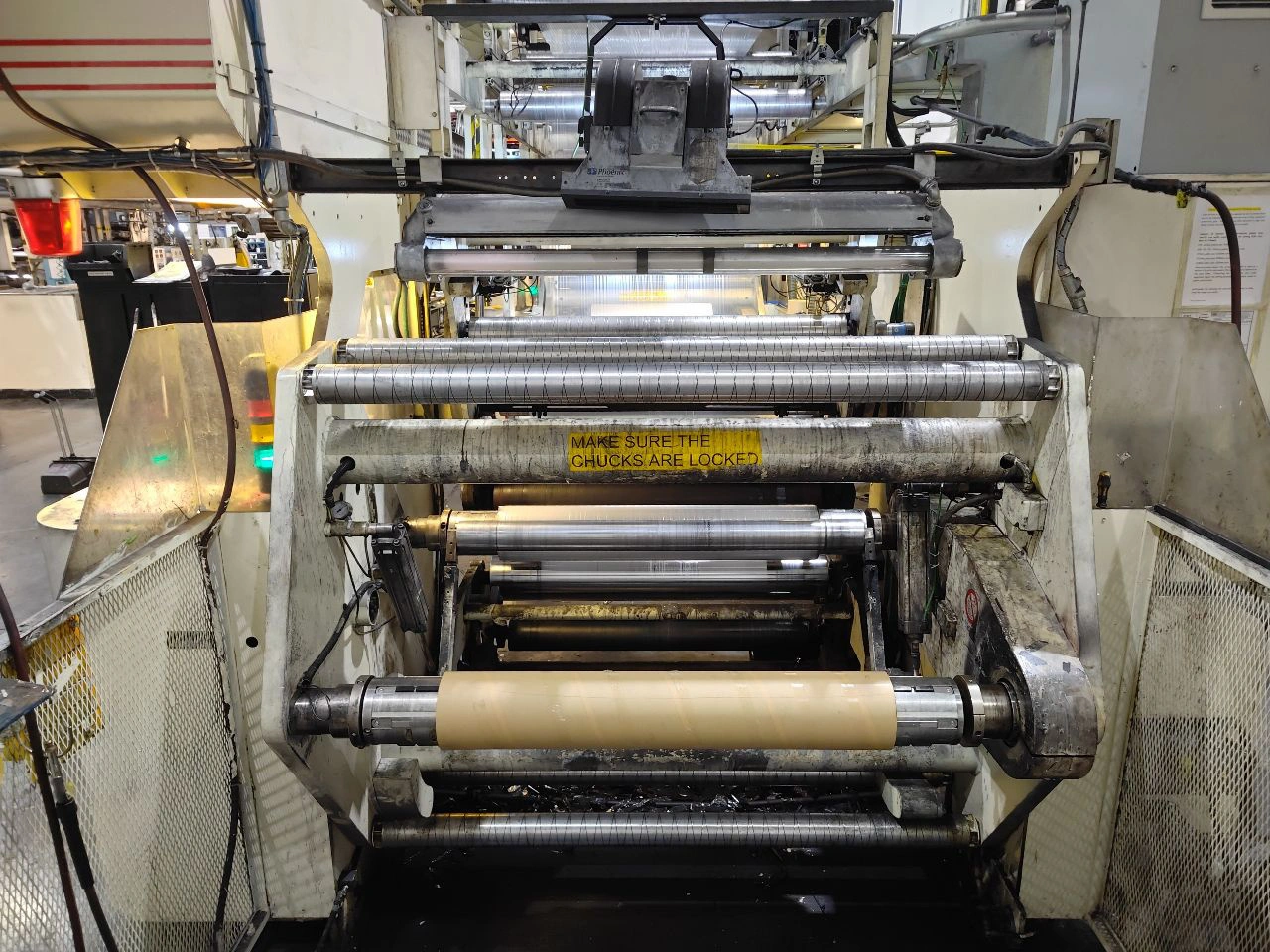

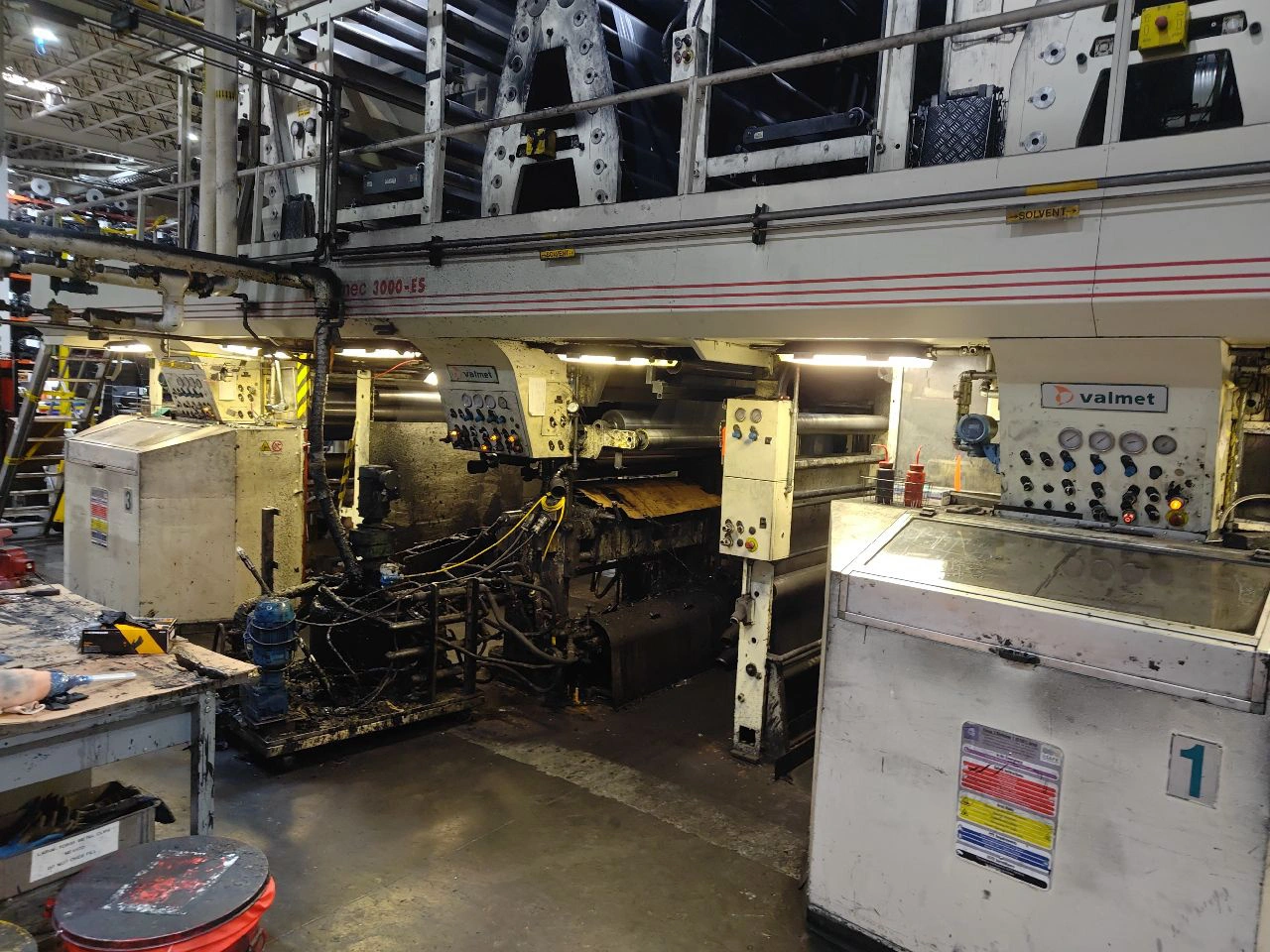

Rotomec Rotopak 3000-S/1200/400 Solvent and Water-Based Coating Line

Rotomec Rotopak 3000-S/1200/400 Solvent and Water-Based Coating Line

• — Year: 2002
• — Working width: 1,220 mm
• — Line speed: 525 m/min
• — Configuration: 3-station configuration (2 reversible, 1 hotmelt)
• — Drives: independent drives; Siemens drives
• — Unwinders: three automatic turret unwinders
• — Rewinder: automatic turret rewinder
• — Reel diameter capacity: up to 1,000 mm
• — Drying units: three double-hood drying units
• — Drying fans: one supply fan and one exhaust fan per unit
• — Drying heat source: steam
• — Controls: Factory Talk HMI on Windows 10; Siemens 6ES7414-2XJ01-0AB0 PLC on Profibus; dilution control
