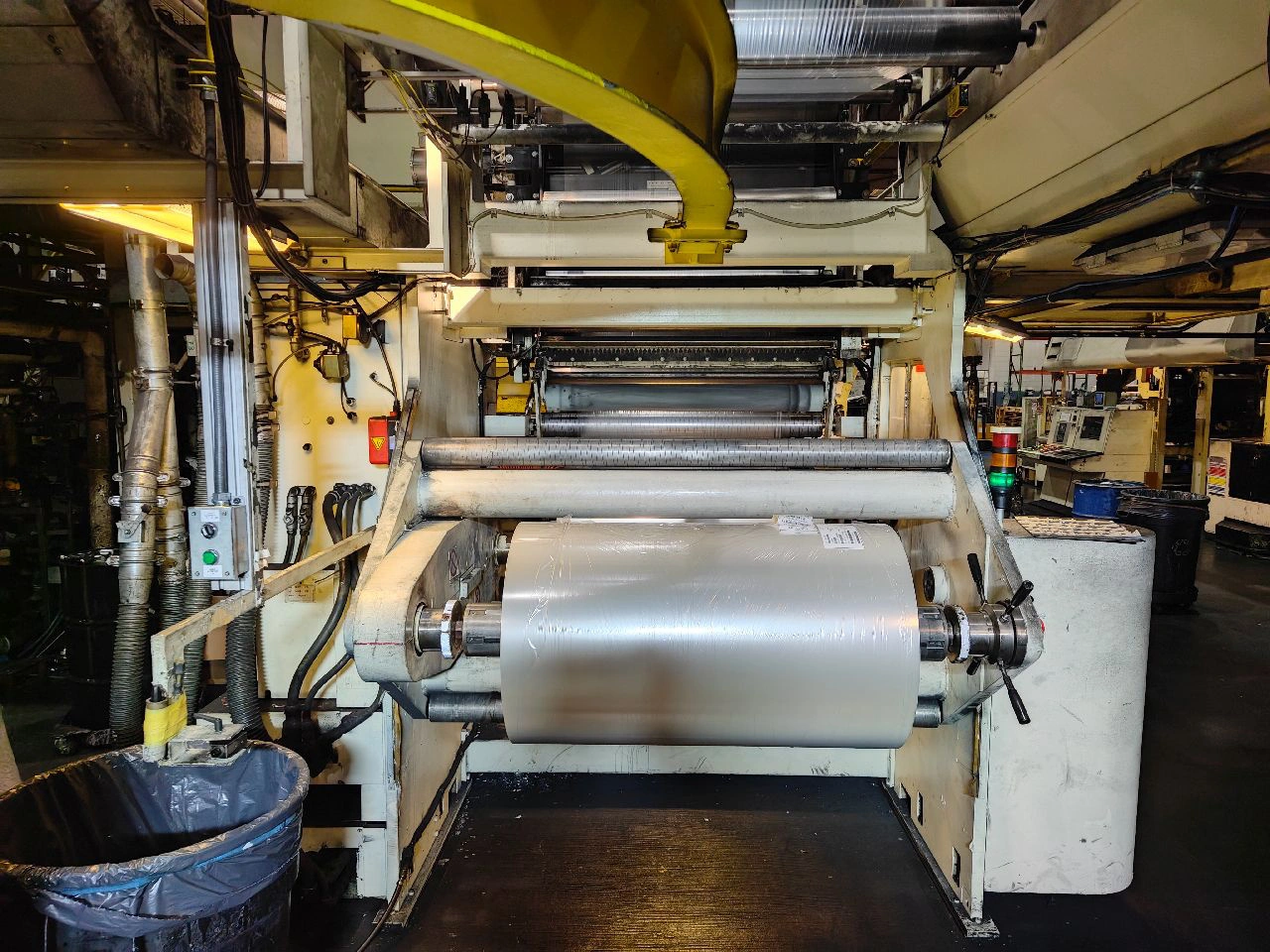

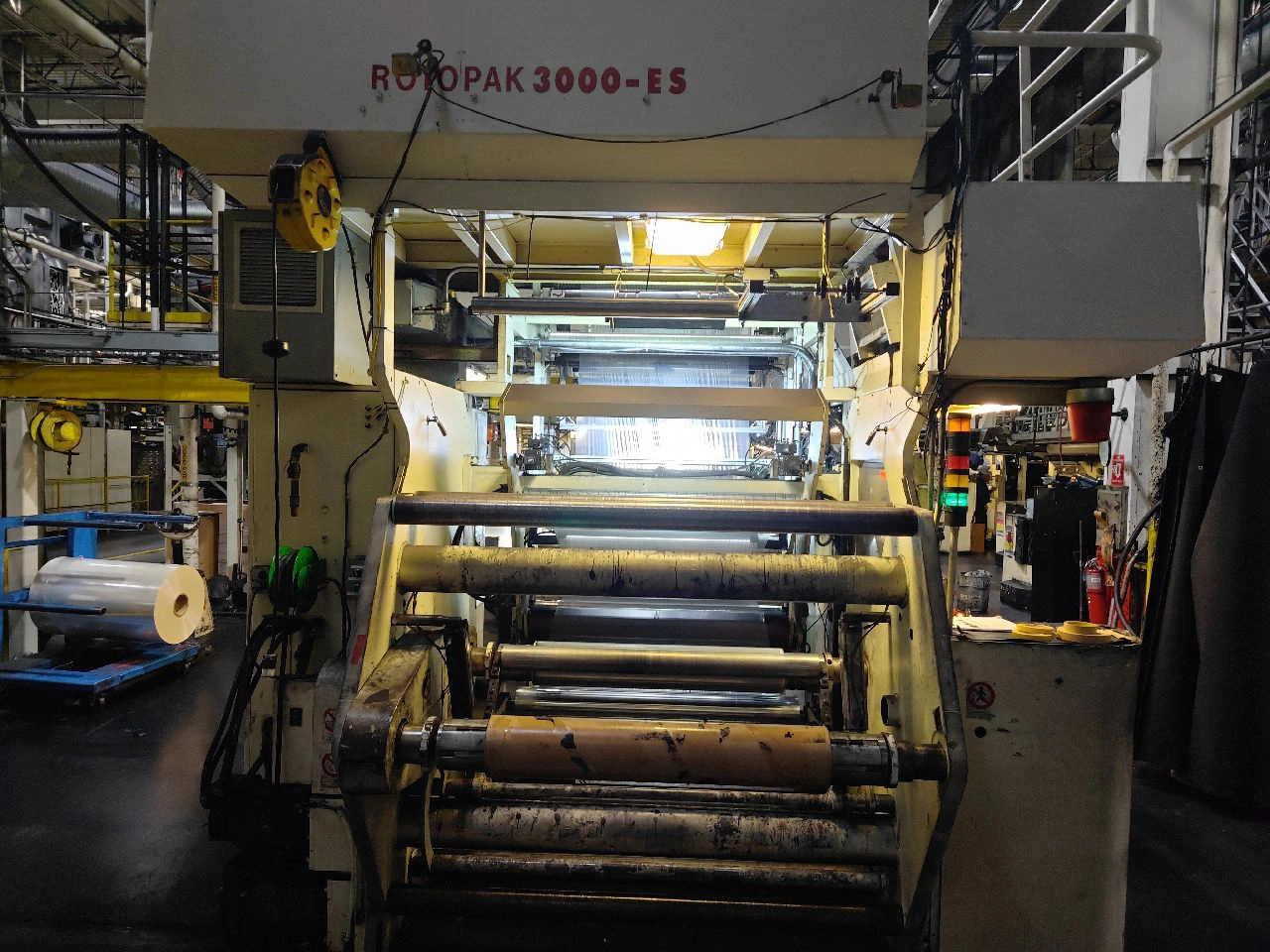

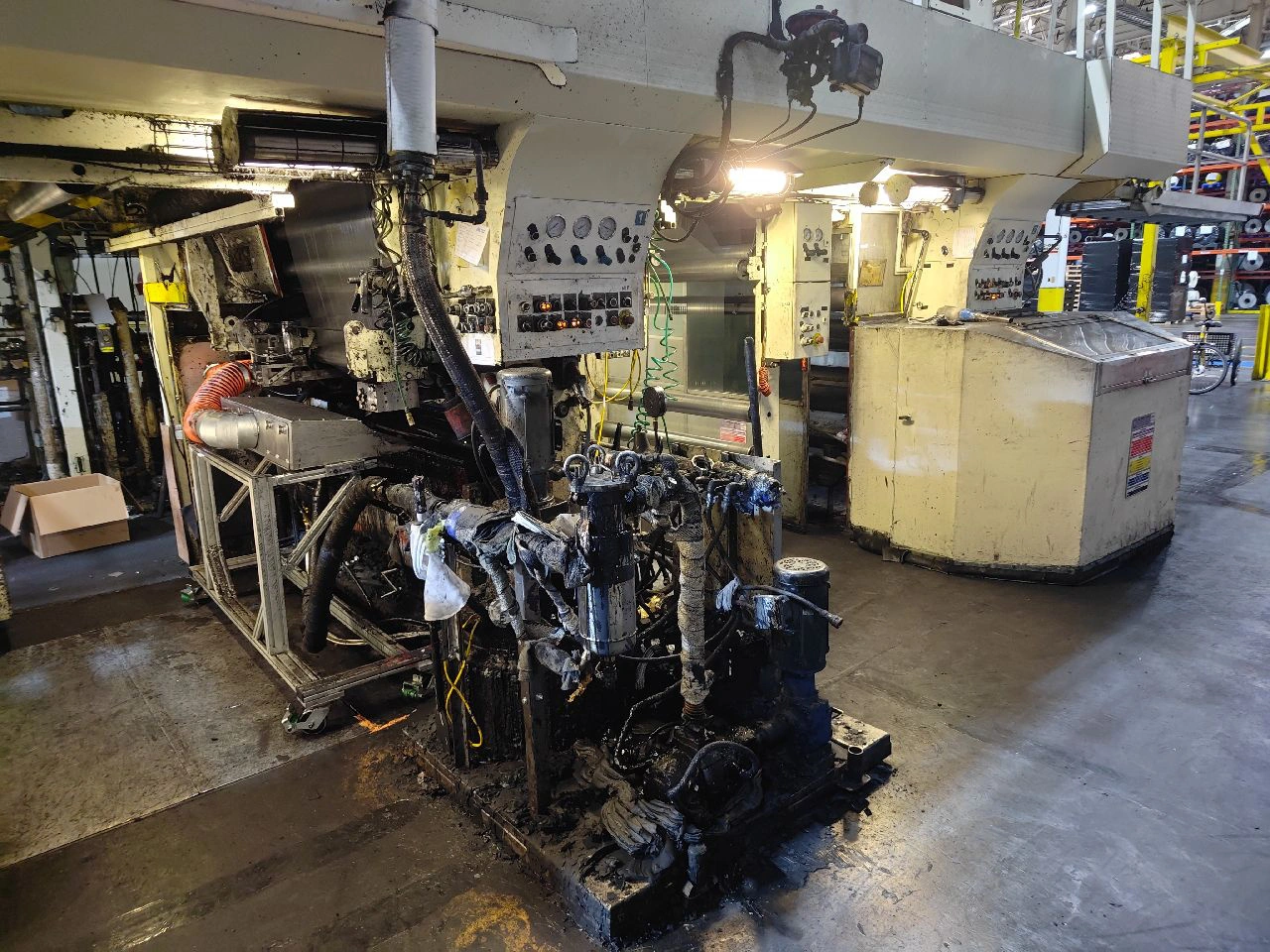

Rotomec Rotopak 3000-3ES/1200/300/C solvent and water-based coating line

Rotomec Rotopak 3000-3ES/1200/300/C Solvent and Water-Based Coating Line

• — Year: 1999
• — Working width: 1,220 mm
• — Line speed: 450 m/min
• — Configuration: 2-station configuration (1 reversible and hotmelt capable) with 2-station independent drive
• — Unwinders / rewinder: two automatic turret unwinders and an automatic turret rewinder
• — Reel diameter capacity: up to 1,000 mm
• — Drying units: both drying units are double hood
• — Drying fans: each drying unit has a dedicated exhaust fan and supply fan
• — Drying heat source: steam
• — Controls:
  • — Factory Talk HMI on Windows 10
  • — Siemens 6ES7414-2XJ01-0AB0 PLC on Profibus
  • — Siemens and Indramat/Rexroth drives
  • — Dilution control
