Used SML Coating Line Model LEH 1 -60 / 28 D

SML Lenzing 1500mm Extrusion Coating Line with LEH 1-60/28D Single-Screw Extruder

• — Product type: Extrusion coating line with single-screw extruder
• — Extruder: SML type LEH 1-60/28D single-screw extruder with 60mm nitrided steel screw and 28:1 L/D
• — Output capacity: Up to 180 kg/hr LDPE and 160 kg/hr PP
• — Line width: 1500mm extrusion coating width
• — Main drive: 57 kW main drive with water-cooled helical gearbox
• — Barrel heating: Three electric barrel heating zones totaling 25.2 kW with individual blower cooling
• — Adapters and melt control: Heated adapters with melt-pressure regulating valve
• — Melt-pressure monitoring: Dynisco digital melt-pressure monitoring with automatic drive shutdown at 420 bar
• — Extruder and die carriage:
  • — Motorized three-axis coordinate carriage
  • — Longitudinal travel: 3480mm
  • — Lateral adjustment: +/- 100mm
  • — Powered height adjustment for die positioning and maintenance access
• — Included line components:

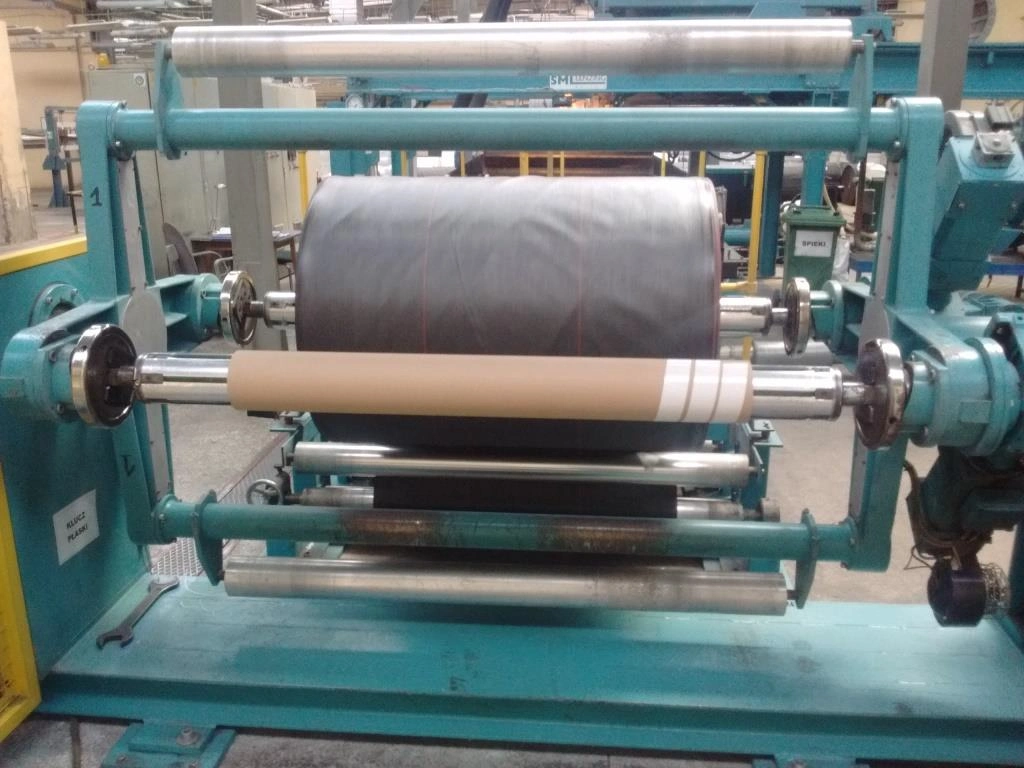

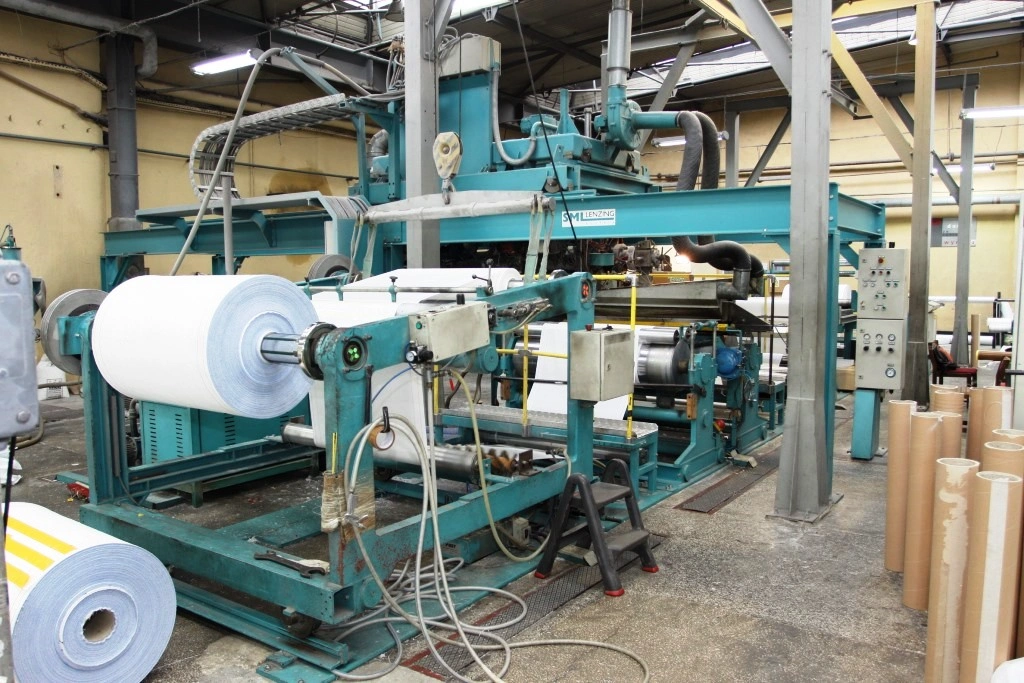

  • — Roll unwind

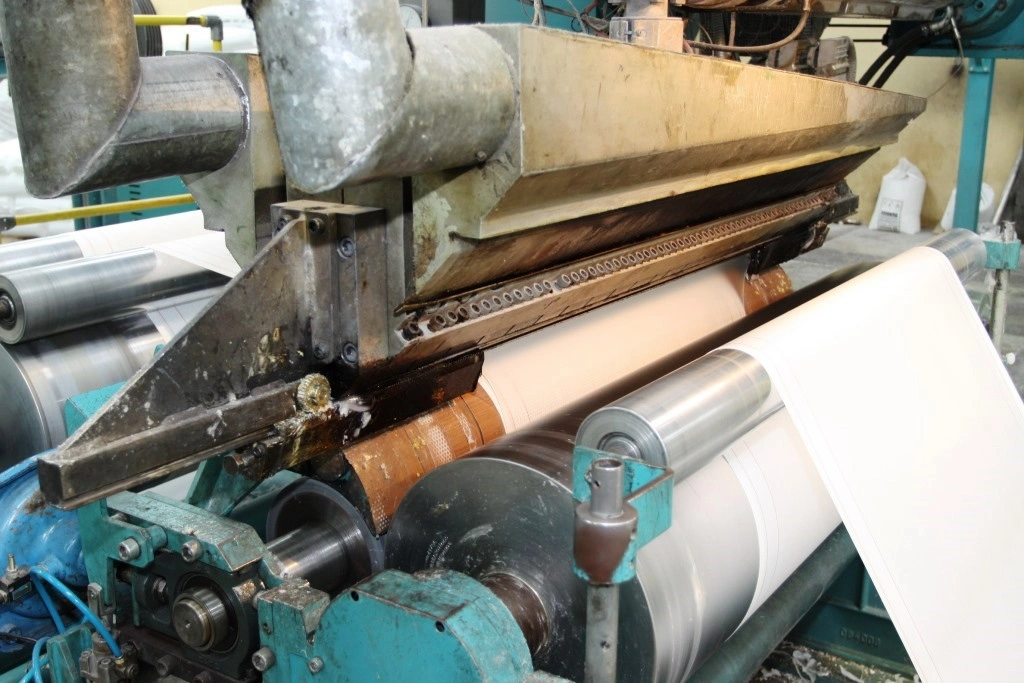

  • — Coating station with slot die
  • — Pressure/chill roll nip section
  • — Roll winder

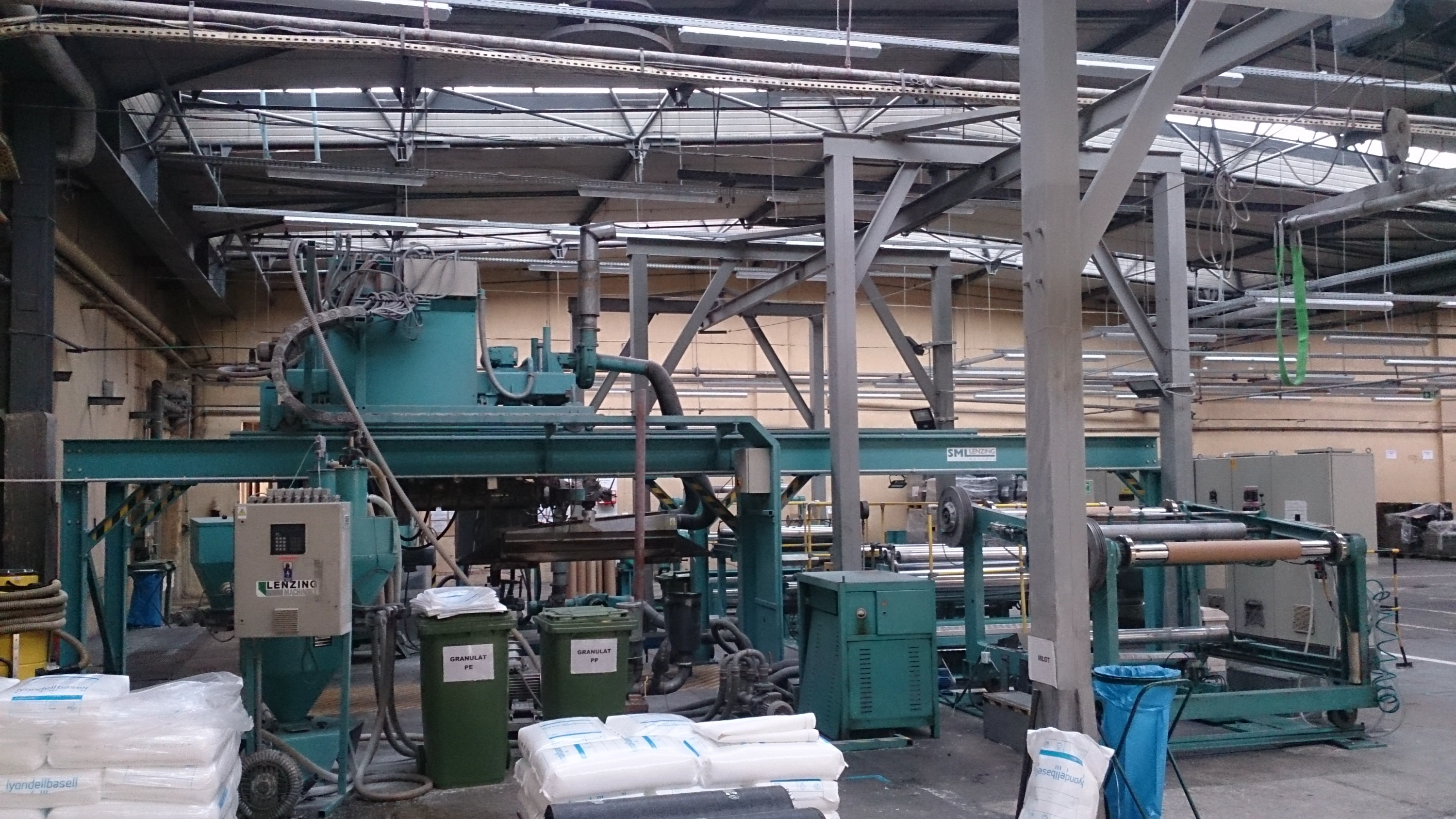

  • — Vacuum resin loading system with hoppers
  • — Edge-trim removal system
• — Electrical load: Total connected load 176 kW maximum; average consumption approximately 125 kW at full production
