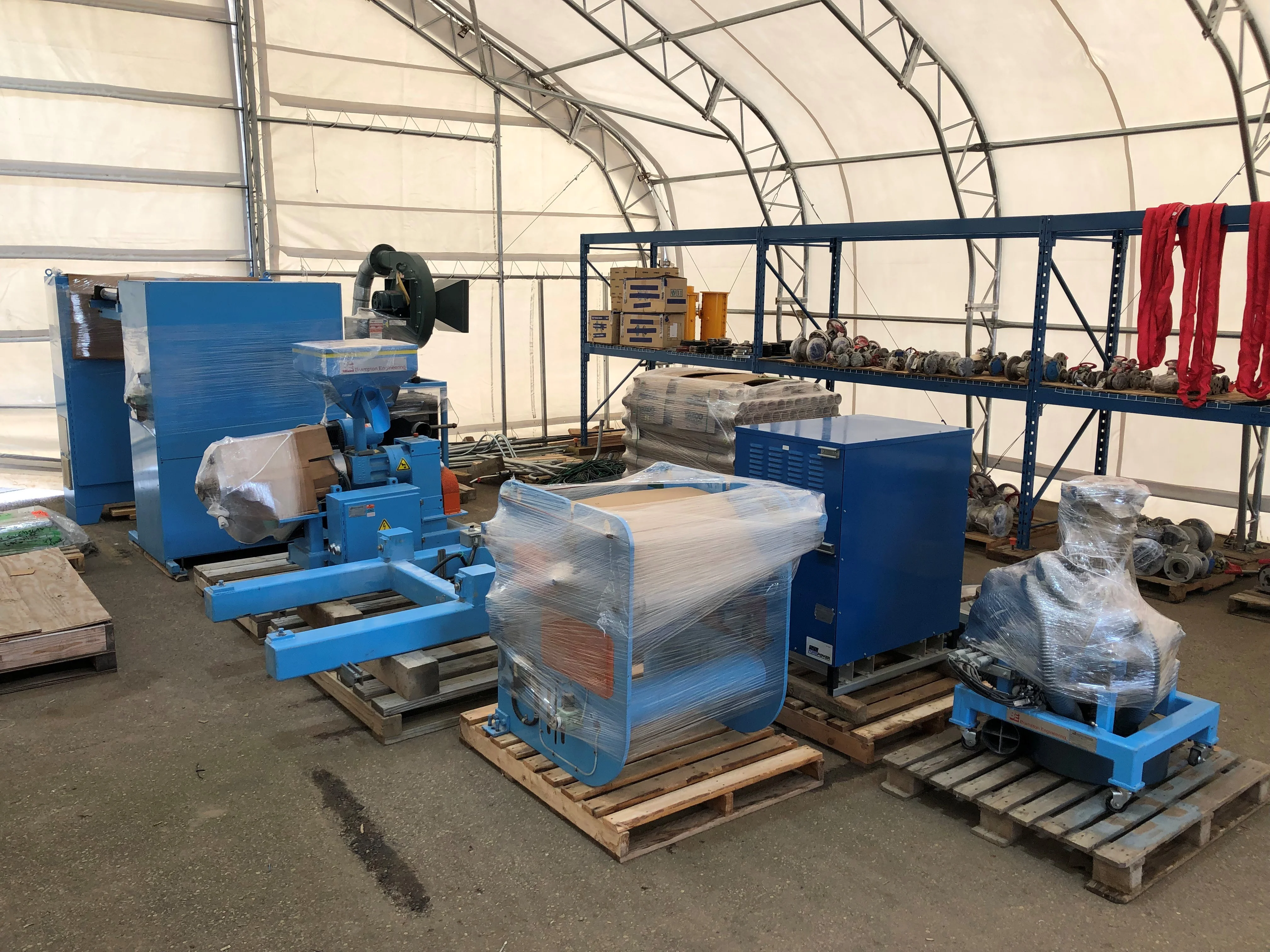

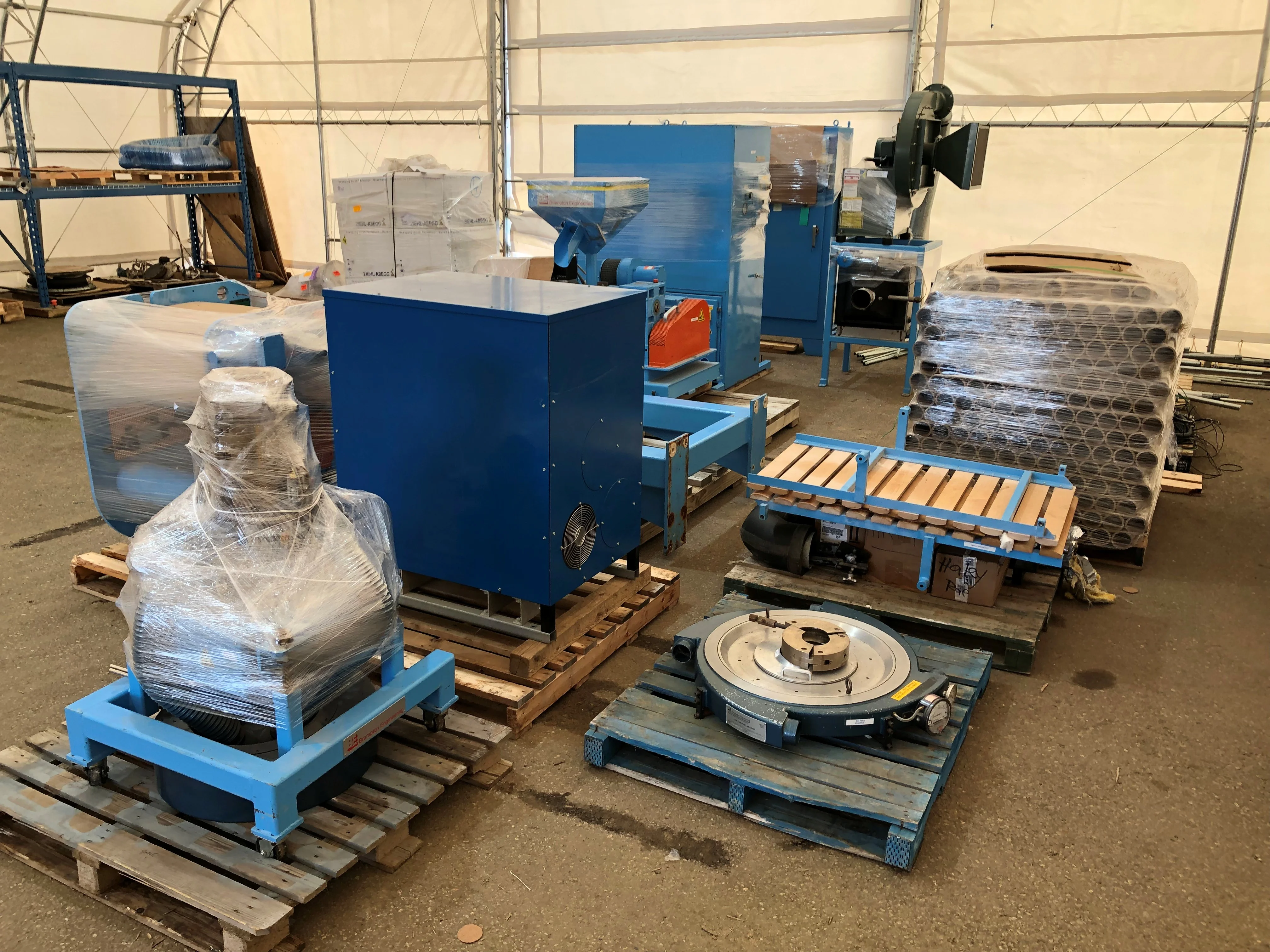

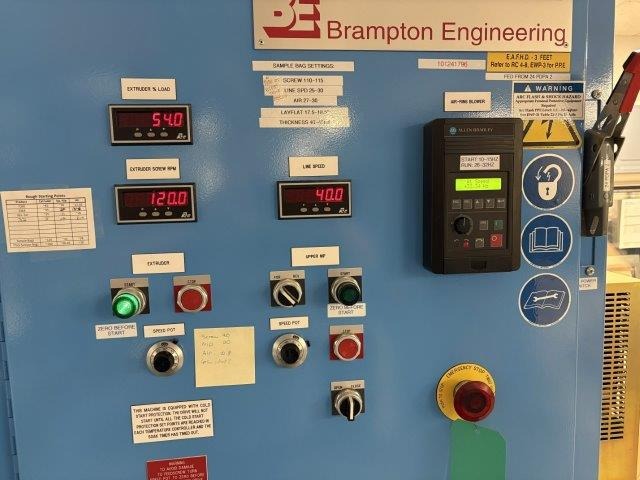

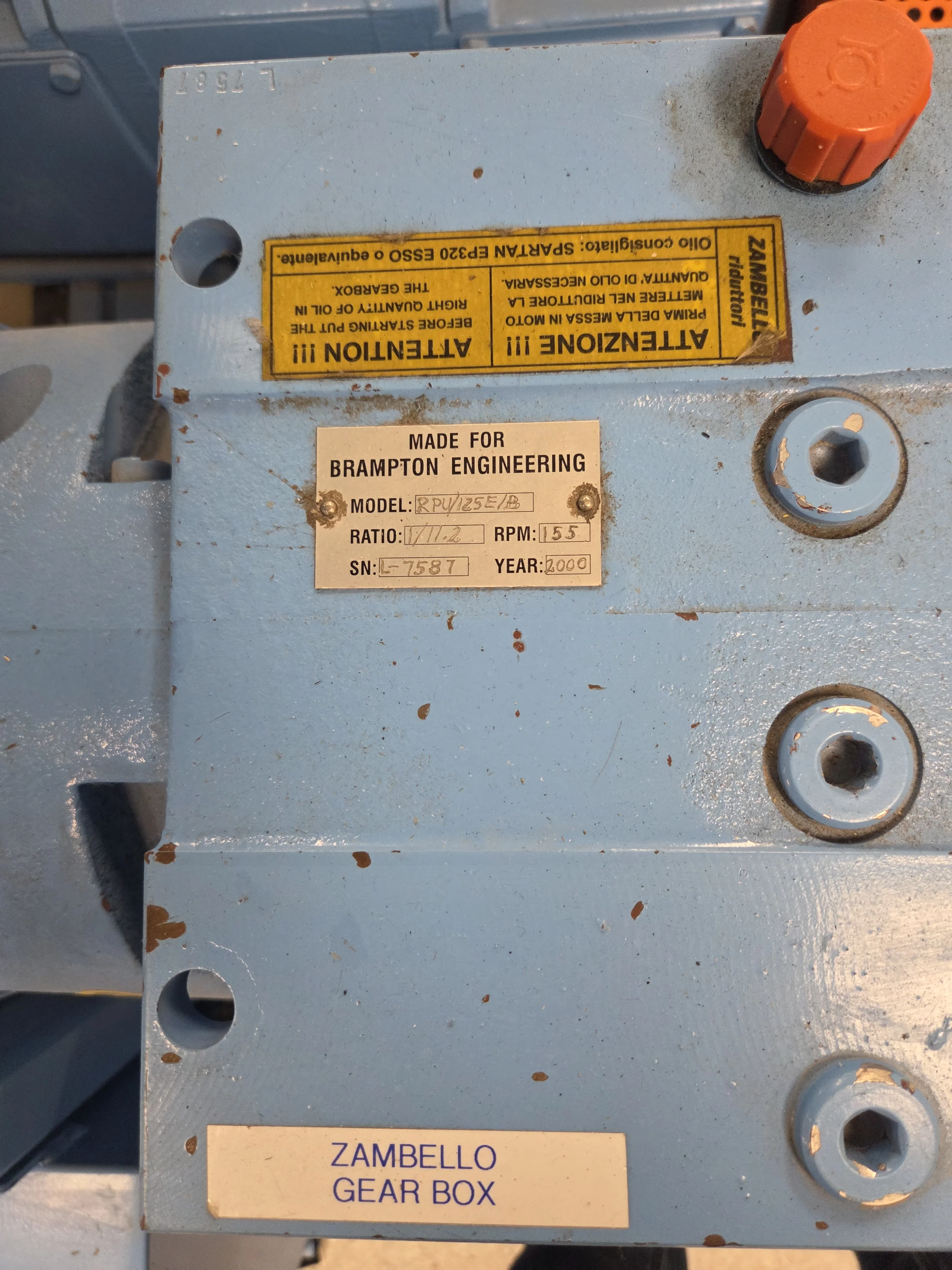

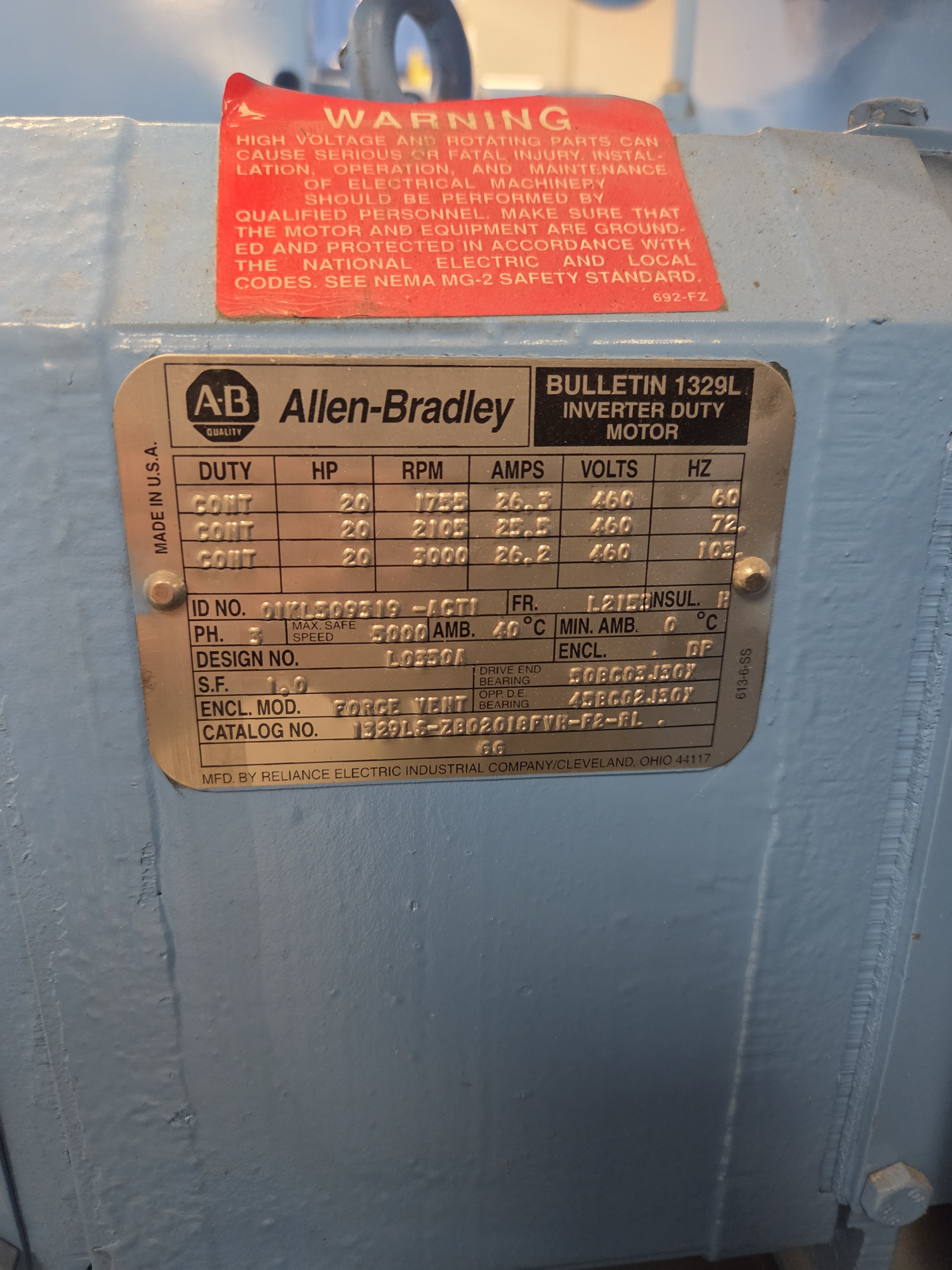

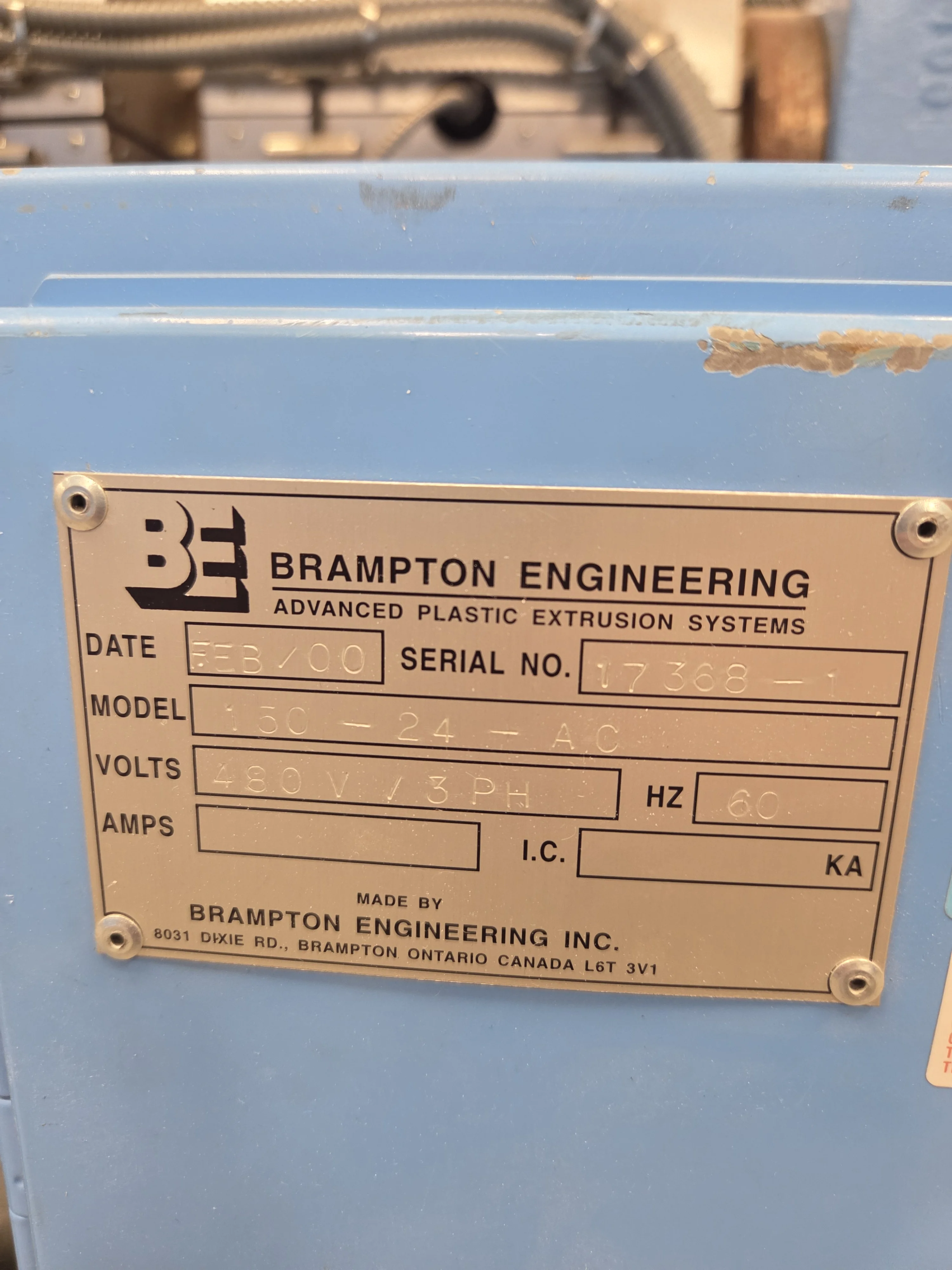

Brampton Engineering 150-24-ACE single layer blown film line, built Feb 2000, SN 17368-1. 1.5 in 24:1 extruder, 20 HP Allen-Bradley flux vector drive, 3 in spiral die, Uni-Flo dual lip air ring, tower, 24 in top nip, 24 in cantilever turret winder. Laboratory and pilot use. Disconnected and palletized, ready to ship. Operating video available.
Call or email with the reference number for pricing, availability, or additional photos and video. Inquiries are answered within one business day.
Brampton Engineering 150-24-ACE single layer blown film line, built Feb 2000, SN 17368-1. 1.5 in 24:1 extruder, 20 HP Allen-Bradley flux vector drive, 3 in spiral die, Uni-Flo dual lip air ring, tower, 24 in top nip, 24 in cantilever turret winder. Laboratory and pilot use. Disconnected and palletized, ready to ship. Operating video available.
